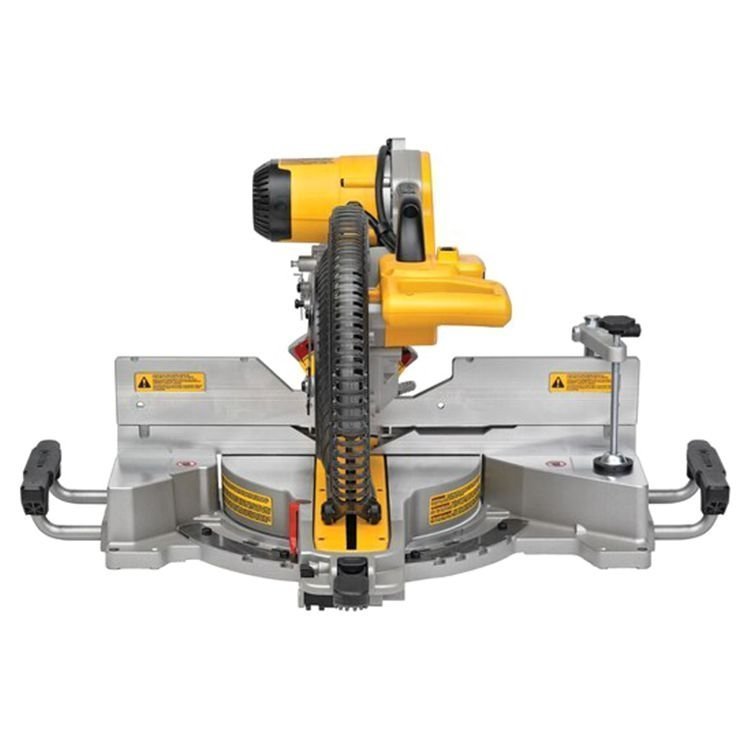

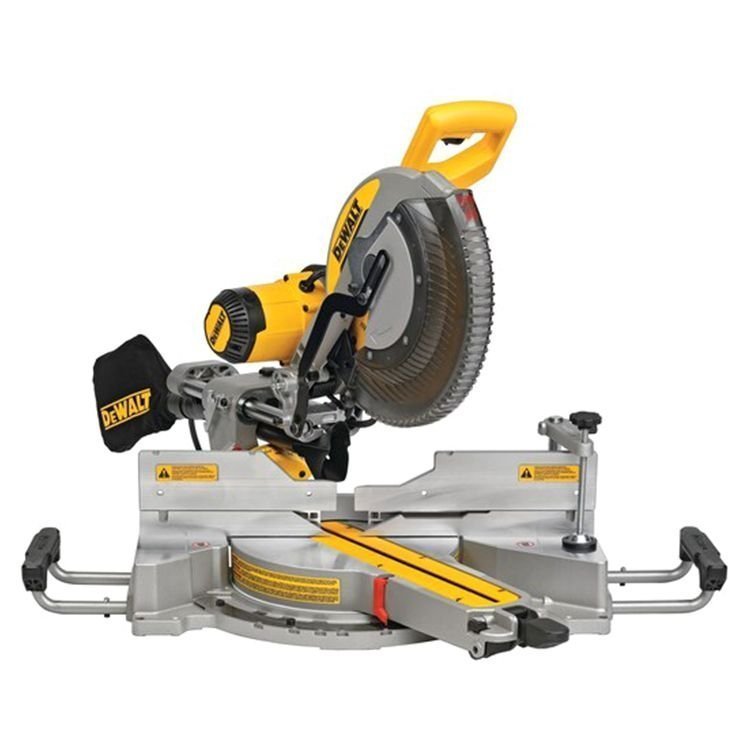

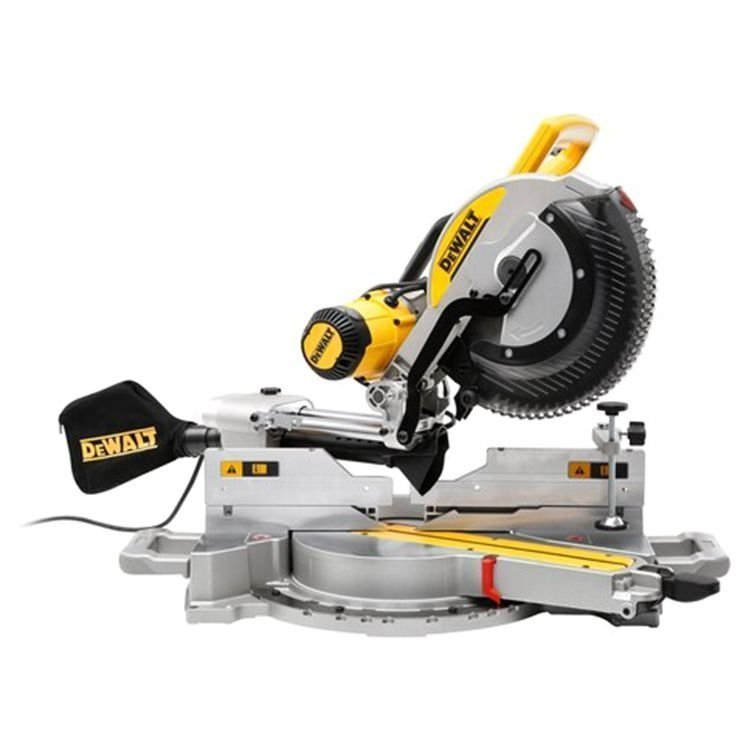

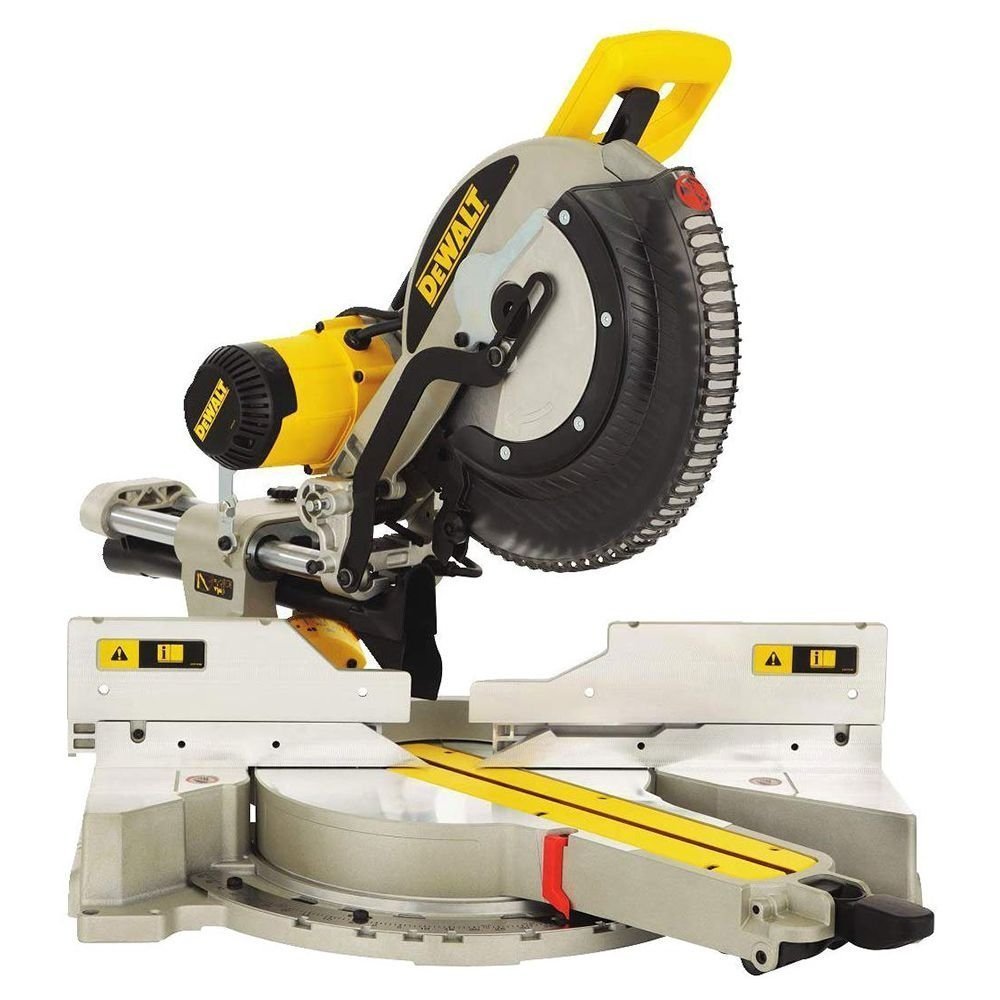

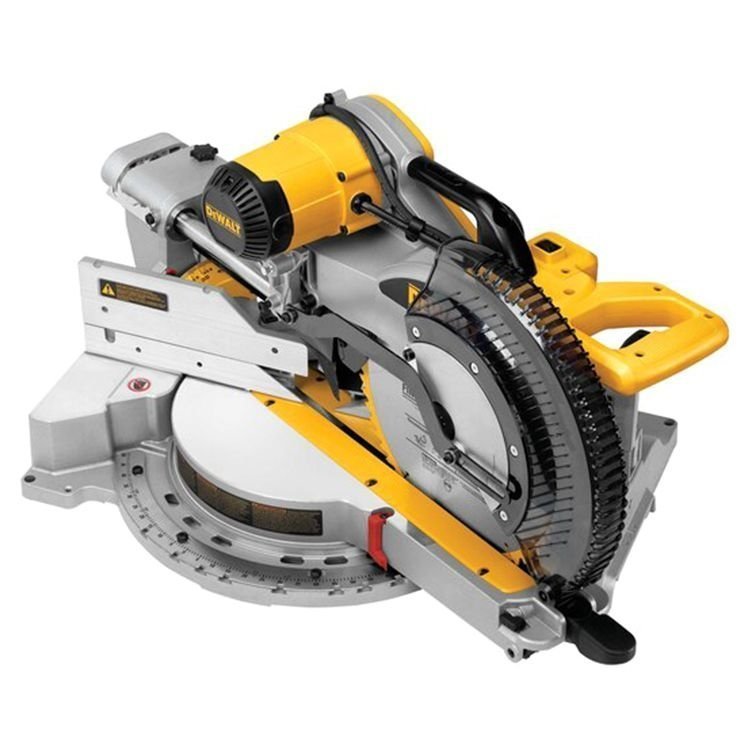

DEWALT 12-Inch Double-Bevel Sliding Compound Miter Saw

Powerful 15-Amp Performance, XPS Precision & High-Capacity Cutting

The DEWALT 12-Inch Double-Bevel Sliding Compound Miter Saw is built for demanding woodworking, trim, molding, stair-tread, and dimensional-lumber applications. Its powerful 15-amp motor, integrated XPS Crosscut Positioning System, tall sliding fences, and durable stainless-steel miter detent plate provide the power, accuracy, and versatility needed for professional cutting applications.

The saw features an exclusive back-fence design capable of cutting up to 2 x 14-inch dimensional lumber at 90°, while its 60° right and 50° left miter capacity provides increased flexibility for angled cuts. Dual horizontal steel rails with linear ball bearings deliver smooth, accurate movement in a compact design.

Key Features

Powerful 15-Amp Motor

• 15-amp motor delivers extended power and durability.
• Designed for heavy-duty cutting applications.
• Provides a no-load speed of up to 3,800 RPM.
• Suitable for demanding woodworking and construction tasks.

Integrated XPS Crosscut Positioning System

• Provides adjustment-free cut-line indication.
• Improves accuracy and visibility when positioning the blade.
• Helps users align the workpiece quickly and precisely.
• Integrated LED lighting illuminates the cutting area.

High-Capacity Cutting

The saw is designed to handle large dimensional lumber and molding applications.

• Cuts up to 2 x 14-inch lumber at 90° using the back fence.
• Cuts up to 2 x 10-inch material at 45°.
• Handles up to 7-1/2-inch nested crown molding.
• Handles up to 6-3/4-inch base molding vertically against the fence.
• Sliding fences move out of the way when making bevel cuts.

Increased Miter Capacity

• 60° miter capacity to the right
• 50° miter capacity to the left
• Stainless-steel miter detent plate provides durability and repeatable positioning.
• Cam-lock miter handle allows fast and accurate angle adjustments.
• Detent override provides additional control for custom miter angles.

Adjustable Stainless-Steel Miter Detent Plate

• Features 10 positive stops for common miter angles.
• Designed for repeatable accuracy and productivity.
• Durable stainless-steel construction helps withstand regular jobsite use.
• Cam-lock mechanism enables quick angle adjustment.

Dual Horizontal Steel Rails

• Dual steel rails provide stable sliding movement.
• Innovative clamping mechanism helps maintain workpiece positioning.
• Linear ball bearings provide smooth and accurate travel.
• Compact rail configuration contributes to the saw’s space-efficient design.

Tall Sliding Fences

• Tall fences support larger molding workpieces.
• Provide up to 7-1/2 inches of nested crown molding capacity.
• Provide up to 6-3/4 inches of vertical base molding capacity.
• Slide out of the way for bevel cutting applications.

Exclusive Back-Fence Design

• Supports cutting large dimensional lumber.
• Provides up to 2 x 14-inch cutting capacity at 90°.
• Expands the saw’s versatility for larger workpieces.

Efficient Dust Collection

• Super-efficient dust collection system captures over 75% of dust generated, according to the supplied manufacturer specification.
• Includes a dust bag.
• Dust collection helps maintain a cleaner cutting area.

Innovative Gearbox & Belt-Drive System

• Gearbox and belt-drive design helps increase vertical cutting capacity.
• Designed to provide efficient power transfer.
• Supports demanding cutting applications.

Large Bevel Scale

• Oversized bevel scale makes angle adjustments easier to read.
• Helps users make accurate bevel-angle settings.
• Provides convenient visual reference during setup.

Portable Design

• Compact design makes transportation and storage easier.
• Supplied specifications list the saw at approximately 56–58 lbs.
• Suitable for transporting between workshops and jobsites.

Specifications

Included Accessories

• 12-inch carbide blade
• Blade wrench
• Dust bag
• Vertical material clamp

Cutting Applications

The DEWALT 12-inch miter saw is designed for a wide range of cutting tasks, including:

• Stair tread cutting
• Crown molding
• Base molding
• Dimensional lumber
• 2x material
• Precision woodworking
• Crosscutting
• Compound miter cuts
• Bevel cuts
• Finish carpentry
• General construction applications

Precision & Control

The integrated XPS Crosscut Positioning System provides adjustment-free cut-line indication while illuminating the workpiece for improved visibility. Combined with the stainless-steel miter detent plate, cam-lock handle, detent override, and oversized bevel scale, the saw provides convenient control for both common and custom cutting angles.

Dust Management

The included dust bag and integrated dust collection system help capture sawdust during operation. The supplied specification states that the system captures over 75% of dust generated. For improved dust management, users can follow the manufacturer’s recommended extraction setup.

Safety Features

• Integrated electric brake helps stop the blade after the trigger is released.
• Vertical material clamp helps secure the workpiece during cutting.
• XPS system improves blade-position visibility.
• Sliding fences provide support for larger workpieces.
• Always use appropriate eye and hearing protection when operating the saw.
• Secure the workpiece properly before cutting.
• Keep hands away from the blade and cutting path.
• Disconnect power before blade changes or maintenance.
• Follow the manufacturer’s operating and safety instructions.

Warranty

The supplied specifications list a 3-year warranty.

Specification Notes

The supplied product information contains a few conflicting specifications:

• Weight: Listed as both 56 lbs. and 58 lbs. The difference may reflect different configurations or source listings.
• Motor wattage: Listed as both 1,100 W and 1,675 W, while the primary motor specification is 15 amps.
• Variable speed, water resistance, and LED/worklight specifications are included in the supplied listing data; users should verify these features against the exact model/SKU before purchase.

Why Choose This DEWALT Miter Saw?

• 12-inch double-bevel sliding compound design
• 15-amp heavy-duty motor
• 3,800 RPM no-load speed
• Integrated XPS crosscut positioning system
• 60° right / 50° left miter capacity
• 49° left / 49° right bevel capacity
• 7-1/2-inch crown molding capacity
• 6-3/4-inch vertical base molding capacity
• 2 x 14-inch 90° cutting capacity
• 10-position stainless-steel miter detent plate
• Cam-lock miter handle with detent override
• Dual horizontal steel rails with linear ball bearings
• Over 75% dust capture
• Electric brake
• LED worklight
• Vertical material clamp
• 12-inch carbide blade included
• 3-year warranty
