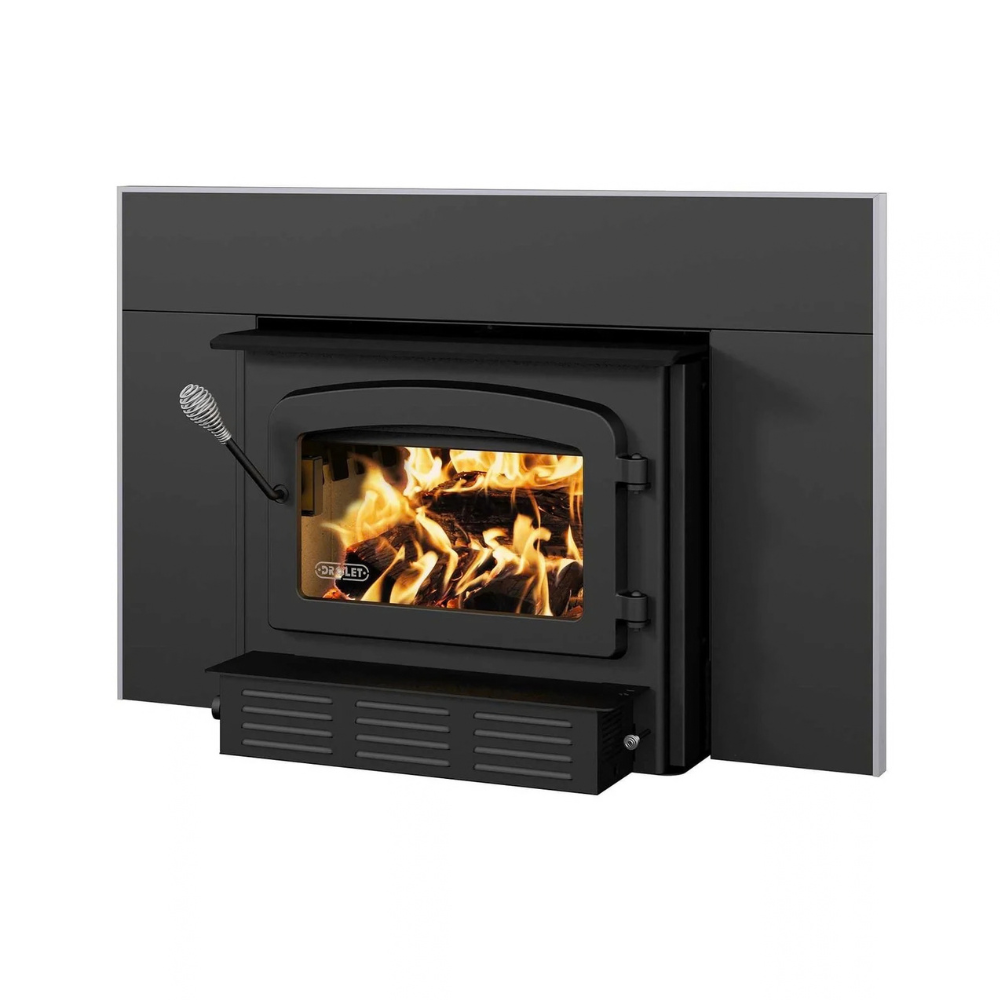

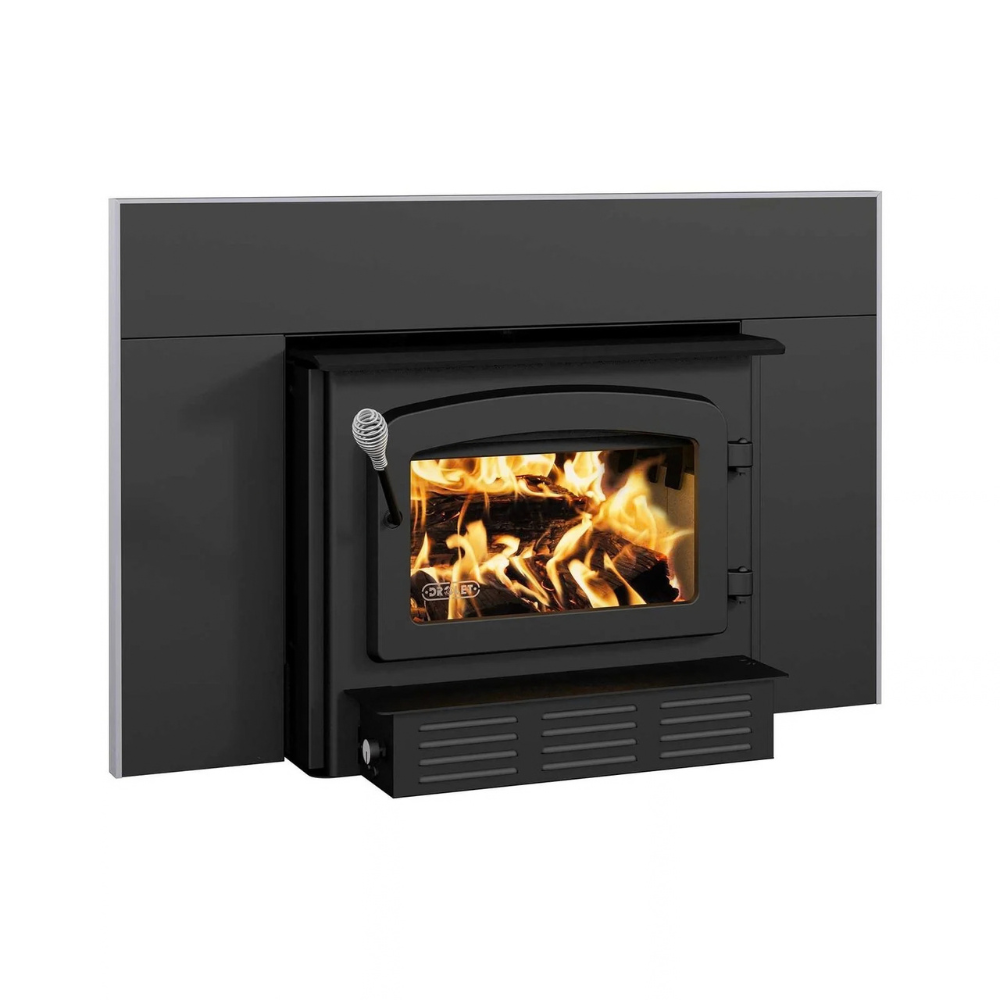

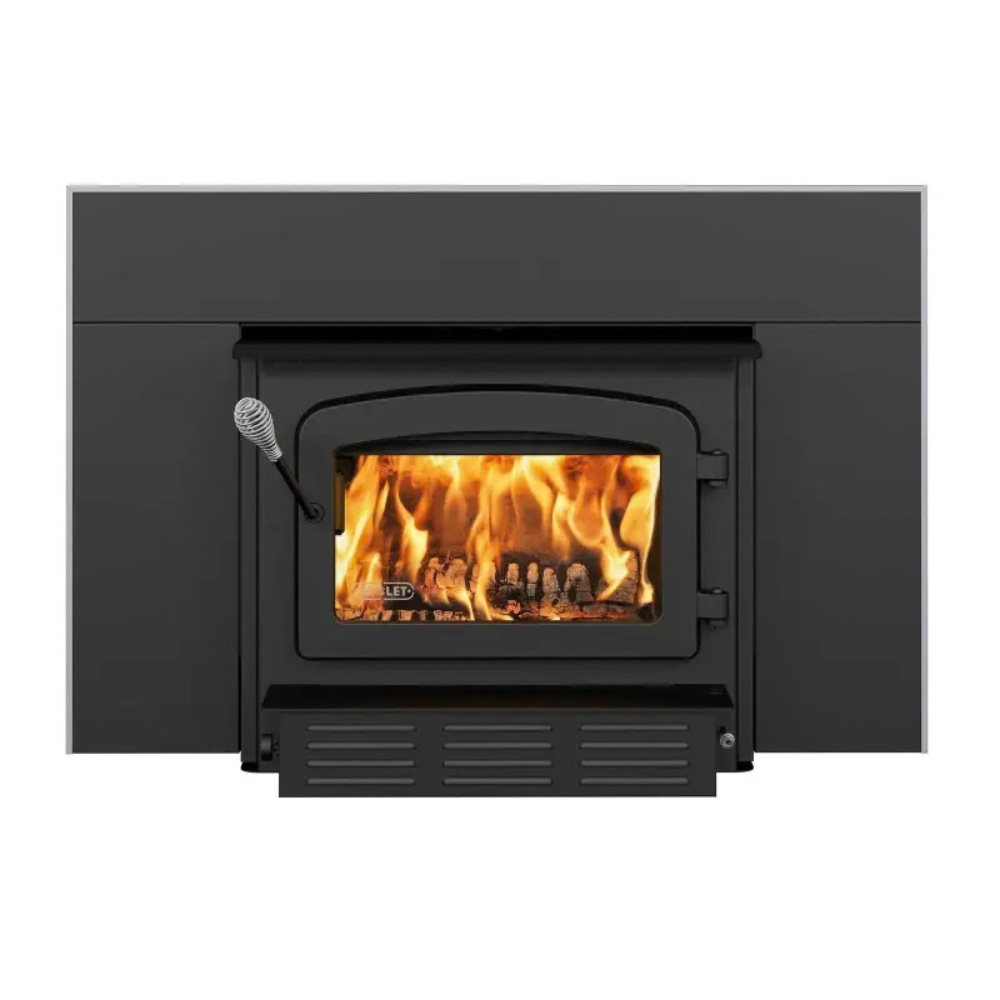

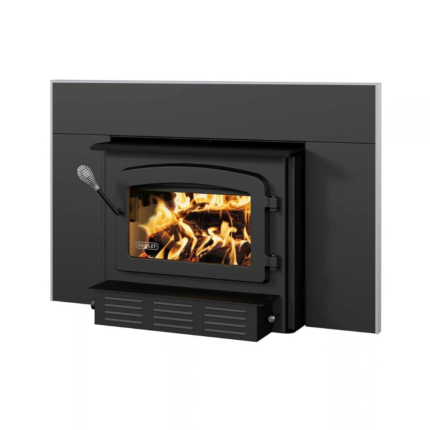

Escape 1800 Large Wood-Burning Fireplace Insert

High-Output Heating, Large 2.4 ft³ Firebox & EPA 2020-Certified Efficiency

The Escape 1800 is a versatile, high-performance wood-burning fireplace insert designed to bring efficient heating and renewed functionality to qualifying masonry fireplaces. Capable of heating approximately 500 to 2,100 ft² and producing up to 75,000 BTU/h (22.0 kW), this large non-catalytic insert is engineered for dependable residential wood heating.

With a generous 2.4 ft³ firebox, the Escape 1800 accommodates logs up to 20 inches and provides a burn time of up to 8 hours. Its robust 5/16-inch steel top, stainless-steel heat shield, refractory brick-lined firebox, vermiculite baffle, and ceramic glass viewing door are designed for durability and efficient operation.

The Escape 1800 includes a 144 CFM premium-quality blower, ceramic glass, ash lip, and air damper. A built-in glass airwash system helps maintain a cleaner view of the flames, while the non-catalytic combustion system achieves an average particulate emission rate of just 2.3 g/h.

Installation Note: The Escape 1800 is suitable for masonry fireplaces only. The required faceplate must be purchased separately.

Key Features

Powerful 75,000 BTU/h Heat Output

The Escape 1800 delivers a maximum heat output of 75,000 BTU/h (22.0 kW) when burning dry cordwood, making it suitable for substantial residential heating applications.

Large 2.4 ft³ Firebox

The spacious firebox provides an overall volume of 2.4 ft³ and an EPA loading volume of 1.95 ft³, accommodating logs up to 20 inches long.

Up to 8-Hour Burn Time

A maximum burn time of up to 8 hours provides extended heating between reloads, although actual burn duration varies according to fuel, chimney draft, climate, installation, and operating conditions.

Non-Catalytic Combustion

The Escape 1800 uses a non-catalytic combustion system with a stainless-steel secondary-air system to support efficient wood combustion.

EPA 2020 Approved

This high-efficiency appliance is EPA 2020 approved and achieves an average particulate emission rate of 2.3 g/h.

High Efficiency

The appliance provides an average overall efficiency of 72% HHV and 77% LHV, with an optimum efficiency rating of 79%.

Robust Steel Construction

The insert features a durable 3/16-inch steel body and 5/16-inch steel top reinforced with a stainless-steel heat shield for demanding wood-burning operation.

Ceramic Glass Door

A single ceramic-glass door with a cast-iron frame provides a durable viewing area measuring 16 × 9 1/4 inches.

Glass Airwash System

The integrated glass airwash system helps reduce buildup on the viewing glass for a clearer view of the flames.

Refractory Brick-Lined Firebox

The firebox is lined with refractory bricks to provide enhanced durability and heat resistance.

High-Quality Vermiculite Baffle

The high-quality vermiculite baffle is designed to withstand elevated temperatures while supporting the appliance’s combustion and heat-management system.

Premium 144 CFM Blower Included

A 144 CFM premium-quality blower is included to help circulate heated air into the surrounding space.

Complete Essential Accessories Included

The Escape 1800 includes:

• Premium 144 CFM blower
• Ceramic glass
• Ash lip
• Air damper

Made in Canada and the USA

The Escape 1800 is proudly manufactured in Canada and the USA.

Performance Specifications

Firebox & Construction

Dimensions & Weight

Flue & Chimney Requirements

Fireplace Opening Requirements

Important: The Escape 1800 is designed for masonry fireplace installations only. Verify the existing fireplace opening and chimney configuration against the manufacturer’s installation requirements before installation.

Clearances to Combustibles

* Always follow the manufacturer’s installation instructions and applicable local building and fire codes.

Certifications & Safety

Warranty

Limited Lifetime Warranty

The Escape 1800 is backed by a limited lifetime warranty, subject to the manufacturer’s warranty terms and conditions.

Important Installation & Performance Notes

The Escape 1800 is intended specifically for masonry fireplaces. The faceplate must be purchased separately.

Performance figures are based on standardized fuel-loading and testing conditions. Actual heating area, heat output, efficiency, and burn time may vary depending on chimney draft, fireplace installation, home construction, insulation, climate, fuel type, moisture content, and other operating conditions.

For safe and compliant installation, use the specified 6-inch chimney liner, meet the minimum chimney height and fireplace opening requirements, and follow all applicable installation instructions and local codes.

Recommended Applications

The Escape 1800 is well suited for:

• Masonry fireplace upgrades
• Residential supplemental heating
• Living rooms and family rooms
• Heating areas up to approximately 2,100 ft²
• Wood-burning fireplace renovations
• Cold-weather residential heating
• Efficient cordwood heating
• Homeowners seeking extended burn times
• High-efficiency EPA-certified wood heating

Why Choose the Escape 1800?

The Escape 1800 combines a large 2.4 ft³ firebox, 75,000 BTU/h maximum heat output, up to 8 hours of burn time, EPA 2020 certification, and a low 2.3 g/h particulate emission rate in a durable masonry-fireplace insert. With its stainless-steel secondary-air system, ceramic glass airwash, refractory brick-lined firebox, vermiculite baffle, and included 144 CFM blower, it is engineered for efficient, dependable wood-burning performance while providing an attractive upgrade for qualifying masonry fireplaces.
