Frigidaire 24-Inch Built-In Dishwasher with OrbitClean®, DishSense®, MaxDry™ & 42 dBA Quiet Operation

Smart Cleaning, Enhanced Drying & Ultra-Quiet Performance

Upgrade your kitchen with a Frigidaire built-in dishwasher designed for powerful cleaning, flexible loading, enhanced drying, and remarkably quiet operation. DishSense® Sensor Technology automatically adjusts cleaning performance based on the soil level of your dishes, while the OrbitClean® Wash System uses a rotating wash arm with multi-directional spray patterns to provide broad water coverage without using more water.

Operating at an ultra-quiet 42 dBA, this dishwasher is insulated to minimize noise while you watch TV, work, or enjoy conversation. The MaxDry™ option raises drying temperatures for enhanced results, while the NSF-Certified Sanitize option helps remove 99.9% of common household bacteria.

With space for up to 14 place settings, adjustable and removable racks, a 34-minute Quick Wash, Smudge-Proof® Stainless Steel finish, convenient floor-status lighting, and ENERGY STAR® 7.0 certification, this dishwasher is built for efficient everyday performance.

Key Features

DishSense® Sensor Technology

DishSense® technology monitors soil levels and adjusts cleaning performance accordingly, helping deliver better results while adapting each cycle to the needs of the load.

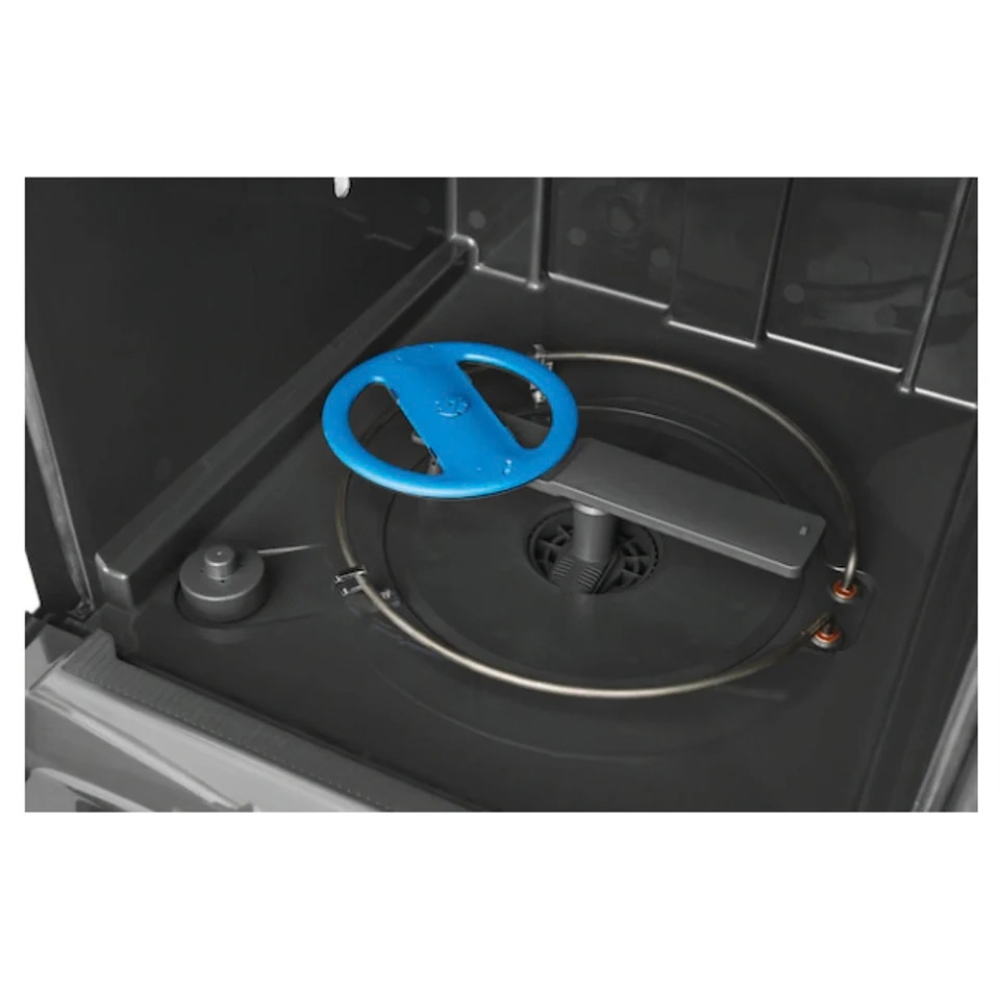

OrbitClean® Wash System

The OrbitClean® system uses a rotating wash arm with multi-directional spray patterns to provide maximum coverage throughout the dishwasher without using additional water.

Ultra-Quiet 42 dBA Operation

At just 42 dBA, the dishwasher is designed for exceptionally quiet operation. Extra insulation helps reduce operating noise so you can watch TV or have a conversation while the dishwasher runs.

MaxDry™ Option

The MaxDry™ option enhances drying by raising the temperature during the drying process, helping reduce the need for towel drying.

NSF-Certified Sanitize Option

The Sanitize option is NSF certified and designed to remove 99.9% of common household bacteria.

ENERGY STAR® 7.0 Certified

Certified to ENERGY STAR® 7.0 water and energy consumption standards, helping support efficient everyday operation.

Cleaning Performance

• DishSense® Sensor Technology
• OrbitClean® Wash System
• Rotating lower spray arm
• Bi-Beam middle spray arm
• Blade upper spray arm
• 5 wash levels
• Smart Soil Sensor
• Direct-feed wash system
• 100% filtered water
• Stainless steel filter
• Removable filter trap
• Hard food disposer or filtration system
• High-temperature washing
• Normal-temperature washing
• Sanitize-temperature washing
• Automatic cleaning performance adjustment

Wash Cycles

This dishwasher provides 8 cycles for different cleaning needs:

34-Minute Quick Wash

The Quick Wash cycle cleans dishes in approximately 34 minutes, providing a convenient option when you need clean dishes quickly.

Drying System

MaxDry™ Enhanced Drying

The MaxDry™ option raises the drying temperature to provide enhanced drying performance and help reduce the need for towel drying.

• Air Dry
• Heat Dry
• MaxDry™ option
• High-temperature drying performance
• Temperature-enhanced drying
• Designed to reduce residual moisture

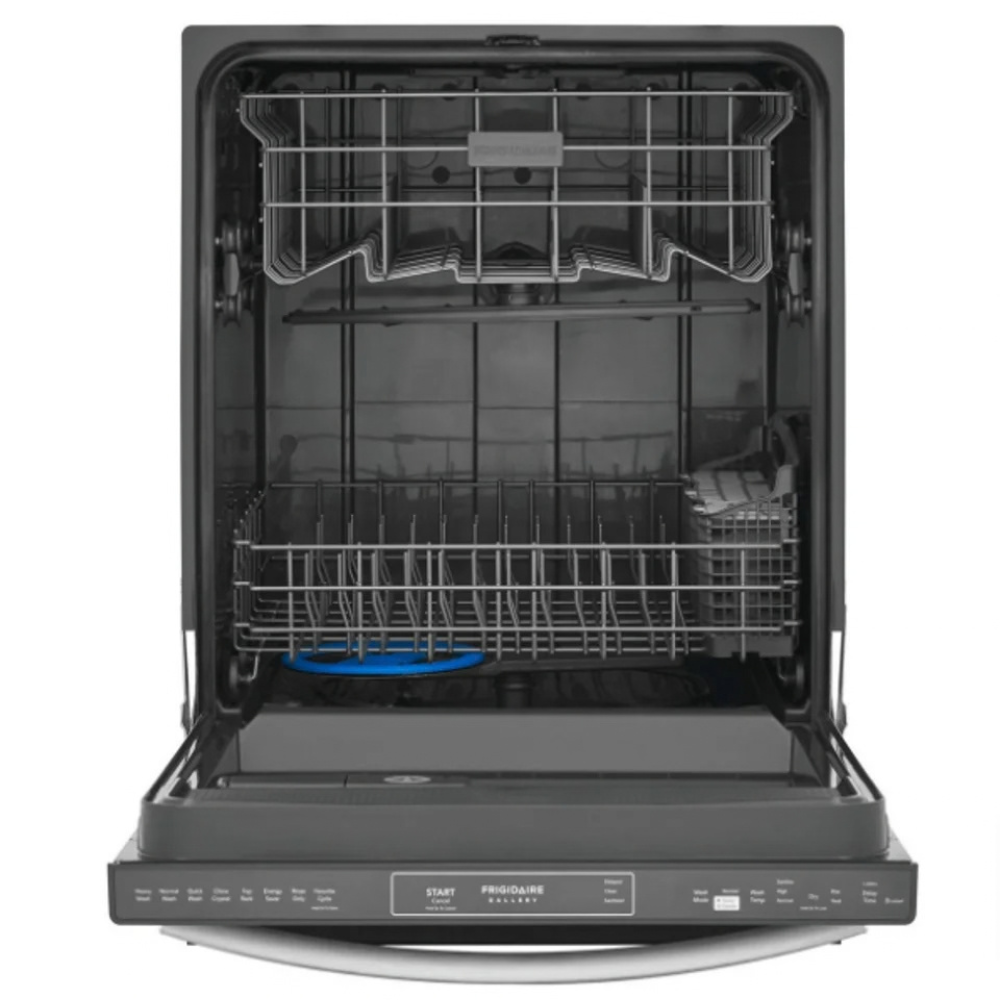

Flexible Rack System

Adjustable & Removable Racks

Adjustable and removable racks make it easier to configure the dishwasher for different dish sizes and larger cookware.

• Adjustable racks
• Removable racks
• Upper rack
• Standard rack system
• PVC rack coating
• Rack spacer
• Standard rack type

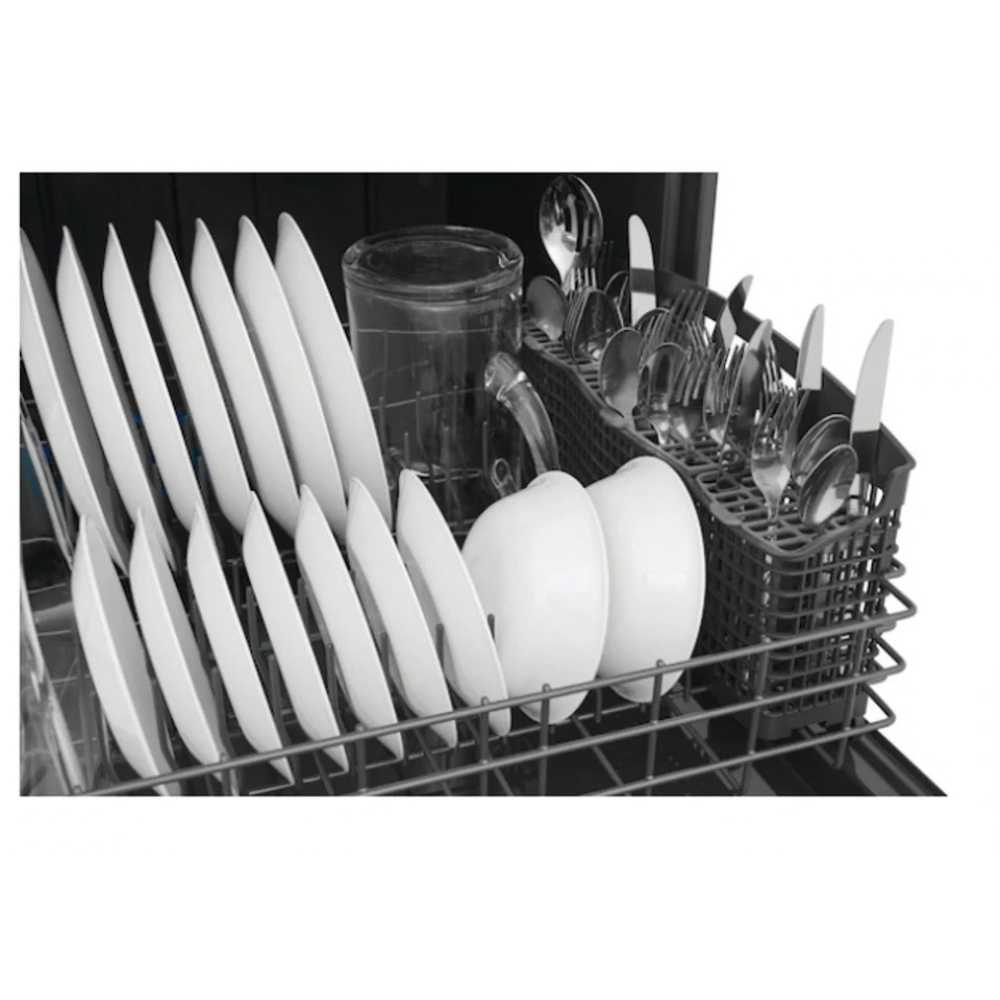

• 1 silverware basket
• 2 silverware basket lids
• Rinse-aid dispenser with indicator

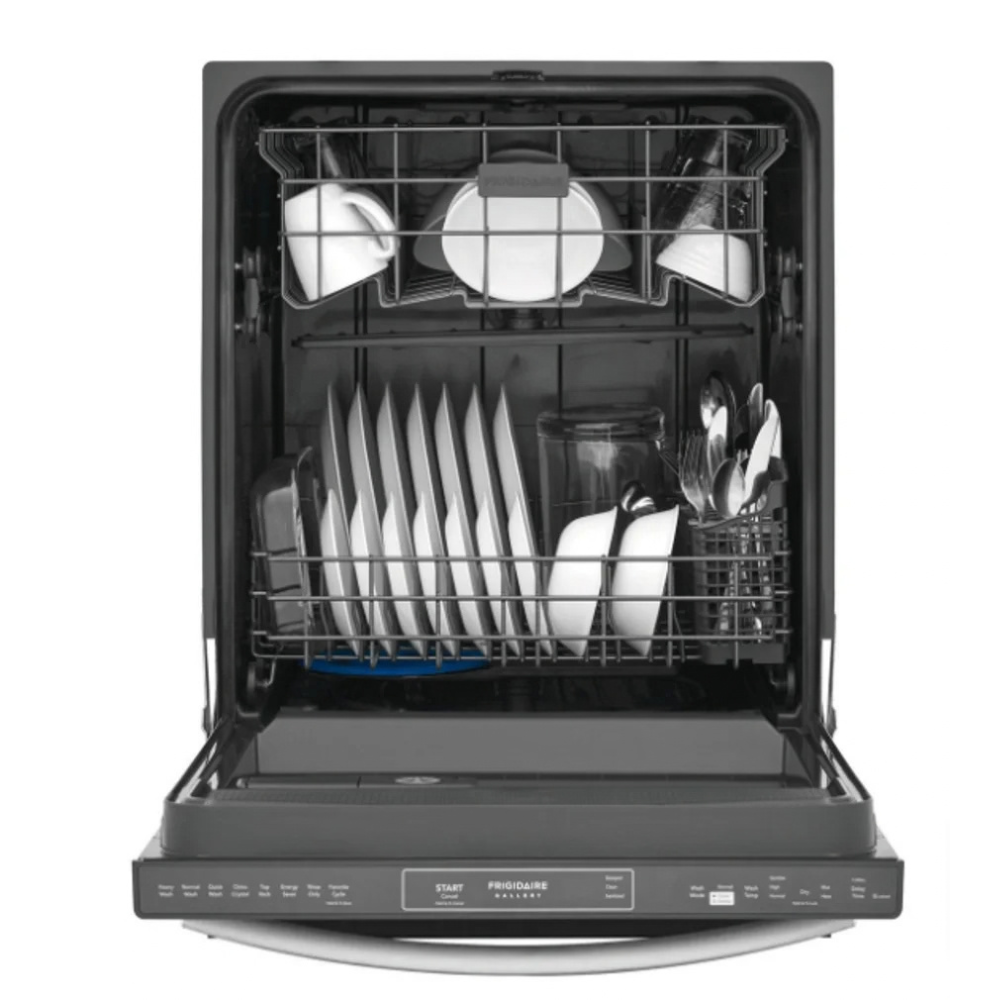

14-Place-Setting Capacity

The dishwasher accommodates up to 14 place settings in a single cycle, providing ample capacity for everyday family meals and larger loads.

Convenient Features

Floor Status Indicator

A convenient LED floor light provides an easy visual indication of the dishwasher’s current status:

• Blue: Dishwasher is running
• Green: Cycle is finished

Stay-Put Door

The Stay-Put door remains at the angle where you open it, making loading and unloading easier and more convenient.

24-Hour Delay Start

Schedule the dishwasher around your routine with a 1–24 hour delay start.

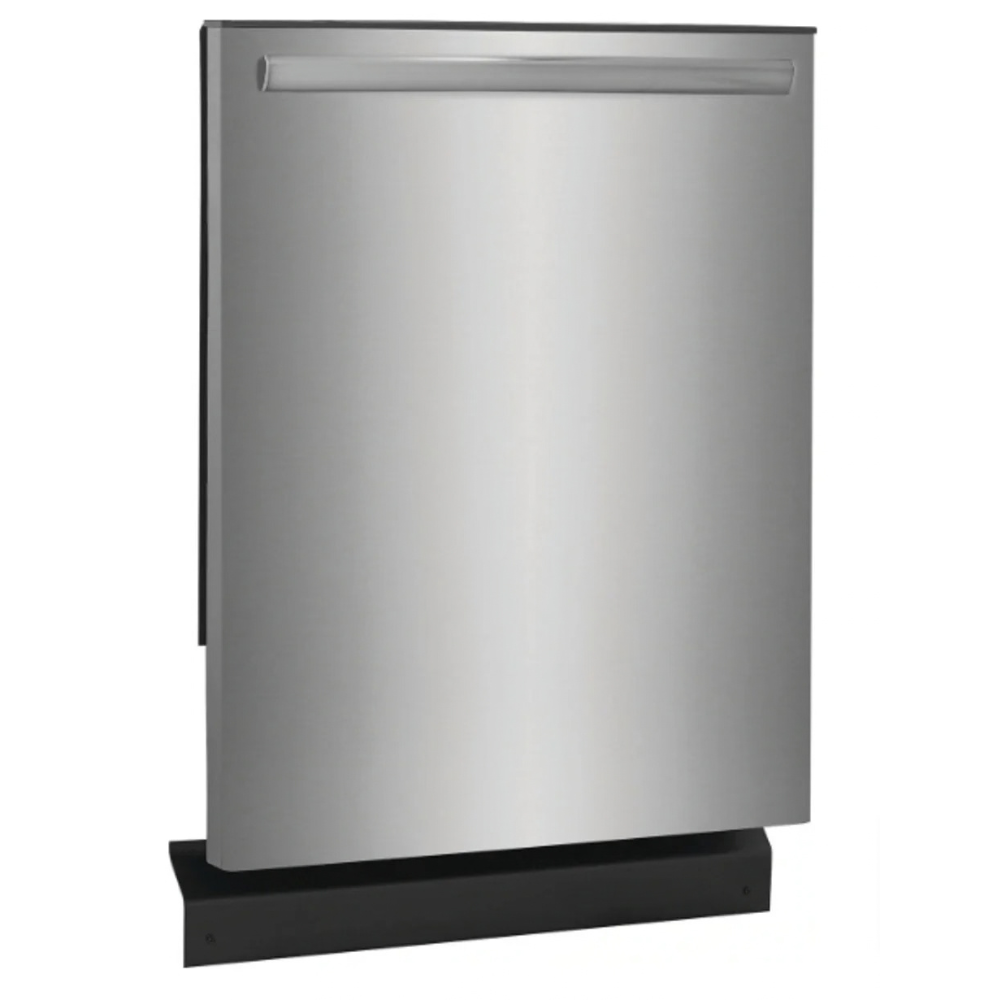

Smudge-Proof® Stainless Steel

The Smudge-Proof® Stainless Steel exterior resists fingerprints and is designed for easy cleaning.

Energy-Saving Performance

Energy Saver Cycle

The Energy Saver cycle is designed to use less energy while maintaining cleaning performance.

Additional efficiency specifications include:

• ENERGY STAR® 7.0 Certified
• ENERGY STAR® Certified
• 240 kWh annual energy consumption
• CEE Tier 1
• Energy Saver cycle

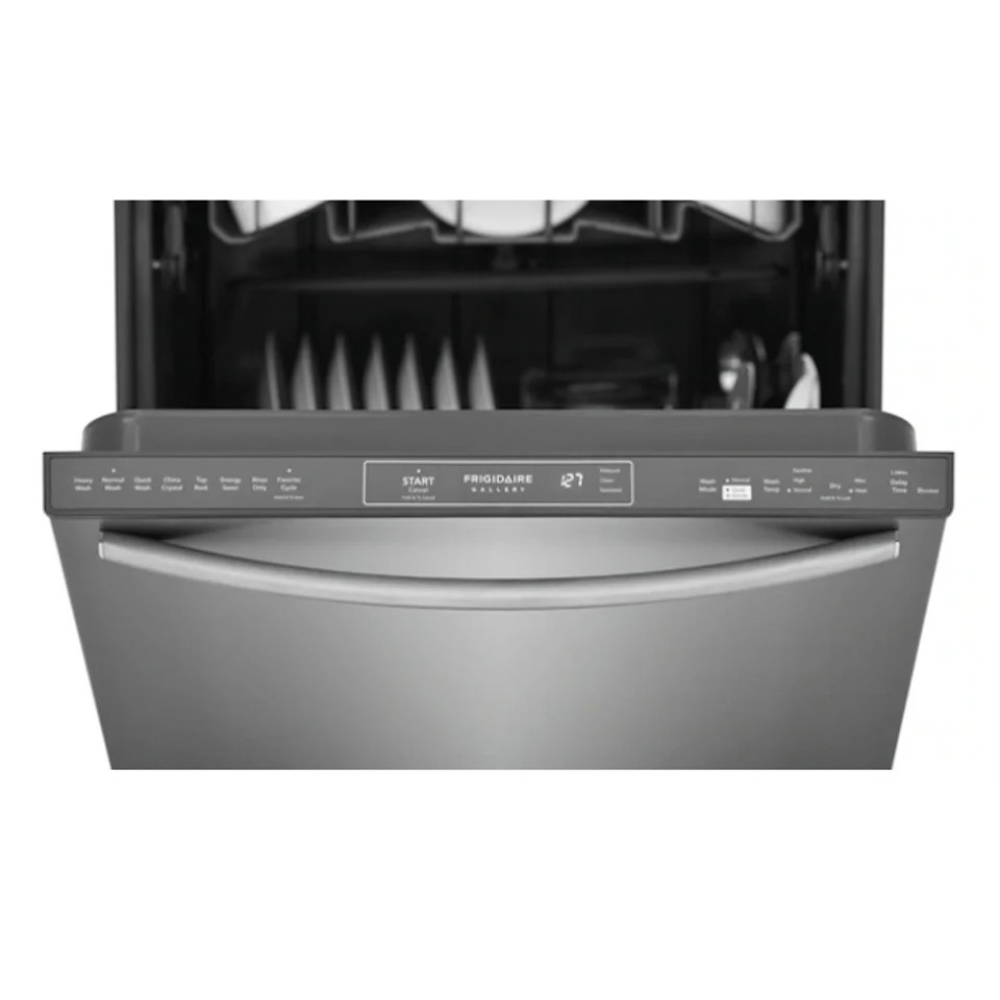

Controls & User Interface

• Top-mounted controls
• Digital display
• Start/Cancel function
• 1–24 hour Delay Start
• Rinse-aid indicator
• Floor status light
• Stay-Put door
• Handle-style door design
• Pull door latch
• Electronic control system

Specifications

Wash & Spray System

Drying & Temperature Options

Dimensions

Electrical & Installation Specifications

• Voltage Rating: 120V
• Frequency: 60 Hz
• Amps @ 120V: 10 A
• Connected Load: 1.2 kW
• Connection Location: Right bottom
• Water Inlet Location: Left bottom front
• Leveling Legs: 4
• Installation: Built-In

Certifications

• ENERGY STAR® Certified
• ENERGY STAR® 7.0 Certified
• NSF Certified
• cUL Listed
• ETL Listed
• UL Listed
• CEE Tier 1

Why Choose This Dishwasher?

• DishSense® Sensor Technology adjusts cleaning based on soil levels.
• OrbitClean® Wash System provides multi-directional water coverage.
• 42 dBA operation delivers exceptionally quiet cleaning.
• MaxDry™ option enhances drying performance.
• NSF-Certified Sanitize option removes 99.9% of common household bacteria.
• 14-place-setting capacity accommodates large dish loads.
• 34-minute Quick Wash provides a fast cleaning option.
• Adjustable and removable racks provide loading flexibility.
• Stay-Put door makes loading and unloading easier.
• Smudge-Proof® Stainless Steel resists fingerprints.
• Floor status light provides a quick visual cycle indicator.
• 24-hour Delay Start allows flexible scheduling.
• ENERGY STAR® 7.0 certification supports efficient water and energy consumption.
• 1-year parts and labor warranty provides basic manufacturer coverage.

Important Specification Note

The supplied information identifies this as a Frigidaire built-in dishwasher and provides detailed specifications, but it does not include a specific model number. The listing therefore avoids assigning a model number that was not provided.
