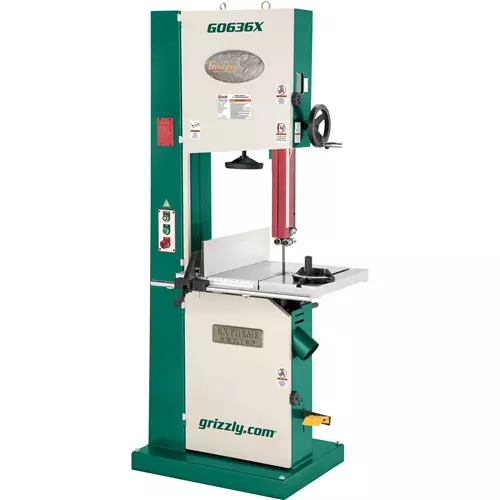

Developed to compete with high-end European bandsaws, the Grizzly G0636X 17 in. 5 HP Ultimate Bandsaw combines substantial cutting capacity with exceptional rigidity and vibration-absorbing mass. Its heavy-duty construction, fully balanced cast-iron wheels, precision-ground table, and powerful 5 HP motor create a machine designed for demanding woodworking and resawing applications.

With a 16-1/2 in. throat capacity and 16 in. maximum resaw capacity, the G0636X provides substantial clearance for large workpieces. The extra-wide 21 in. x 25-1/2 in. cast-iron table offers a large, stable work surface and tilts from 5° left to 45° right for angled cuts.

A deluxe cast-iron fence with an extruded-aluminum resaw fence provides strong support for tall stock, while rack-and-pinion adjustments make table and upper-guide positioning precise and convenient.

Key Features

Powerful 5 HP Motor

The 5 HP single-phase motor provides substantial power for demanding hardwood cutting and high-capacity resawing.

• Motor: 5 HP
• Voltage: 230V
• Phase: Single phase
• Current: 22A
• Blade speed: 4,500 FPM

Exceptional Cutting Capacity

The G0636X is designed for large workpieces, with a 16-1/2 in. throat and an impressive 16 in. resaw capacity.

• Throat capacity: 16-1/2 in.
• Resaw capacity: 16 in.
• Blade length: 160 in. to 162 in.
• Blade width range: 1/8 in. to 1-3/8 in.
• Resaw fence: 6 in. H x 23 in. L

Extra-Wide Cast-Iron Table

The oversized 21 in. x 25-1/2 in. precision-ground cast-iron table provides a broad and stable work surface for large stock.

• Table size: 21 in. x 25-1/2 in.
• Precision-ground surface
• Table tilt: 5° left to 45° right
• Floor-to-table height: 35-1/2 in.
• Micro-adjusting rack-and-pinion tilt

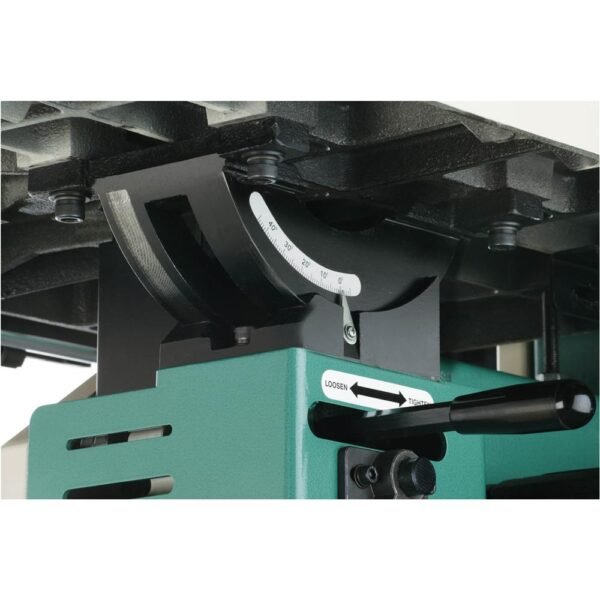

Rack-and-Pinion Table Adjustment

The micro-adjusting rack-and-pinion table mechanism allows controlled positioning of the heavy cast-iron table for accurate angled cuts.

Rack-and-Pinion Upper Guide Adjustment

The upper blade guide features rack-and-pinion adjustment for convenient and precise height positioning.

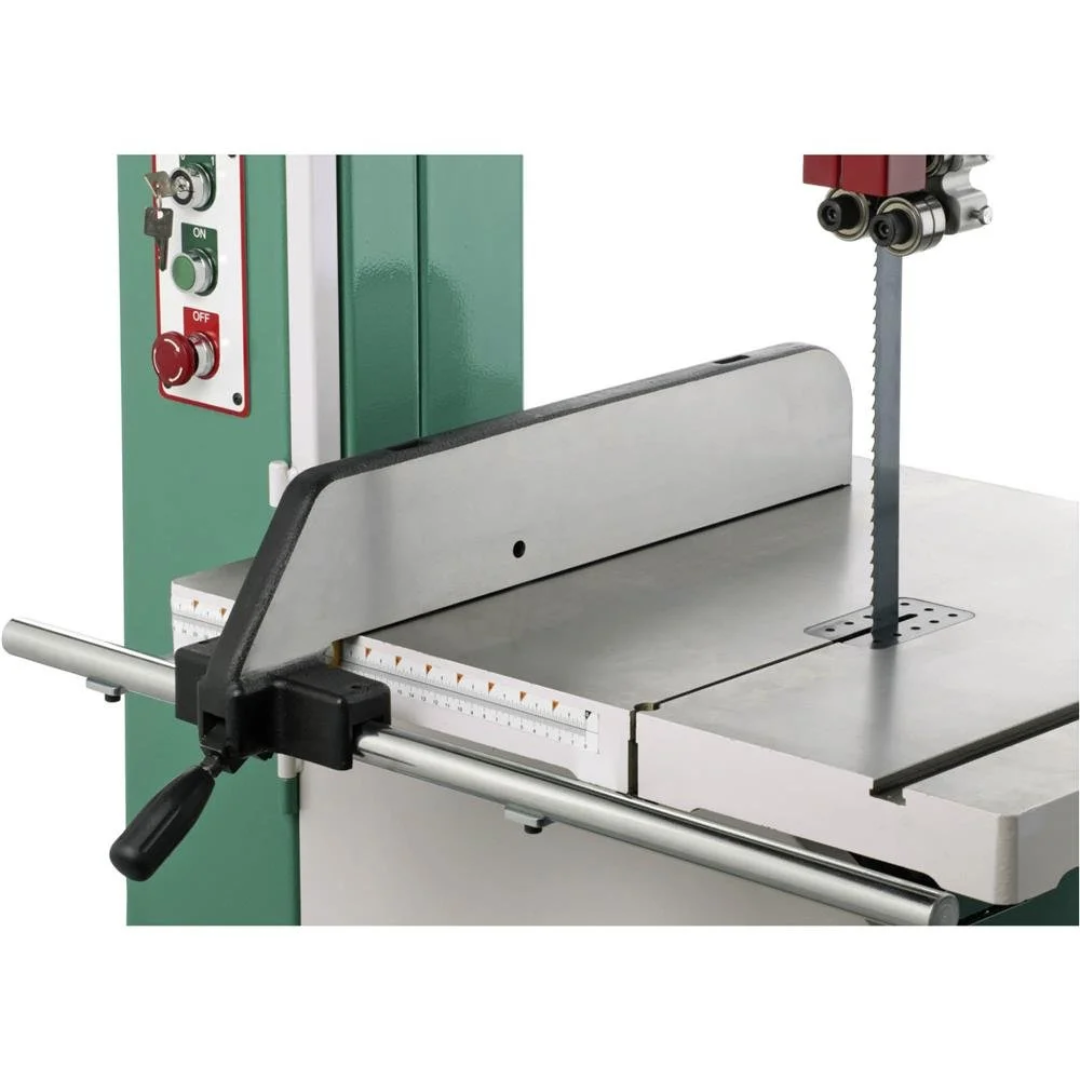

Heavy-Duty Fence System

The deluxe cast-iron fence includes an extruded-aluminum resaw fence that attaches quickly and provides additional support for tall stock.

The fence also adjusts for blade lead and incorporates a scale with a magnifying window for easier positioning.

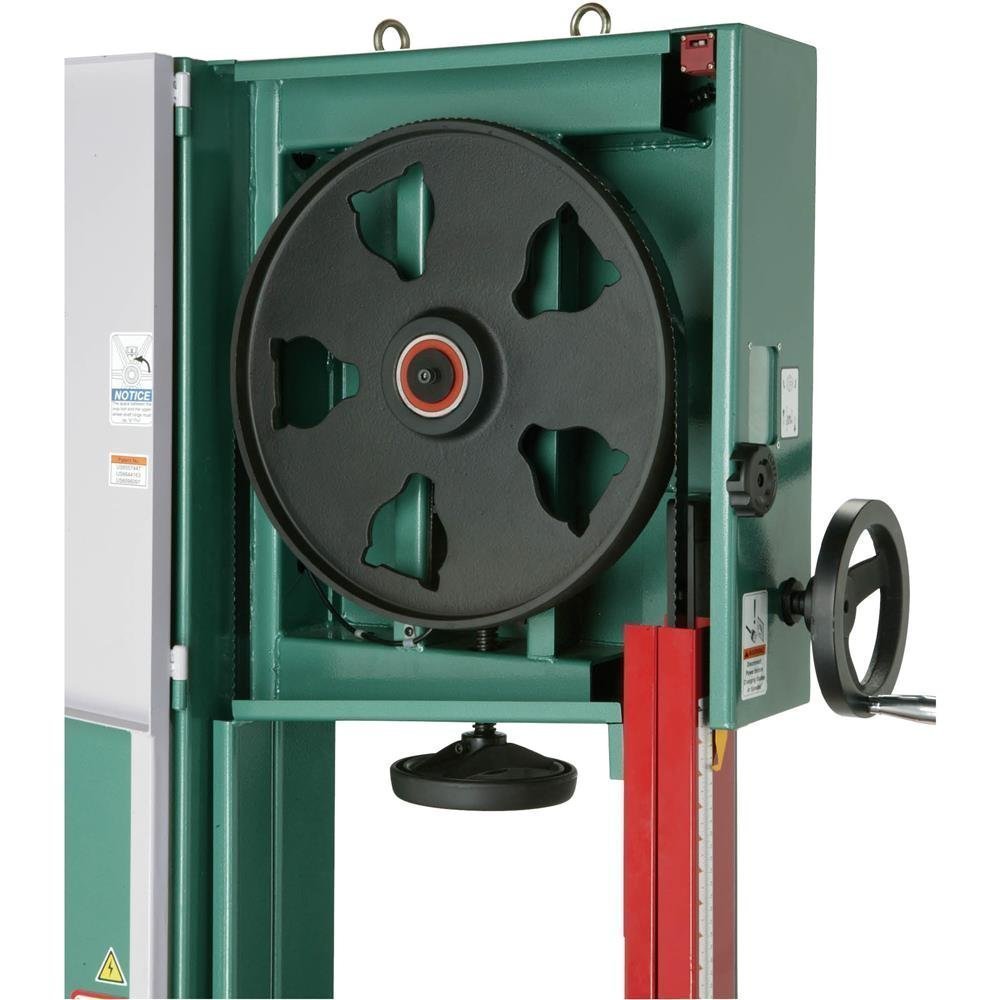

Balanced Cast-Iron Wheels

Fully balanced cast-iron wheels with urethane tires provide substantial rotating mass and are designed to support smooth, stable operation.

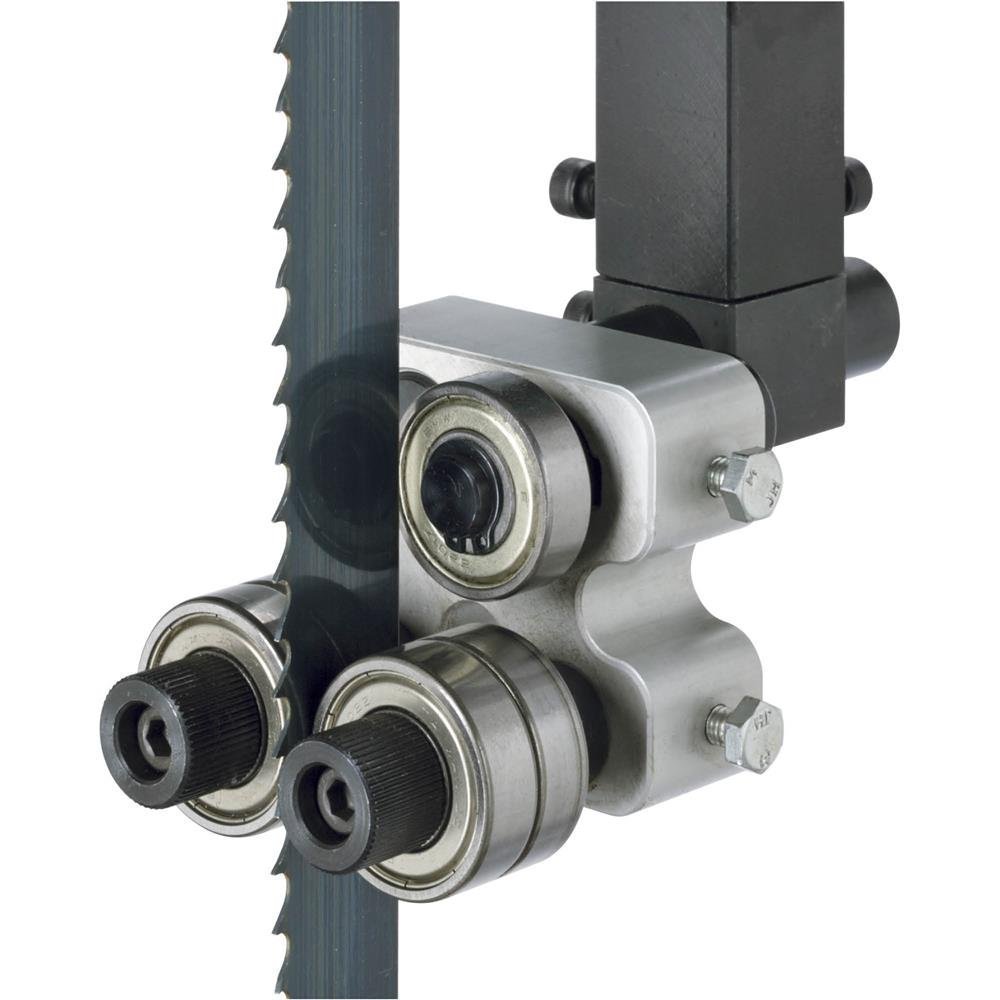

Dual Ball-Bearing Blade Guides

The G0636X uses dual ball-bearing blade guides for controlled blade support and accurate cutting.

• Dual ball-bearing guides
• Sealed and permanently lubricated bearings
• Blade tension indicator
• Blade tracking window
• Height scale measurement

Quick-Release Blade Tensioning

The quick-release blade tensioning system makes blade changes faster and more convenient.

Dual 4 in. Dust Ports

Two 4 in. dust ports provide dedicated dust-collection connections to help manage debris during woodworking operations.

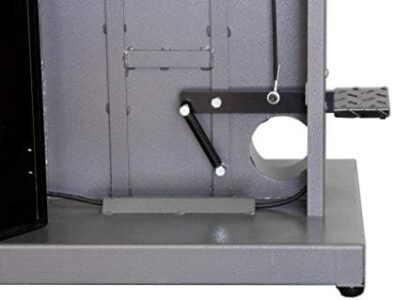

Foot Brake Stop

A foot-operated brake provides a convenient method for bringing the bandsaw to a stop.

Included Blade & Miter Gauge

The G0636X includes a 1 in., 6-TPI hook blade and a miter gauge.

Specifications

Motor & Electrical

Electrical Note: The G0636X does not include a power plug. The recommended plug type is L6-30. Electrical installation should follow applicable requirements and the manufacturer’s instructions.

Cutting Performance

Work Table

Dimensions & Weight

Blade & Guide System

• Dual ball-bearing blade guides
• Sealed and permanently lubricated bearings
• Quick-release blade tensioning
• Blade tension indicator
• Blade tracking window
• Rack-and-pinion upper guide adjustment
• Blade height scale
• Fully balanced cast-iron wheels
• Urethane wheel tires

Fence System

The deluxe fence assembly is designed for both general cutting and high-capacity resawing.

• Cast-iron fence
• Extruded-aluminum resaw fence
• 6 in. H x 23 in. L resaw fence
• Fence adjusts for blade lead
• Integrated scale
• Magnifying window
• Quick fence attachment

Dust Collection

The G0636X is equipped with two dedicated dust ports for workshop dust-management systems.

• Quantity: 2
• Port diameter: 4 in.

Safety & Convenience

• Foot brake stop
• Quick-release blade tensioning
• Blade tracking window
• Blade tension indicator
• Rack-and-pinion upper guide adjustment
• Rack-and-pinion table adjustment
• Dual 4 in. dust ports
• Heavy-duty fence system

Included Accessories

• 1 in., 6-TPI hook blade
• Miter gauge
• Cast-iron fence
• Extruded-aluminum resaw fence

Manual & Maintenance

The G0636X owner’s manual was prepared by a U.S.-based Technical Documentation Department and provides detailed instructions for assembly, operation, maintenance, and adjustment.

Ideal Applications

The Grizzly G0636X 17 in. Ultimate Bandsaw is designed for demanding applications including:

• Industrial woodworking
• Heavy-duty resawing
• Hardwood processing
• Large workpiece cutting
• Furniture manufacturing
• Cabinet and millwork production
• Veneer preparation
• Production woodworking
• Professional woodworking shops

Warranty

Manufacturer Warranty: 1-Year Limited Warranty

Why Choose the Grizzly G0636X?

The Grizzly G0636X combines a 5 HP motor, 16 in. resaw capacity, 16-1/2 in. throat, and an extra-wide precision-ground cast-iron table in a substantially built 17 in. bandsaw. Its balanced cast-iron wheels, dual ball-bearing blade guides, rack-and-pinion adjustments, heavy-duty fence, dual dust ports, and foot brake provide the combination of capacity, control, and heavy-duty construction required for demanding woodworking and resawing applications.
