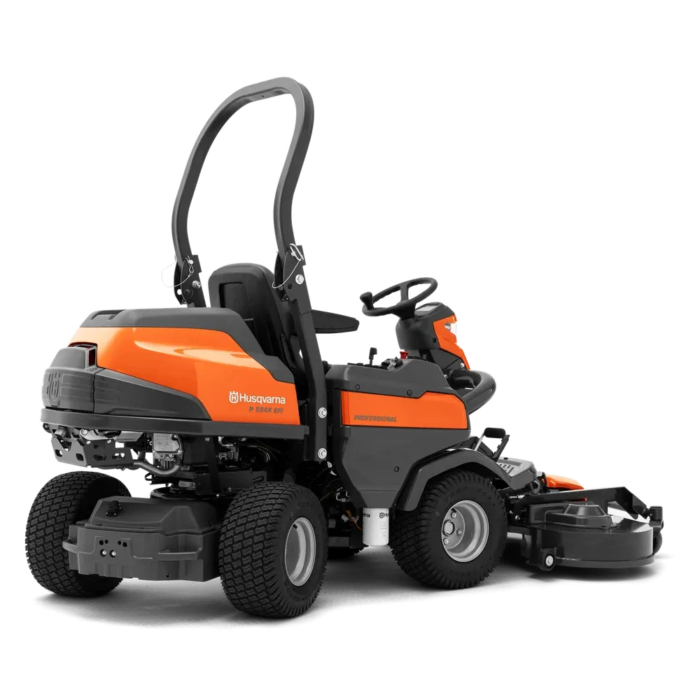

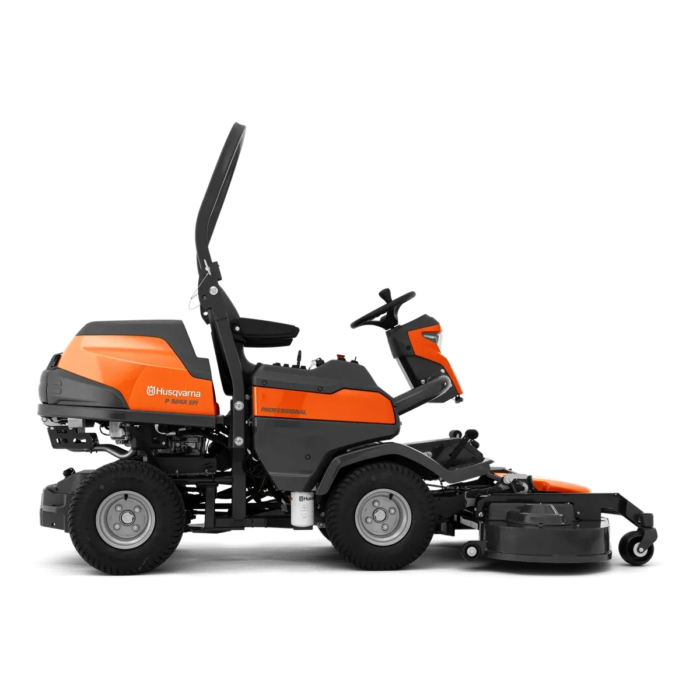

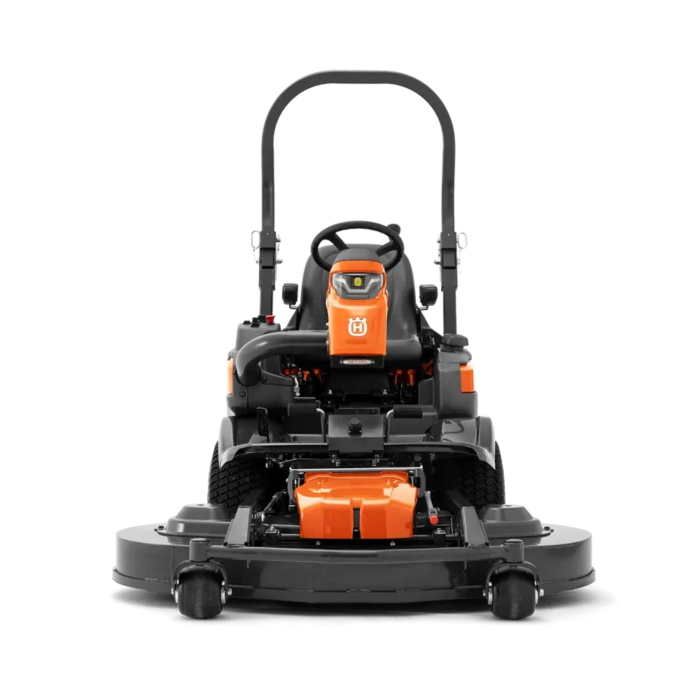

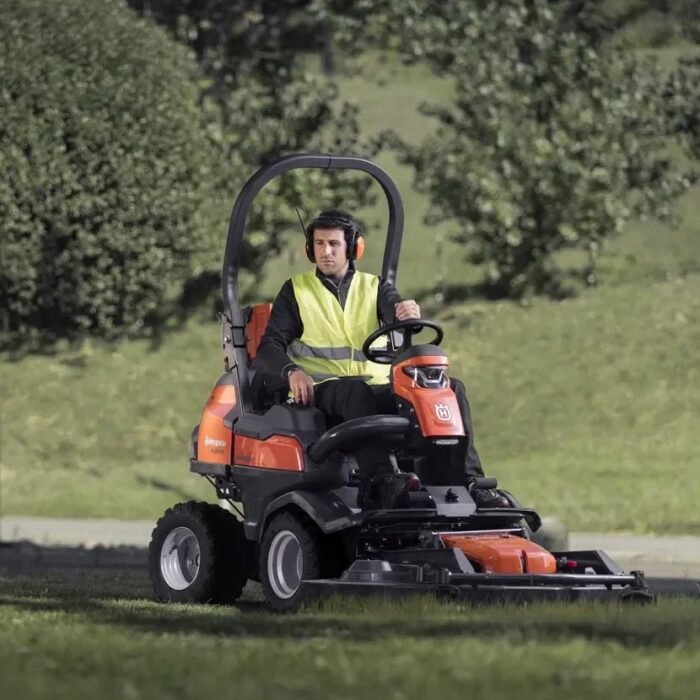

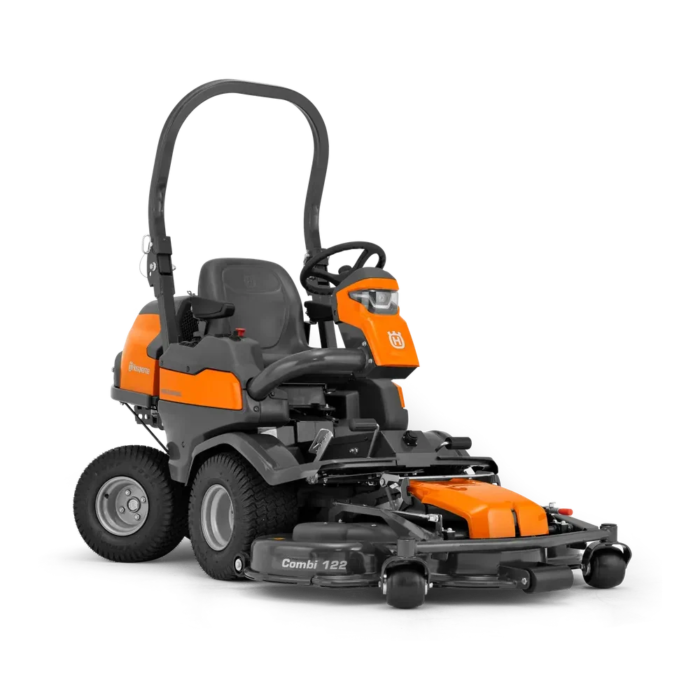

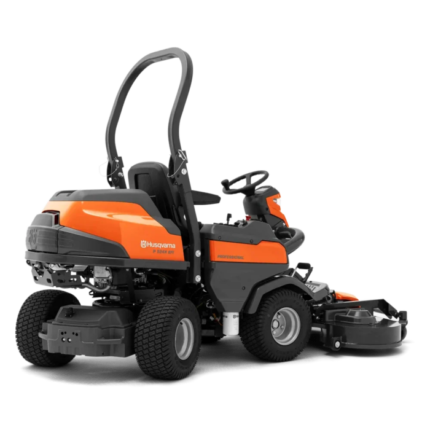

Husqvarna P 524X EFI Ride-On Mower

Husqvarna Ride-On Mowers – P 524X EFI:

• Power/fuel type – Petrol
• Net power at preset rpm Energy ¹ – 15.6 kW
• Net power at preset rpm – 3,000 rpm
• Motor/engine manufacturer – Kawasaki
• Engine name -FX Series V-Twin
• Cylinder displacement – 726 cm³
• Cylinders – 2
• Engine cooling – Air
• Engine lubrication type – Full pressure with oil filter
• Oil filter – Yes
• Exhaust emissions (CO₂ EU V) ² – 792 g/kWh
• Battery capacity – 24 Ah
• Battery type – Lead-Acid
• Battery pack weight – 7.2 kg
• Battery manufacturer – Global
• Uncut circle – 50 cm
• Cutting width, min – 112 cm
• Cutting width, max – 137 cm
• Cutting height min – 25 mm
• Cutting height max – 100 mm
• Blade engagement – Electric clutch
• Tyre dimensions, front – 18×8,5-8
• Tyre dimensions, rear – 18×8,5-8
• Wheelbase – 100 cm
• Ground clearance – 130 mm
• Base machine, length – 206 cm
• Base machine, width – 98 cm
• Base machine, height – 122 cm
• Gross weight towed ³ – 200 kg
• Weight (excl. cutting equipment) – 437 kg
• PTO (Power Take Off) – Belt-driven
• Transmission type – Hydrostatic
• Transmission manufacturer, rear – Kanzaki
• Drive method – Dual pedal-operation
• Speed forward max – 13 km/h
• Speed reverse max – 5.6 mph
• Speed reverse max – 9 km/h
• Transmission manufacturer, front – Kanzaki
• Transmission model, front – KTM 23LB
• Transmission model, rear – KTM 23SB
• Seat suspension – Yes
• Seat type – Professional
• Hour meter type – Digital
• Seat material – Vinyl
• Seat back height – High
• Foldable seat – Yes
• Steering wheel type – Professional
• Parking brake, type – Disc
• Vibration level steering wheel – 2.5 m/s²
• Vibration level seat – 0.5 m/s²
• Sound pressure level at operators ear – 91 dB(A)
• Sound power level, (LWA) – 105 dB(A)
• Sound power level, measured – 105 dB(A)

¹Net power at preset rpm Energy: Net power rating as per SAE J1349, at specified RPM as specified by the engine manufacturer.
²Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
³Gross weight towed: For 2-wheel drive machines, towing of trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of the trailer may shorten the lifetime of the Rider’s transmission.
