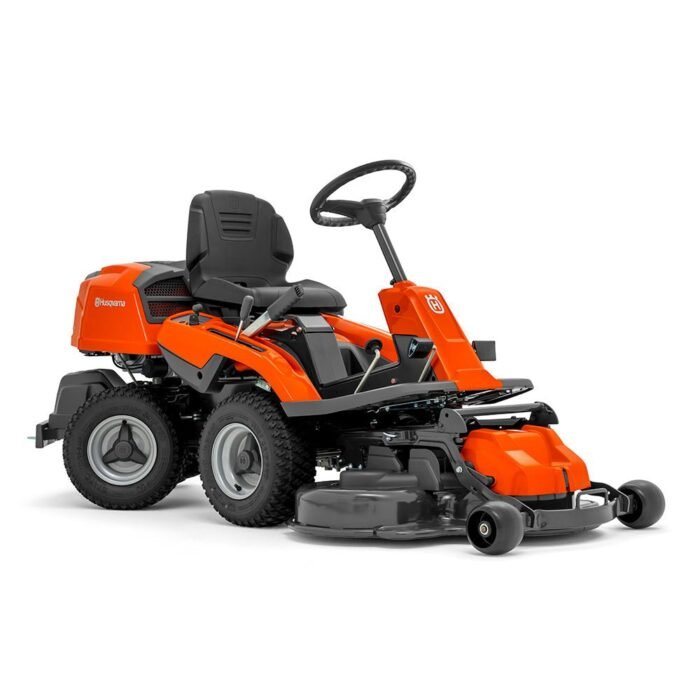

Husqvarna R 214C Ride-On Mower

Features:

• Combi cutting deck with BioClip (mulching)
• Service position
• Automatic blade engagement
• Turn key start
• Pedal-operated hydrostatic transmission
• Pivoting rear axle
• Adjustable steering wheel
• Storage compartment
• Easy-access cutting height lever
• Hour meter
• Bottle holder
• Unique articulated steering
• Combi cutting deck
• Easy-access controls
• Engine behind driver
• Four large wheels
• Front-mounted cutting deck
• Versatile usage

Included with Purchase:

• Hour meter type – Digital
• Seat material – PU
• Seat suspension – Yes
• Seat back height – Medium
• Foldable seat – Yes
• Steering wheel type – Comfort
• Parking brake, type – Disc

Technical Specification:

• Motor/engine manufacturer – Husqvarna
• Engine name – HS 413AE
• Net power at preset rpm Energy – 8.4 kW
• Cylinder displacement – 413 cm³
• Cylinders – 1
• Engine cooling – Air
• Power/fuel type – Gasoline
• Engine lubrication type – Pressure
• Oil filter – Yes
• Exhaust emissions (CO2 EU V) – 773 g/kWh[1]
• Fuel tank volume – 12 l
• Battery type – Lead-Acid
• Battery capacity – 24 Ah
• Battery pack weight – 15.873 lbs
• Cutting width – 94 cm
• Uncut circle – 30 cm
• Cutting deck type – Combi
• Cutting deck material – Steel
• Cutting methods – BioClip/Rear discharge
• Cutting height max – 75 mm
• Cutting height min – 25 mm
• Blade engagement – Automatic
• Blades – 3 pcs
• Powder-coated cutting deck – Yes
• Weight (excl. cutting equipment) – 191 kg
• Tyre dimensions, front – 170/60-8
• Tyre dimensions, rear – 170/60-8
• Wheelbase – 88.7 cm
• Ground clearance – 105 mm
• Base machine, length – 223 cm
• Base machine, width – 100 cm
• Base machine, height – 107 cm
• Gross weight towed – 110 kg[2]
• Transmission type – Hydrostatic
• Transmission manufacturer – Tuff Torq
• Drive method – Pedal-operated
• Speed forward max – 9 km/h
• Speed reverse max – 9 km/h
• Transmission model – K46
• Sound pressure level at operators ear – 84 dB(A)
• Sound power level, measured – 98 dB(A)
• Sound power level, (LWA) – 99 dB(A)
• Vibration level steering wheel – 2.1 m/s²
• Vibration level seat – 0.5 m/s²

[1] This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
[2] For 2-wheel drive machines, towing of the trailer is only allowed in dry conditions and on flat surfaces. Be aware that towing of the trailer may shorten the lifetime of the Rider’s transmission.
