KATOOL KT-H105 10000 lb Two Post Car Lift – Heavy Duty Automotive Vehicle Lift
$2,199
Shipping calculated at checkout.
Description
KATOOL KT-H105 10000 lb Two Post Car Lift – Heavy Duty Automotive Vehicle Lift
The KATOOL KT-H105 10000 lb Two Post Car Lift is a professional-grade automotive lift designed for repair shops, service centers, tire shops, and home garages. With a lifting capacity of 10,000 lbs (4,500 kg), this heavy-duty two-post vehicle lift provides reliable performance for cars, SUVs, pickup trucks, and light-duty trucks.
Built with a durable steel structure, dual hydraulic chain-drive cylinders, and a base plate design, the KT-H105 delivers smooth lifting operation, maximum stability, and long-term reliability. The lift is CE Certified and tested to 115% dynamic load capacity and 150% static load capacity for enhanced safety and performance.
Product Specifications
| Specification | Value |
|---|---|
| Brand | KATOOL |
| Model | KT-H105 |
| Capacity | 10,000 lbs |
| Lift Type | Two Post |
| Design | Base Plate |
| Power | 220V |
| Certification | CE Certified |
| Drive System | Dual Hydraulic Chain Drive |
| Warranty | Manufacturer Warranty |
Key Features
- 10,000 lb (4,500 kg) lifting capacity
- CE Approved and Certified
- Tested to 115% dynamic load and 150% static load standards
- Manual safety lock release from both sides
- Base plate design for lower ceiling installations
- Dual hydraulic chain-drive cylinders
- Rubber door opening protection pads

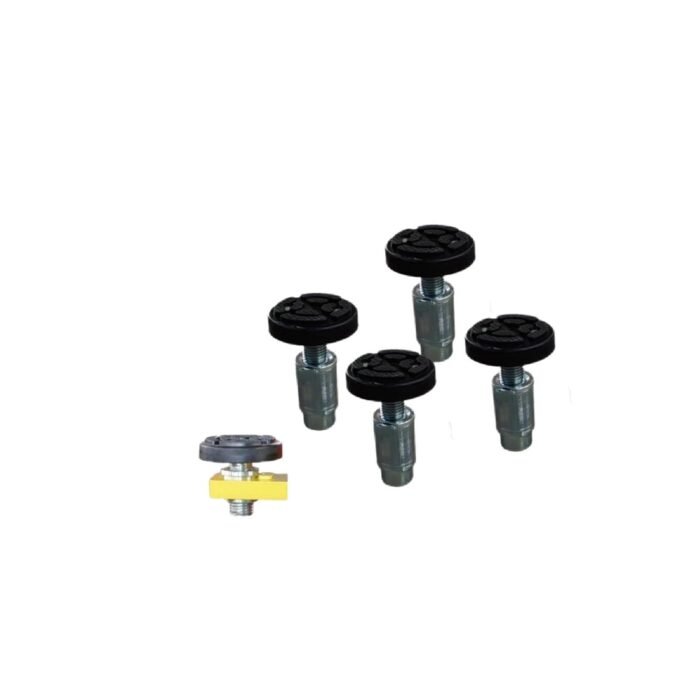

- Adjustable screw-on lifting pads
- Extension adapter set (+100 mm included)
- Heavy-duty steel construction
- Professional hydraulic lifting system
- 220V / 60Hz / Single Phase power system
Ideal Applications
The KATOOL KT-H105 is ideal for:
- Automotive repair shops
- Tire and wheel service centers
- Vehicle maintenance facilities
- Fleet service garages
- Home automotive workshops
Whether performing brake service, suspension work, tire replacement, inspections, or general maintenance, this 2 post car lift provides safe and efficient vehicle access.
Technical Specifications of the 10000 lb Two Post Car Lift
| Specification | Details |
|---|---|
| Lifting Capacity | 10,000 lbs (4,500 kg) |
| Maximum Lifting Height | 70.8 in (1800 mm) |
| Minimum Height | 3.9 in (100 mm) |
| Overall Height | 110.9 in (2818 mm) |
| Overall Width | 140.4 in (3565 mm) |
| Outside Column Width | 124.8 in (3170 mm) |
| Inside Column Width | 110.2 in (2800 mm) |
| Drive-Thru Clearance | 98.4 in (2500 mm) |
| Front Arm Reach (Min) | 29.5 in (750 mm) |
| Front Arm Reach (Max) | 46 in (1170 mm) |
| Rear Arm Reach (Min) | 35.4 in (900 mm) |
| Rear Arm Reach (Max) | 58.2 in (1480 mm) |
| Motor | 220V / 60Hz / 1PH / 2.2KW |
| Net Weight | 570 kg |
Installation Requirements
Important: Concrete thickness must be at least 5.9 inches (150 mm) with a minimum 3000 PSI rating. Failure to install the lift on properly rated concrete may result in equipment failure, serious injury, or death. Customers are responsible for verifying concrete thickness and strength before installation.
Shipping Information
Free Shipping Within the USA
- Ships within the United States only
- Free shipping on qualifying orders
- Order processing time: 1–2 business days
- Estimated delivery time: 1–5 business days
- Tracking information provided after shipment
Freight Delivery Notice
Due to the size and weight of this equipment, delivery may be made by freight carrier.
- Delivery appointment may be required
- Valid phone number required at checkout
- Customer should inspect shipment before signing delivery receipt
- Report any shipping damage within 48 hours of delivery
Why Choose the KATOOL KT-H105?
The KATOOL KT-H105 combines professional lifting performance, safety, durability, and value. Its 10,000 lb capacity, dual hydraulic cylinders, and heavy-duty construction make it an excellent choice for automotive professionals and serious DIY mechanics looking for a dependable two-post vehicle lift.
Why Choose the KATOOL KT-H105 10000 lb Two Post Car Lift?
The KATOOL KT-H105 10000 lb Two Post Car Lift is engineered for professional automotive repair shops, dealerships, service centers, and home garages. Its heavy-duty steel construction, hydraulic lifting system, and CE-certified safety design provide dependable lifting performance for cars, SUVs, light trucks, and commercial vehicles.
This automotive lift features dual hydraulic chain-drive cylinders, adjustable lifting pads, and a manual safety lock release system. The compact base plate design makes it ideal for garages with limited ceiling height while maintaining excellent lifting stability.
The KT-H105 helps technicians perform brake service, tire replacement, suspension work, oil changes, inspections, and underbody repairs more efficiently. Its 10,000 lb lifting capacity makes it one of the most versatile vehicle lifts available for automotive professionals.
Safety & Installation Information
For vehicle lift safety recommendations, please review the
OSHA Safety Guidelines.
Explore More Vehicle Lifts
Browse our complete
Car Lift Collection
for additional two-post lifts, four-post lifts, and automotive garage equipment.
Visit our
Shop Page
to discover professional automotive tools and lifting equipment.
