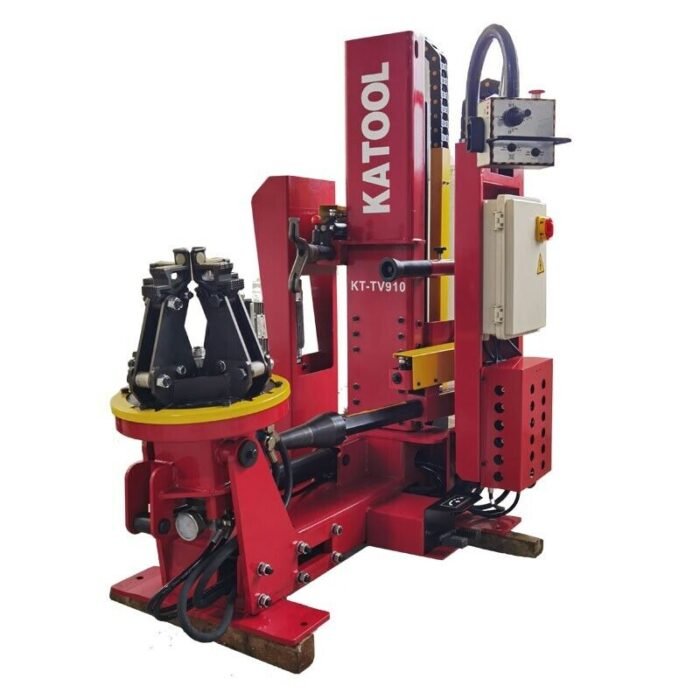

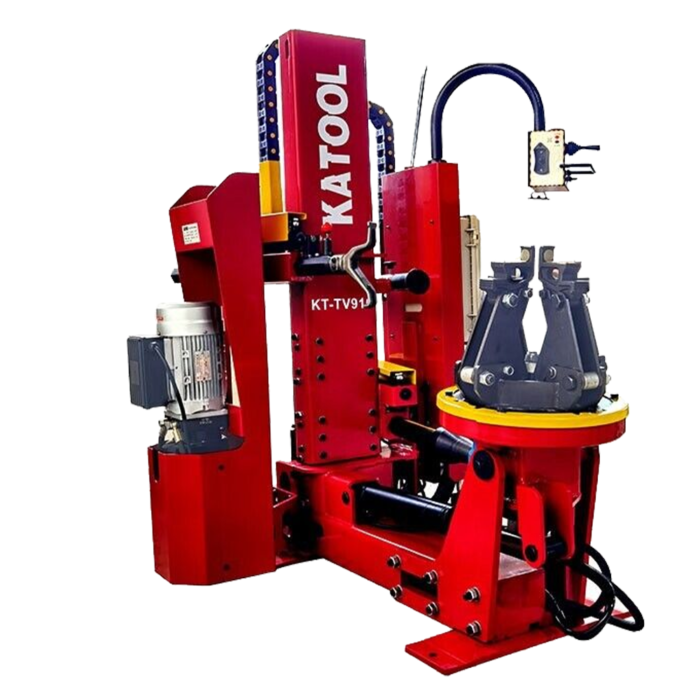

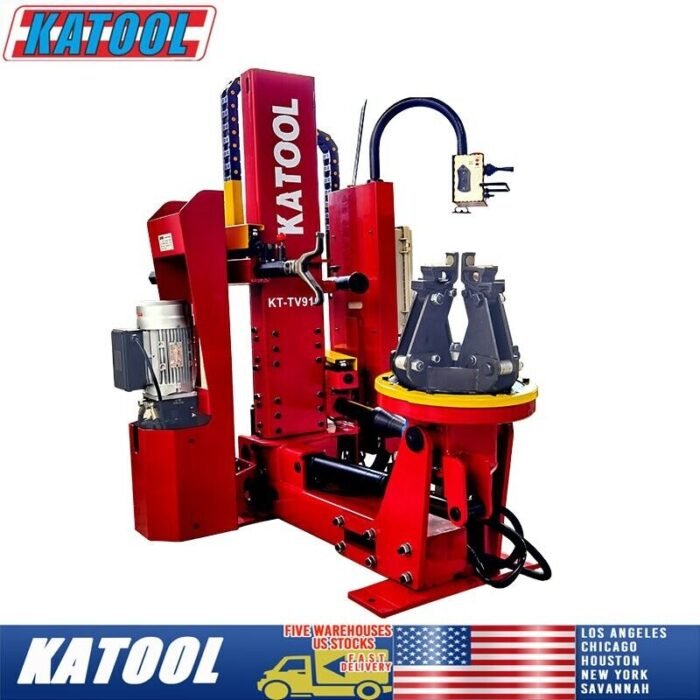

KT-TV910 Hydraulic Truck Tire Changer

Description

KT-TV910 Heavy Duty Truck Tire Changer Machine

Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires

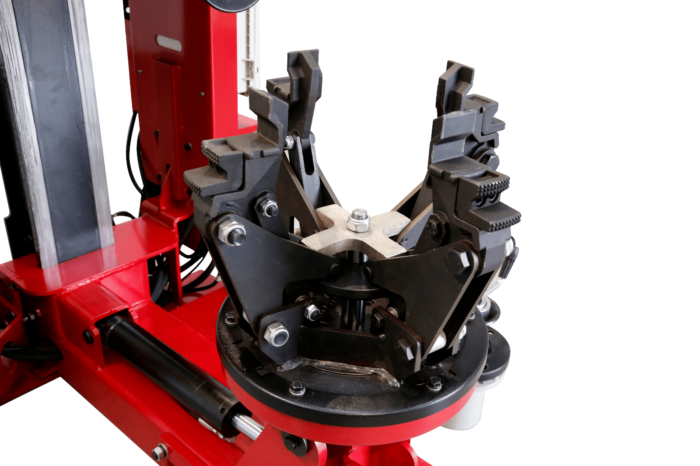

Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility.
Multifunctional control, allows the user to operate in any position safely
Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims
Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error.
Low voltage electric components ensure user complete safety

Outer Rim	14” – 42”
Max Wheel Diameter	63” / 1600mm
Max Wheel Width	31” / 780mm
Working Pressure	≤130 bar
Power Supply	220V 1PH/60HZ
Hydraulic Motor	3.0 KW (*4.0 HP Motor*)
Max Flow of Oil for Hydraulic Motor	315
Max Tire Weight	3306lbs / 1500KG
Net Weight	1256lbs / 570KG
Shipping Weight	1388lbs / 630KG
Shipping Dimension	51” x 43” x 72” / 1300mm x 1100mm x 1830mm)
Noise Level	< 70 DB(A)

SHIPPING POLICY: Please read carefully

Freight shipping ONLY within the lower 48 states.
Shipping carrier may charge extra to residential Delivery.
THE BUYER IS RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
Customer should consider Forklift and unloading dock service.
The buyer should be also responsible for any re-delivery charges.
Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
