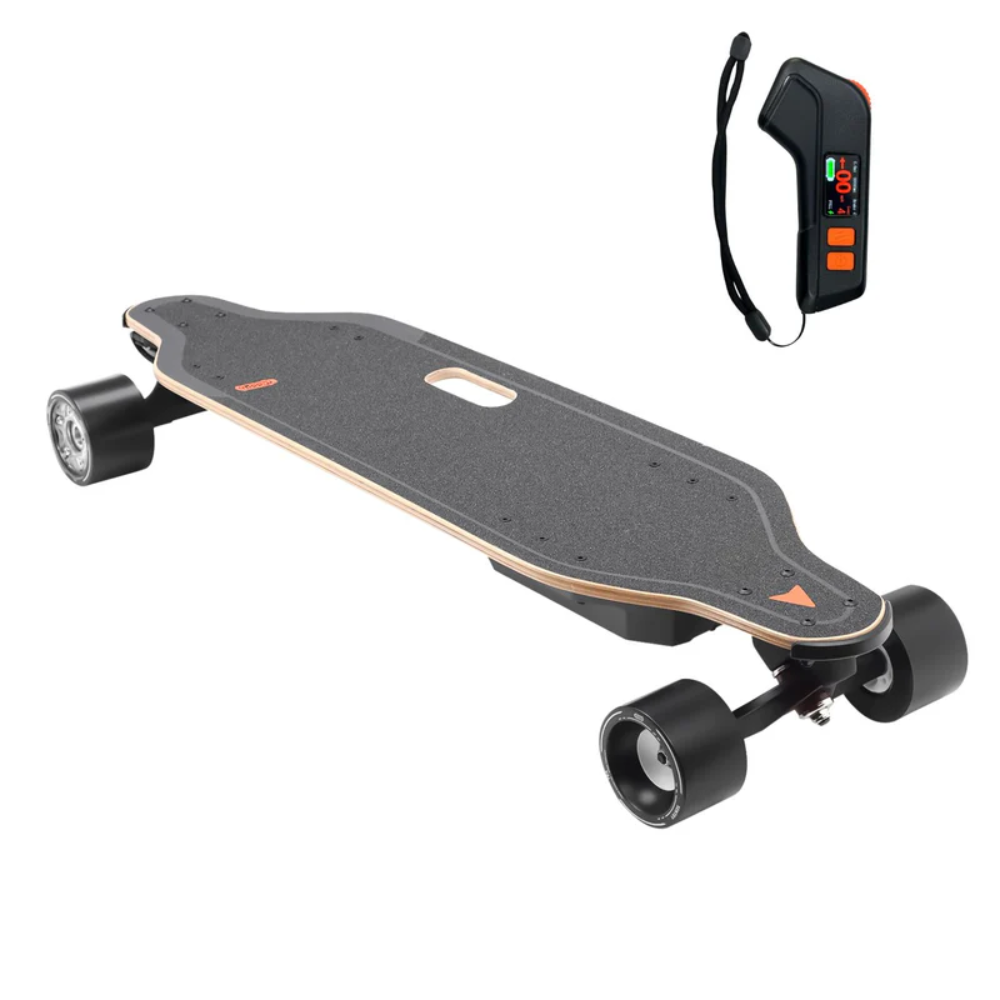

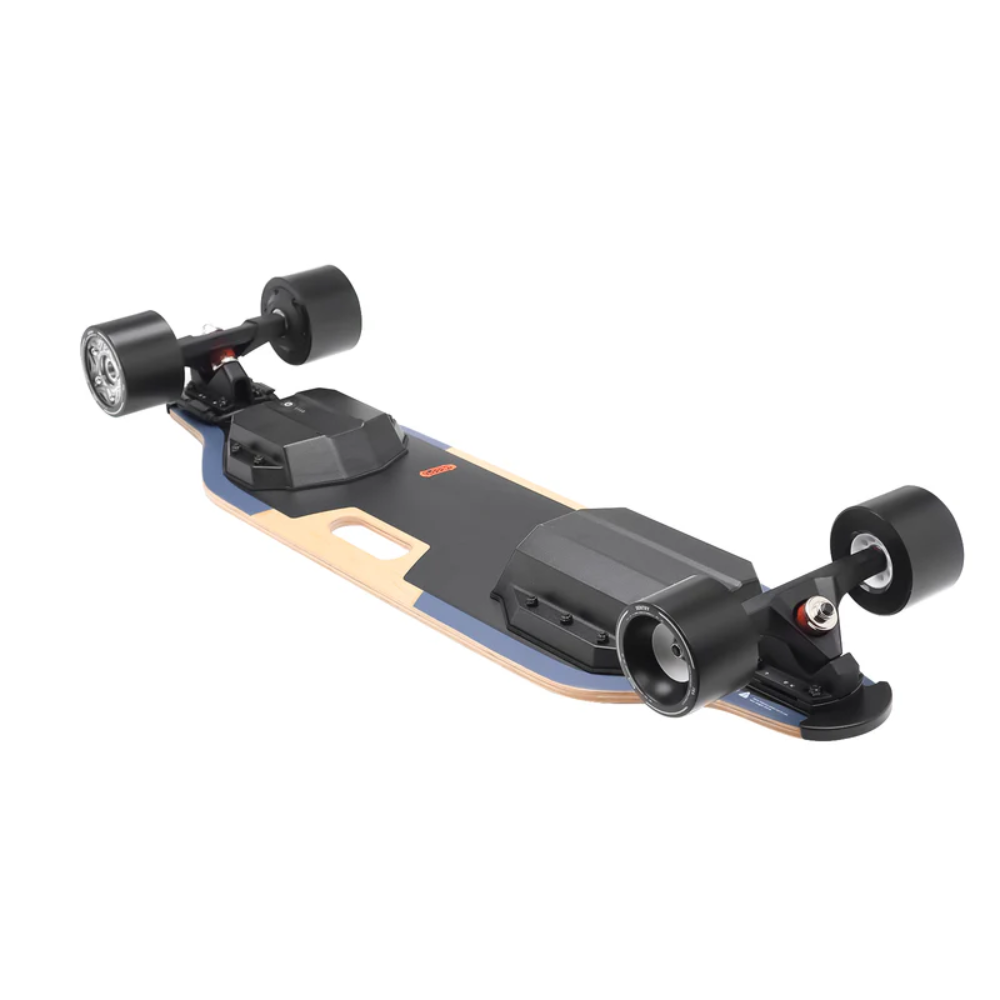

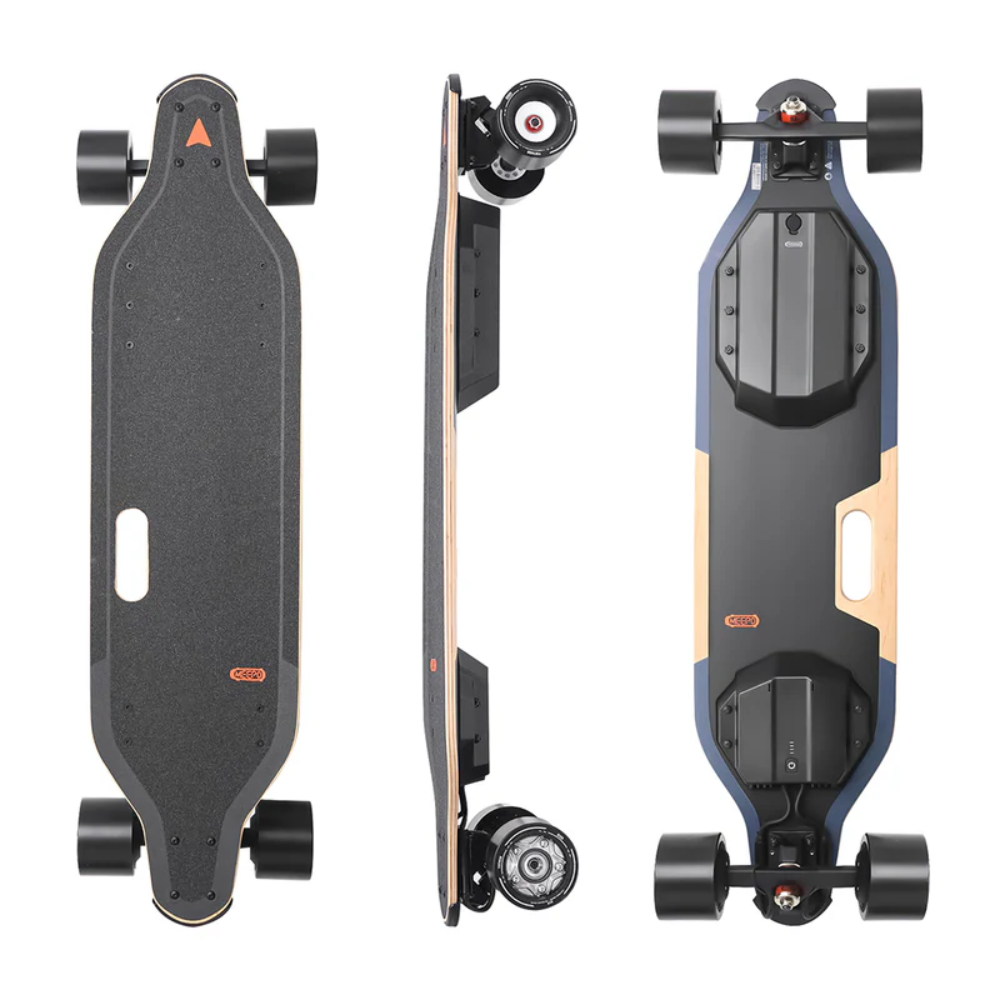

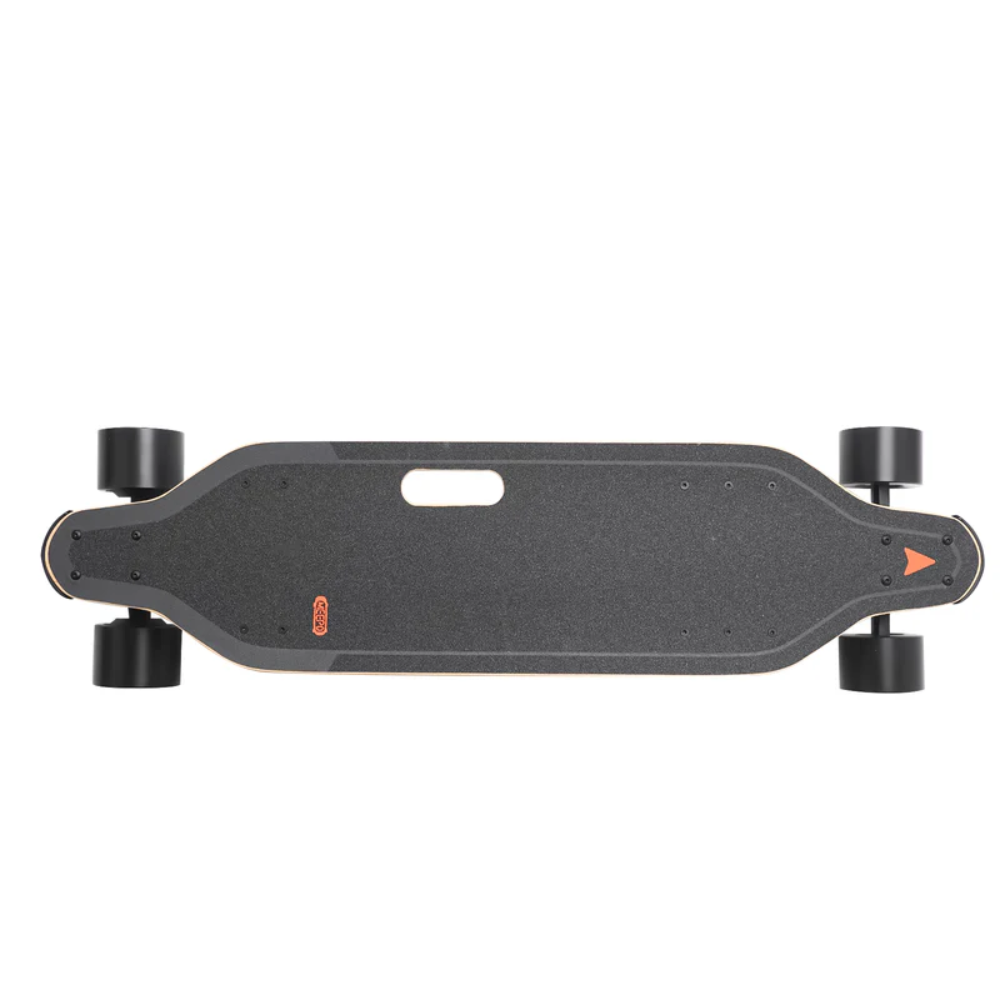

MEEPO Model M1 (V5) Electric Longboard

Lightweight, Compact & Responsive Urban Performance

The MEEPO Model M1 (V5) is a lightweight electric longboard designed for everyday commuting, urban cruising, and carving. With dual 500W motors, a compact 144Wh battery, and a durable 8-ply Canadian maple deck, the M1 (V5) delivers a stated top speed of up to 28 MPH while remaining highly portable at just 17.6 lbs.

Key Features

Dual 500W Motors

The M1 (V5) is powered by dual 500W motors, providing a combined motor rating of 1,000W. The system delivers a stated top speed of up to 28 MPH / 45 KPH and can handle inclines of up to 18% / 10° according to the supplied specifications.

Up to 11-Mile Range

The 144Wh battery provides a manufacturer-stated range of up to 11 miles / 18 km, making the M1 (V5) suitable for short commutes, urban cruising, and everyday transportation.

Lightweight 17.6-Pound Design

Weighing approximately 17.6 lbs / 8 kg, the M1 (V5) is designed for easy carrying and convenient transportation when you’re off the board.

Durable 8-Ply Canadian Maple Deck

The deck is constructed from 8-ply Canadian maple, providing a sturdy riding platform while maintaining the board’s compact and lightweight design.

5th Gen Shredder 45° Trucks

The M1 (V5) features 5th Generation Shredder 45° trucks, designed to provide responsive handling and controlled carving for urban riding.

LY-FOC 24H ESC

The LY-FOC 24H Electronic Speed Controller (ESC) manages the board’s motor performance and electrical control system for responsive riding.

M6C Remote

The included M6C remote provides wireless control over the skateboard during operation.

IPX5 Water Resistance

The M1 (V5) features an IPX5 waterproof/water-resistance rating, providing protection against water exposure within the limits of the manufacturer’s specified rating.

Specifications

Range & Performance

The MEEPO M1 (V5) combines a 144Wh battery with dual 500W motors to provide a stated range of up to 11 miles and a top speed of up to 28 MPH. Its stated 18% / 10° hill-climbing capability makes it suitable for a variety of everyday urban routes.

Charging

The M1 (V5) has a stated charging time of approximately 2.8 hours, allowing riders to recharge the board between daily rides.

Capacity & Rider Load

The M1 (V5) has a stated maximum load capacity of 330 lbs / 150 kg. Riders should remain within this limit and account for terrain, riding conditions, speed, and riding style when operating the board.

Compact & Portable Design

At approximately 17.6 lbs / 8 kg, the M1 (V5) is designed with portability in mind. Its compact dimensions make it practical for riders who need to carry and store their electric skateboard between rides.

Safety & Operating Guidance

• Always wear a properly fitted helmet and appropriate protective gear.
• Inspect the deck, wheels, trucks, motors, battery, and electrical components before each ride.
• Start at a lower speed until you are familiar with the board’s acceleration and braking characteristics.
• Maintain a safe speed appropriate for your experience and riding environment.
• Avoid standing water, heavy rain, and conditions beyond the manufacturer’s IPX5 rating.
• Use the appropriate charger and follow the manufacturer’s battery charging and storage instructions.
• Do not exceed the stated 330 lb / 150 kg maximum load.
• Follow all applicable local laws and regulations for electric skateboards.

Performance Disclaimer

The 11-mile range, 28 MPH top speed, and 18% hill-climbing capability are manufacturer-stated specifications. Actual performance may vary depending on rider weight, speed, terrain, incline, riding style, weather, battery condition, and other operating conditions.

Why Choose the MEEPO M1 (V5)?

• Up to 11 miles / 18 km stated range
• Up to 28 MPH / 45 KPH stated top speed
• Dual 500W motors
• 144Wh battery
• 8-ply Canadian maple deck
• 5th Gen Shredder 45° trucks
• LY-FOC 24H ESC
• M6C remote
• 17.6 lbs / 8 kg lightweight design
• 330 lbs / 150 kg maximum load
• Approximately 2.8-hour charging time
• IPX5 water resistance
• 90 × 60mm, 78A wheels
