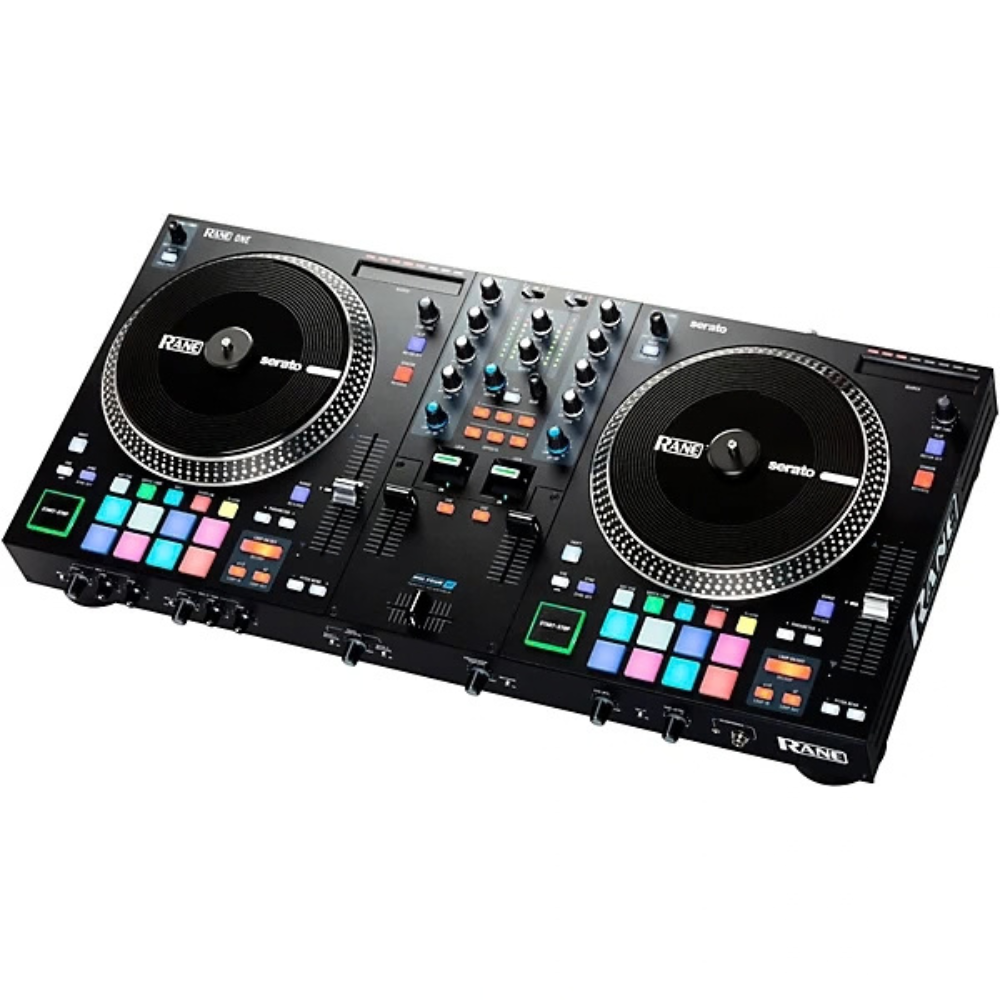

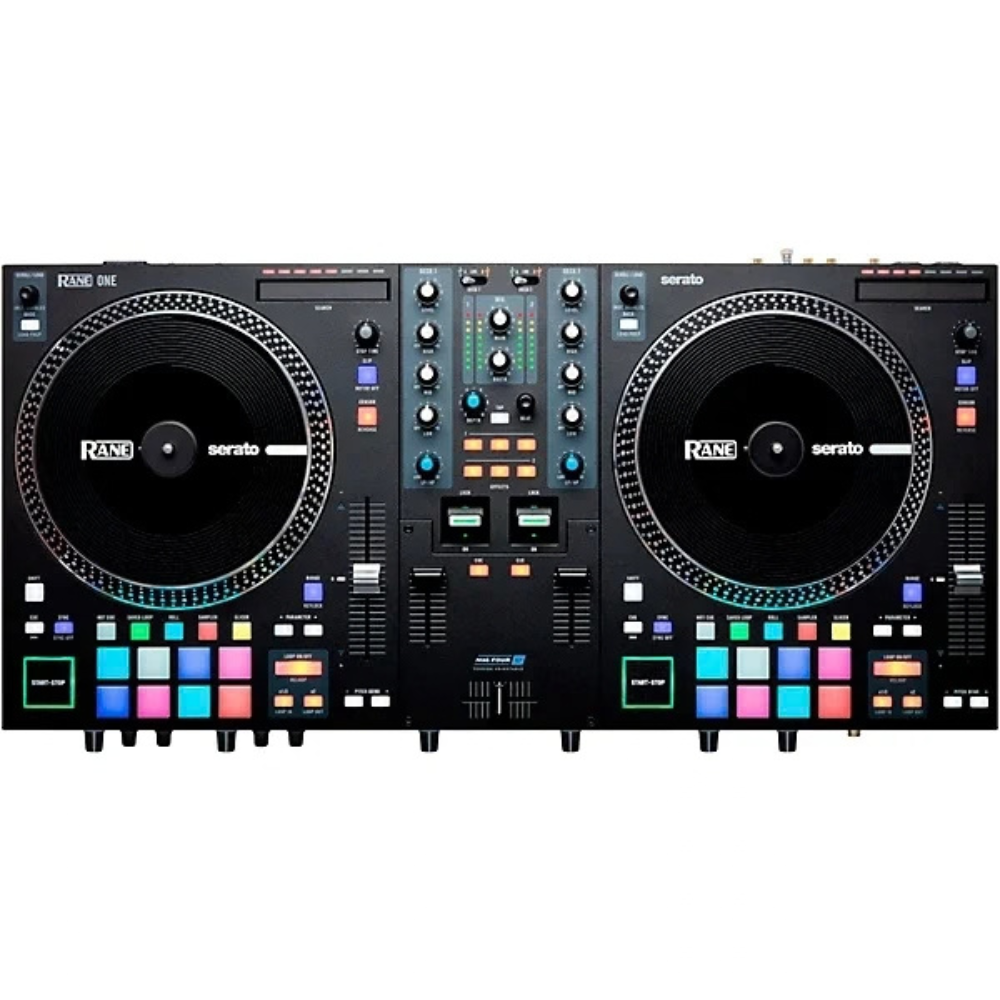

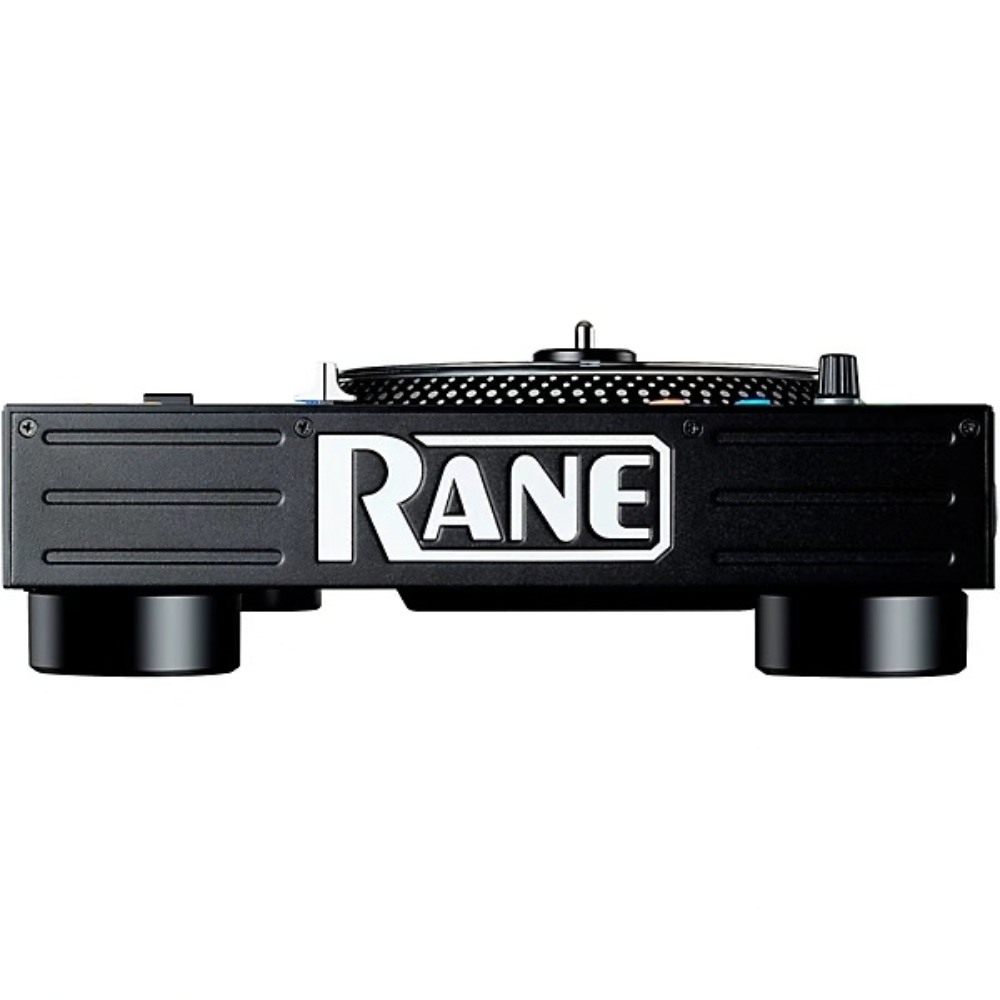

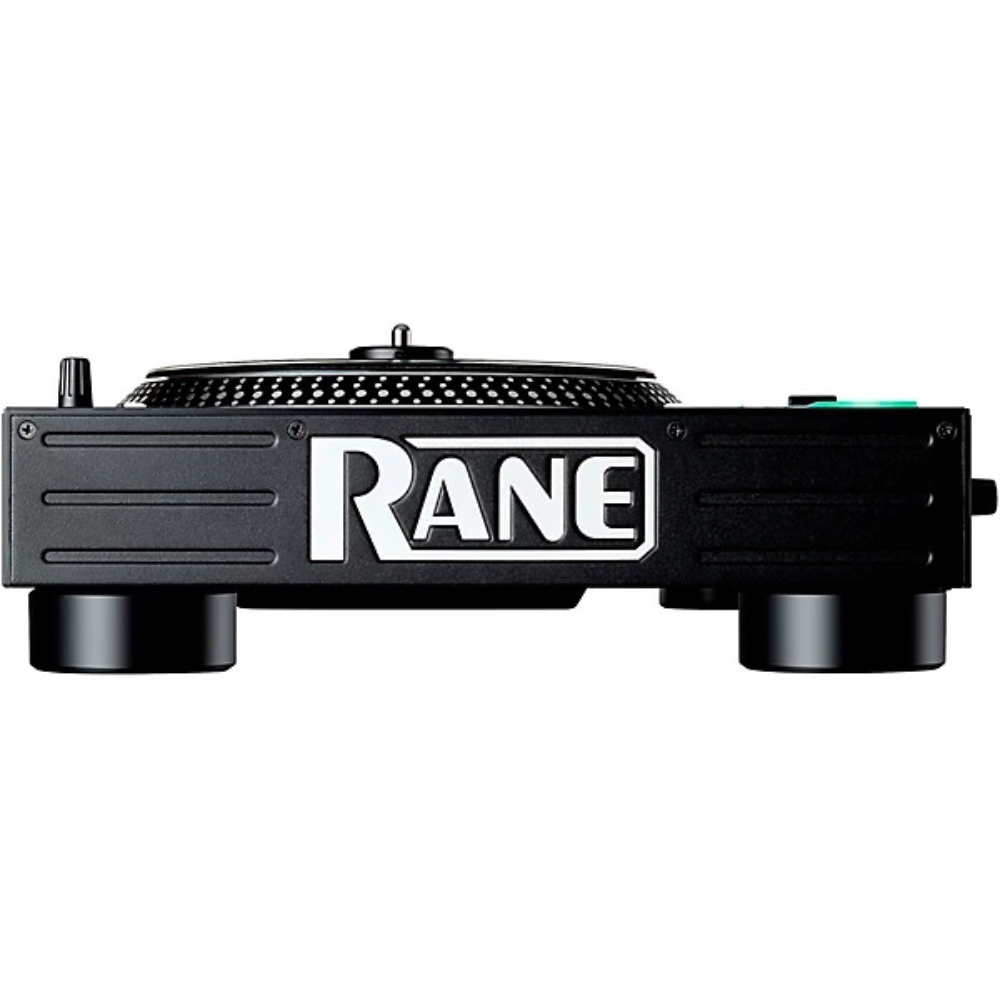

RANE ONE Professional Motorized DJ Controller
Tactile Vinyl-Style Control with Powerful Digital DJ Performance
The RANE ONE Professional Motorized DJ Controller combines the tactile experience of traditional turntables with the flexibility of a modern digital DJ system. Built around two high-torque 7.2-inch motorized platters, the RANE ONE provides responsive, customizable control for scratching, mixing, cueing, and live performance.
With comprehensive I/O, integrated filters and EQs, 16 multi-function performance pads, dedicated effects controls, and Serato DJ Pro integration, the RANE ONE is designed to give DJs hands-on control over their music in a professional, portable format.
Key Features
7.2-Inch High-Torque Motorized Platters
Two 7.2-inch motorized platters deliver a responsive, vinyl-like playing experience. Customizable torque settings let DJs adjust the feel to suit their preferred mixing and scratching style.
The sturdy acrylic surfaces are designed for intensive DJ performance, while classic plunger-style start/stop buttons provide a traditional turntable-inspired touch.
16 Multi-Function Performance Pads
Sixteen velocity-sensitive performance pads provide direct access to a wide range of creative performance functions.
Use the pads to:
- Trigger Hot Cues
- Launch saved loops
- Perform Loop Rolls
- Trigger samples
- Slice beats
- Access Serato Scratch Bank
- Control multiple performance modes
Dedicated Effects Controls
Six dedicated effects buttons and two aluminum paddle controls provide hands-on access to software effects. DJs can trigger and manipulate effect combinations during builds, drops, transitions, and other live performance moments.
MAG FOUR Crossfader
The ultra-light MAG FOUR crossfader provides precise control for cuts and scratch techniques. Its tension can be adjusted, with independent contour and reverse controls for personalized performance.

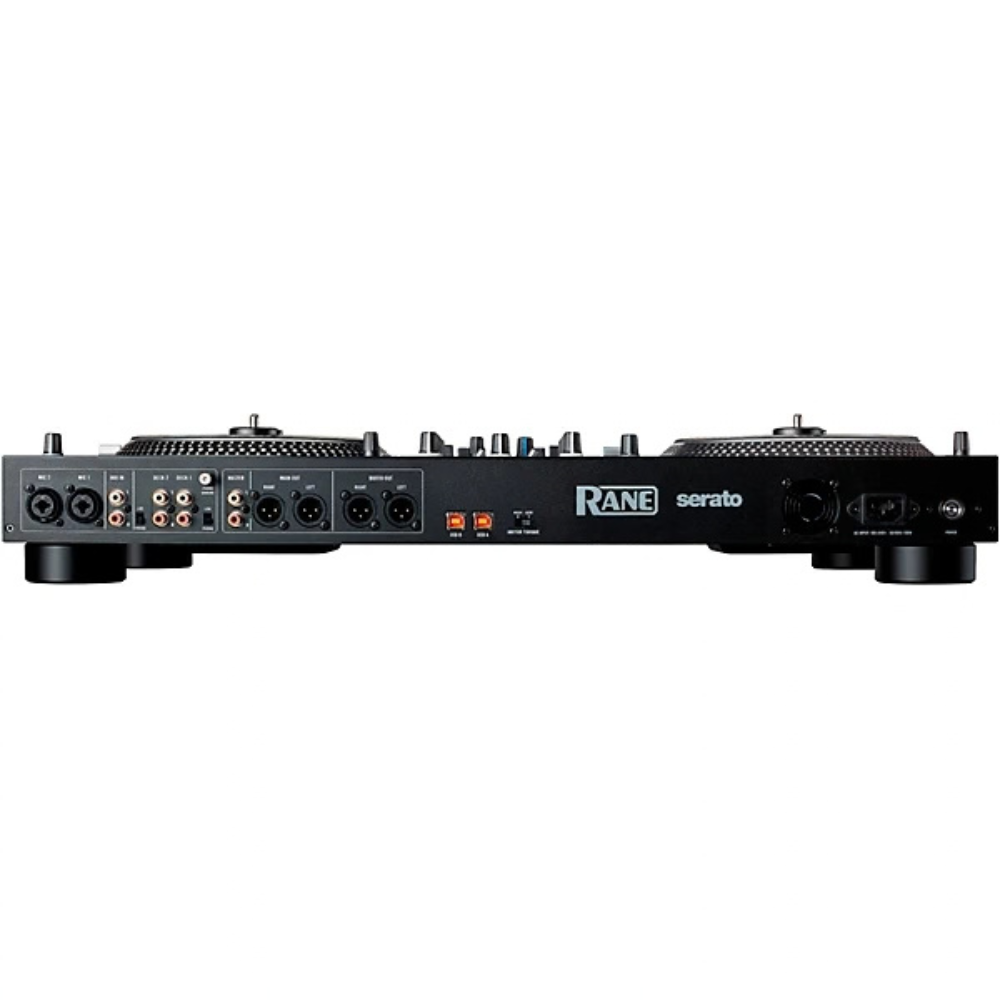

Comprehensive Connectivity
The RANE ONE provides extensive connectivity for professional DJ setups, including switchable line/phono inputs, multiple microphone connections, auxiliary input, booth output, and professional XLR main outputs.
Serato DJ Pro Integration
The RANE ONE integrates with Serato DJ Pro, providing software-based control over your digital music library and performance tools.
Sound-Shaping Controls
Each deck includes dedicated 3-band EQ, high-pass/low-pass filtering, and loop controls for shaping your mix and creating transitions.
Turntable-Style Start/Stop
Classic plunger-style start/stop controls complement the motorized platters and reinforce the traditional turntable-style performance experience.
Connectivity
Inputs
| Input | Details |
|---|---|
| Microphone 1/2 | Combo XLR/1/4″ TRS, Mic/Line Switchable |
| Analog Gain | 25 dB |

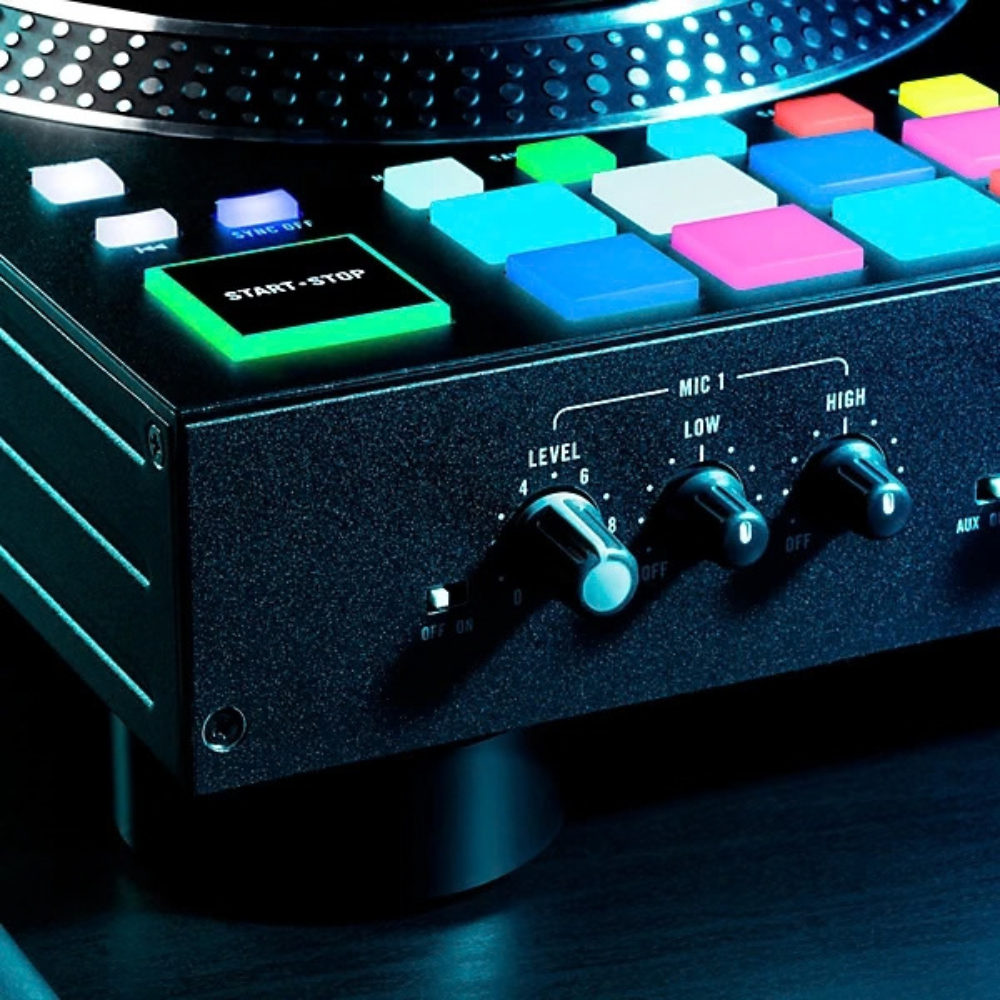

| Maximum Mic Input | 110 mV |
| Mic Gain Trim | Off to +26 dB |
| Mic Tone Control | 2-Band |
| Aux Input | RCA Stereo Pair |
| Aux Maximum Input | 4 Vrms |
| Aux Gain Trim | Off to +12 dB |
| Aux Tone Control | 2-Band |
| CD/Phono Inputs 1/2 | RCA Stereo Pairs, Switchable |
| CD Input | Line |
| CD Maximum Input | 4 Vrms |
| CD Gain Trim | Off to +12 dB |
| CD Tone Control | 3-Band, Full-Cut to +10 dB |
| Phono | RIAA |
| Phono RIAA Curve | ±0.25 dB |
| Phono Gain @ 1 kHz | 31.5 dB |
| Phono Maximum Input @ 1 kHz | 106 mV |
Outputs
| Output | Details |
|---|---|
| Main | XLR |
| Main Maximum Output | 8 Vrms |
| Booth | XLR |
| Booth Maximum Output | 8 Vrms |
| Master | RCA Stereo Pair |
| Master Maximum Output | 4 Vrms |
| Headphones | 1/4″ & 1/8″ TRS |
| Headphone Maximum Output Voltage | 4 Vrms |
| Headphone Output Power | 50 mW @ 50 Ω |
Digital Audio Specifications
| Specification | Details |
|---|---|
| A/D & D/A Converters | Cirrus Logic |
| Converter Resolution | 24-bit PCM |
| Sampling Rate | 48 kHz |
| Digital Signal Processing | 32-bit Floating Point, Double Precision |
| ADC Dynamic Range | 113 dB |
| DAC Dynamic Range | 113 dB |
| CD Input to Analog Output | 110 dB |
| CD Input to USB Output | 113 dB |
| USB Input to Analog Output | 113 dB |
Audio Performance
| Specification | Details |
|---|---|
| Main Output THD+N | 0.004% |
| Booth Output THD+N | 0.004% |
| Master Output THD+N | 0.004% |
| CD Input THD+N | 0.004% |
| Main Frequency Response | Flat |
| Booth Frequency Response | Flat |
| Master Frequency Response | Flat |
| Headphone Dynamic Range | 108 dB |
| Phono Dynamic Range | 102 dB |
| Aux Dynamic Range | 114 dB |
Performance Controls
Performance Pads
| Feature | Details |
|---|---|
| Total Pads | 16 |
| Pads Per Deck | 8 |
| Pad Type | Velocity-Sensitive |
| Backlighting | Multi-Color |
| Modes | 8 Per Pad |
Faders
| Control | Details |
|---|---|
| Crossfader | 1 MAG FOUR |
| Crossfader Tension | Adjustable |
| Crossfader Contour | Independent |
| Crossfader Reverse | Independent |
| Channel Faders | 2 Standard |
| Channel Fader Contour | Shared |
| Channel Fader Reverse | Shared |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W x D x H) | 26.5 x 13.6 x 4.9 in |
| Dimensions (Metric) | 674 x 345 x 124.3 mm |
| Weight Including Platters | 23.55 lb / 10.68 kg |
| Power Connection | IEC |
| Power Supply | 100–240V, 50/60 Hz |
| Power Consumption | 50W |
| USB Computer Connections | 2 x USB Type-B |
Included Features
- Two 7.2-inch motorized platters
- Quick-release acrylic platter disks
- MAG FOUR crossfader
- 16 multi-function performance pads
- Six dedicated software FX buttons
- Two aluminum FX paddles
- High/low-pass filters
- 3-band EQs
- Dedicated loop controls
- Serato Scratch Bank support
- XLR main output
- XLR booth output
- Two line/phono inputs
- Two TRS/XLR microphone inputs
- Two USB computer connections
- Turntable-style start/stop controls
- Serato DJ Pro integration
Ideal Applications
The RANE ONE is well suited for:
- Professional DJ performances
- Scratch and turntablism
- Club and venue performances
- Mobile DJ setups
- Open-format DJing
- Hip-hop and scratch performances
- Live mixing
- Home DJ practice
- Serato-based DJ systems
- Portable professional DJ rigs
Professional Connectivity
The RANE ONE is designed to accommodate a wide range of DJ sources and performance equipment. Switchable line/phono inputs allow connection of compatible CDJs or turntables, while dual USB computer connections support flexible digital DJ configurations.
The system also includes microphone inputs, an auxiliary input, dedicated booth output, professional XLR main outputs, and dual headphone connections.
Sound-Shaping & Performance
With dedicated 3-band EQs, high- and low-pass filters, loop controls, performance pads, and software effects, the RANE ONE provides extensive hands-on tools for building transitions and shaping your sound.
The combination of motorized platters and digital performance controls allows DJs to move between traditional turntable techniques and modern software-based performance functions from a single controller.
Why Choose the RANE ONE?
The RANE ONE Professional Motorized DJ Controller brings together high-torque motorized platters, vinyl-style controls, advanced performance pads, professional audio connectivity, and Serato DJ Pro integration.
With its 7.2-inch motorized platters, MAG FOUR crossfader, 16 multi-function pads, dedicated FX paddles, comprehensive line/phono and microphone inputs, professional XLR outputs, and portable 23.55-pound design, the RANE ONE is built for DJs who want tactile control without giving up the flexibility of a modern digital performance system.
