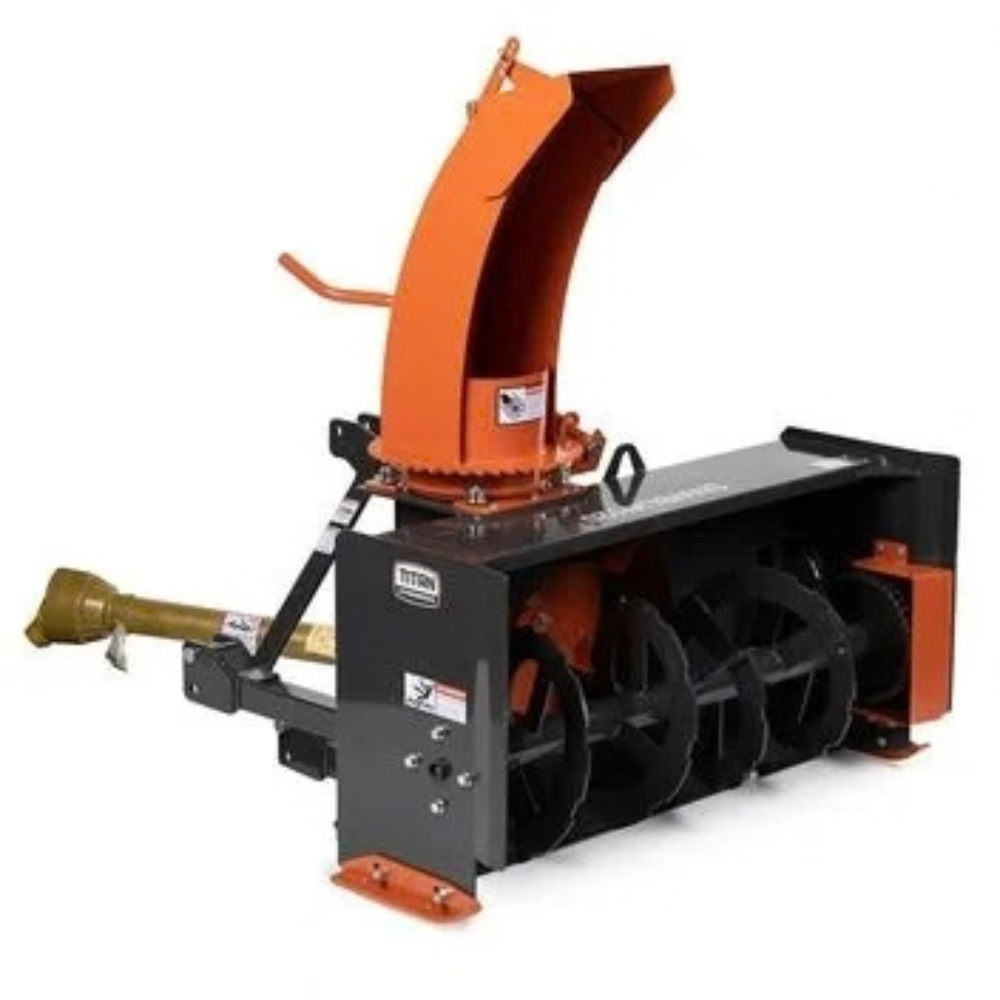

47-Inch 3-Point PTO Snow Blower Attachment

Heavy-Duty Steel Construction, 540 RPM PTO & 180° Manual Chute Rotation

Clear heavy snow quickly and efficiently with this 47-inch 3-Point PTO Snow Blower Attachment, designed for Category 1 and Category 3 three-point hitch tractors. Built for sidewalks, parking lots, driveways, and demanding winter conditions, this snow blower combines durable steel construction with a powerful PTO-driven snow-clearing system.

The heavy-duty steel ribbon auger feeds snow into a four-blade fan, while the robust chain-and-sprocket drive and gearbox efficiently transfer tractor PTO power to the blower. A 180-degree rotating manual hand-crank chute provides directional control, while adjustable steel skid shoes help maintain the desired operating height over different surfaces.

Designed for tractors with a minimum of 20 HP, the unit operates at the standard 540 RPM PTO speed and includes a shear-bolt PTO shaft for direct power take-off connection.

Key Features

47-Inch Cutting Width

The 47-inch cutting width provides substantial snow-clearing coverage, making the attachment suitable for sidewalks, parking areas, driveways, and other larger snow-removal applications.

3-Point Hitch Compatibility

Designed for Category 1 and Category 3 three-point hitch tractors, providing broad tractor compatibility for PTO-powered snow removal.

PTO-Powered Performance

The snow blower connects directly to the tractor’s PTO system using the included shear-bolt PTO shaft. The 540 RPM PTO transfers power through the gearbox to the fan for effective snow discharge.

Heavy-Duty Steel Ribbon Auger

A 15.5-inch steel ribbon auger efficiently gathers and feeds snow toward the fan assembly. The 0.3-inch auger thickness provides a durable design for demanding winter conditions.

Four-Blade Fan

The four-blade fan helps move snow through the blower and direct it toward the discharge chute. The fan features a 19-inch diameter and 3/16-inch blade thickness.

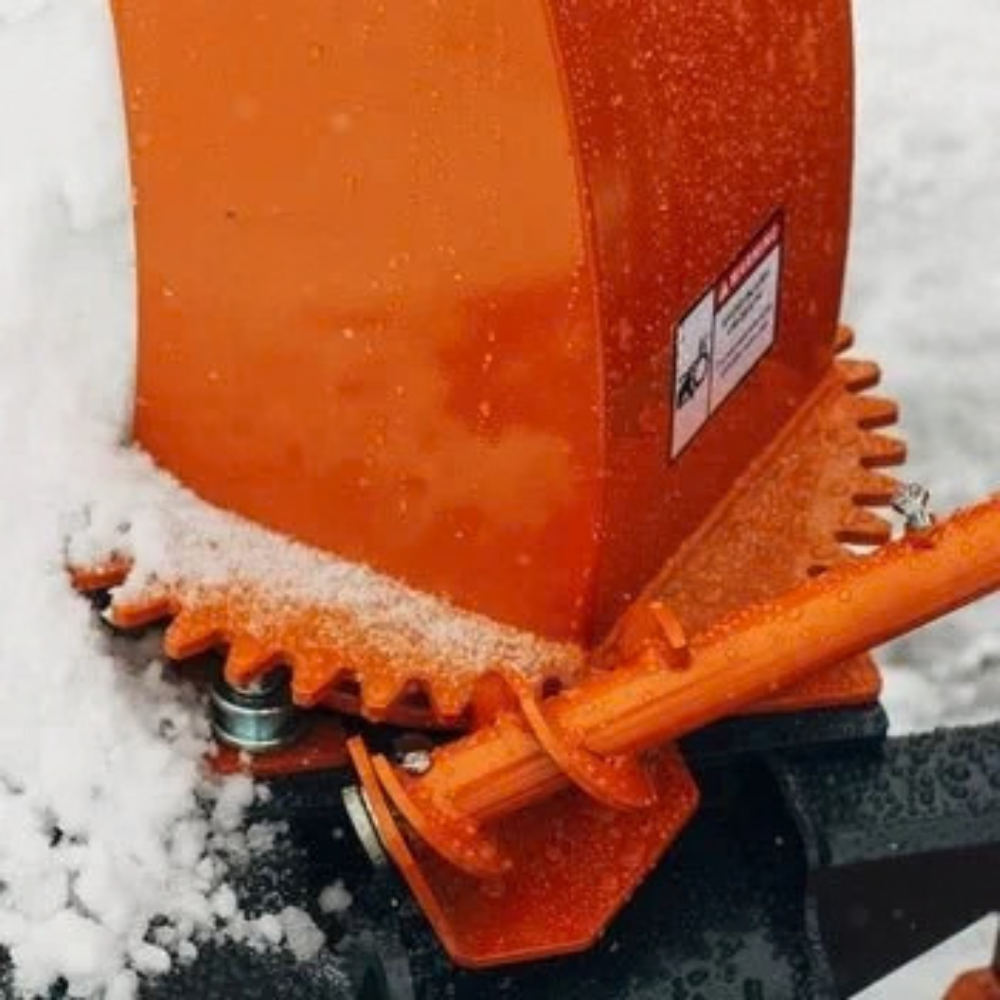

180° Manual Chute Rotation

The manual hand-crank chute rotates through 180 degrees, allowing the operator to direct discharged snow where needed.

Adjustable Steel Skid Shoes

Heavy-duty adjustable steel skid shoes help control the blower’s operating height and provide clearance between the attachment and the ground surface.

Chain & Sprocket Drive

A robust 1-inch roller chain drive transfers power through the snow blower assembly for dependable operation.

Durable Powder-Coated Finish

The snow blower is constructed from 3/16-inch steel and finished in a powder-coated grey and orange finish for added durability.

Specifications

General Specifications

Auger & Fan

Chute

Drive & PTO

Recommended Applications

This 47-inch PTO snow blower attachment is well suited for:

• Sidewalk snow removal
• Parking lots
• Driveways
• Private roads
• Farm and rural properties
• Commercial properties
• Heavy winter conditions
• Tractor-based snow-clearing operations

Package Includes

• 47-inch 3-Point PTO Snow Blower Attachment
• Shear-Bolt PTO Shaft
• Manual hand-crank chute system
• Adjustable steel skid shoes

Why Choose the 47-Inch 3-Point PTO Snow Blower?

The 47-Inch 3-Point PTO Snow Blower Attachment combines a wide clearing path, heavy-duty steel construction, tractor-powered operation, and adjustable snow discharge in a robust attachment designed for demanding winter work. With a 15.5-inch ribbon auger, four-blade 19-inch fan, 540 RPM PTO operation, and 180-degree manual chute rotation, it provides an efficient solution for clearing snow with compatible Category 1 or Category 3 tractors.
