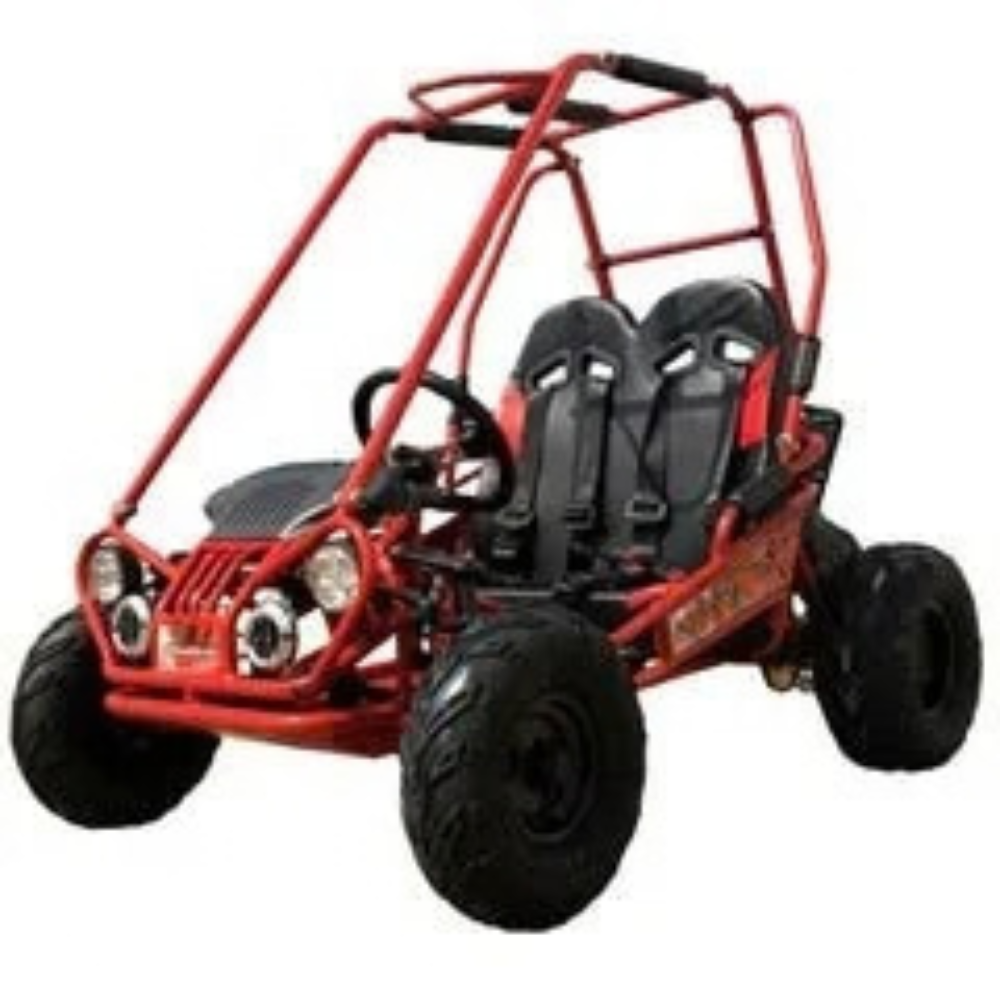

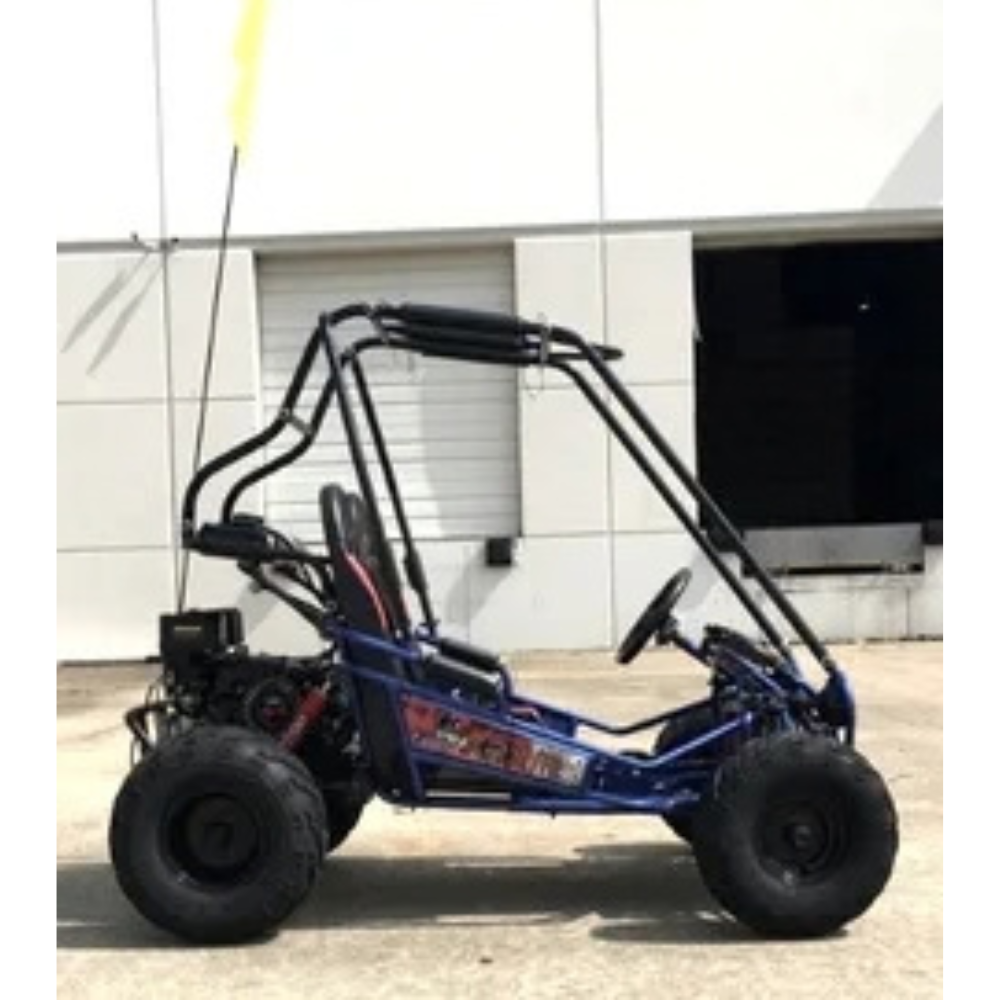

TrailMaster Mini XRX+ 163cc 7HP Gas Go-Kart – Automatic with Reverse

Youth-Friendly Off-Road Go-Kart with Adjustable Speed Control & Remote Kill Switch

The TrailMaster Mini XRX+ is designed to grow with young riders, combining a generously sized frame, wider seating, adjustable pedals, and a sliding seat to accommodate children from approximately ages 4–10.

Powered by a reliable 163cc, 7HP air-cooled 4-stroke engine, the Mini XRX+ features electric start with a pull-start backup and a fully automatic transmission with reverse. Its two-wheel-drive system uses a centrifugal clutch for straightforward operation, while full suspension helps provide a smoother ride across suitable off-road terrain.

Parents can control the kart’s performance as their child’s confidence develops. Adjustable throttle limiters allow the top speed to be restricted to approximately 8–13 mph, while a remote kill switch provides the ability to shut down the engine from a distance.

With dual high-back seats, a 5-point safety harness, hydraulic rear disc brake, LED headlight, horn, cargo rack, and heavy-duty frame, the Mini XRX+ is built for supervised recreational off-road riding.

Key Features

Designed for Growing Riders

The Mini XRX+ is sized to accommodate young riders while providing room for adjustment as they grow.

• Recommended for kids ages 4–10
• Generously sized frame
• Wider seat
• Tall stance
• Sliding adjustable seat
• Adjustable pedals
• Seat-to-pedal range: 30–35 inches
• Pedal adjustment: approximately ±3–6 inches

Parent-Controlled Speed Limiting

Two adjustable throttle limiters allow parents to restrict the kart’s top speed while young riders develop confidence and experience.

• Adjustable throttle limiters
• Approximate adjustable range: 8–13 mph
• Maximum listed speed limit: approximately 13 mph
• Allows performance to be adjusted as rider confidence increases

Remote Kill Switch

The remote shut-off system provides parents with an additional level of control during supervised riding.

• Remote engine shut-off
• Instant shutdown capability
• Allows the kart to be stopped remotely

163cc 7HP 4-Stroke Engine

The Mini XRX+ is powered by an air-cooled 4-stroke engine designed for recreational off-road use.

• 163cc displacement
• 7HP @ 3,600 RPM
• Single-cylinder, 4-stroke design
• Air-cooled
• Approx. 8 lb-ft torque @ 3,600 RPM
• Electric start
• Pull-start backup

Fully Automatic Transmission with Reverse

The automatic drivetrain makes the Mini XRX+ straightforward to operate for young riders.

• Fully automatic transmission
• Reverse gear
• Centrifugal clutch
• Chain drive
• Two-wheel drive
• Live rear axle

Full Suspension

The suspension system is designed to help absorb bumps and improve ride comfort over appropriate recreational terrain.

• Dual A-arm front suspension
• Oil-dampened shocks
• Rear coil-over shocks
• Full suspension system

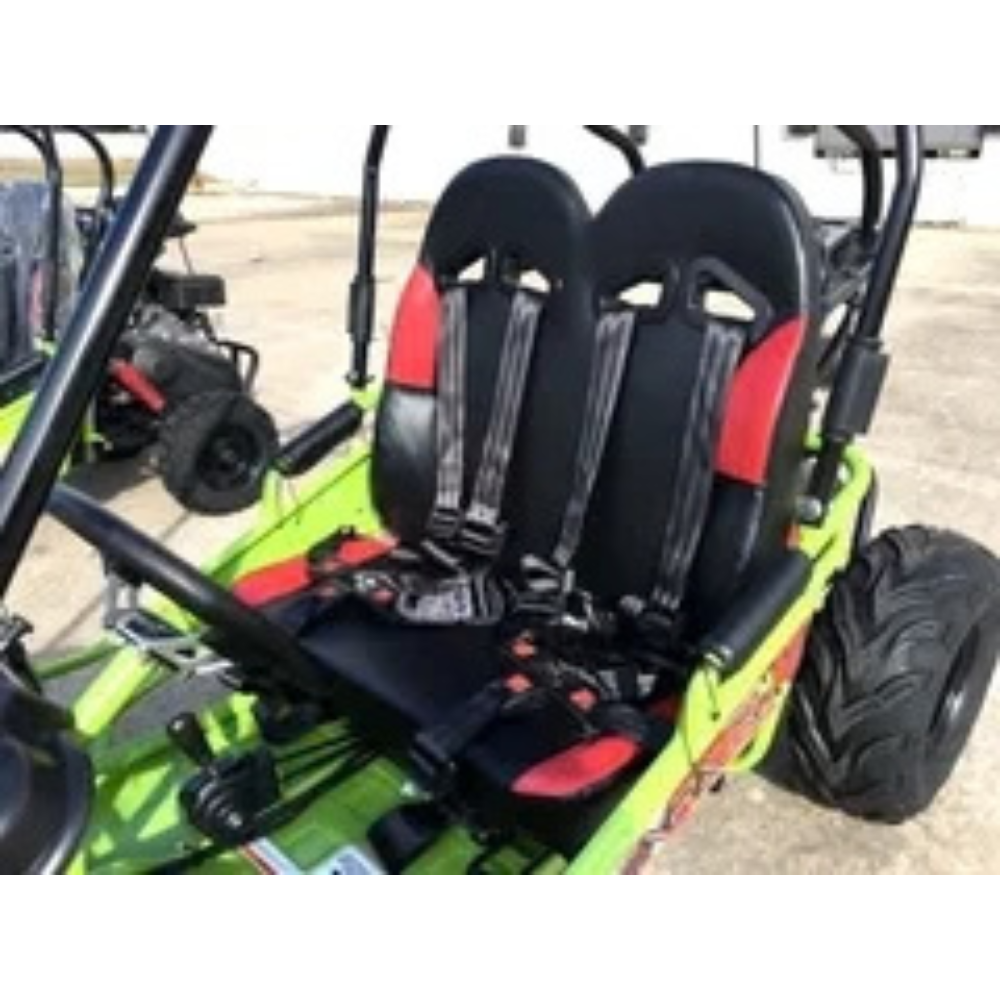

Dual High-Back Seats & 5-Point Harness

The kart features two high-back seats and a 5-point safety harness system for its two-rider seating configuration.

• Dual high-back seats
• 5-point safety harness
• Designed for two riders
• Adjustable seating for improved fit

Always follow the manufacturer’s rider, passenger, weight, and harness requirements.

Hydraulic Disc Braking

A hydraulic rear disc brake provides responsive stopping performance.

• Hydraulic rear disc brake
• Designed for controlled stopping
• Suitable for supervised recreational riding

Heavy-Duty Off-Road Construction

The Mini XRX+ is built around a rugged frame and live rear axle for recreational trail use.

• Heavy-duty frame
• Live rear axle
• Two-wheel drive
• Rugged off-road construction
• 4.0-inch minimum ground clearance

Trail-Ready Accessories

Additional equipment adds convenience and visibility during recreational rides.

• LED headlight
• Horn
• Rear cargo rack
• Rugged all-terrain tires
• Adjustable seating system

Specifications

Performance & Speed Control

The Mini XRX+ features adjustable throttle limiting designed to give parents greater control over the kart’s performance.

The stated maximum speed is approximately 13 mph, with throttle limiters allowing the speed to be restricted to approximately 8–13 mph.

Actual speed can vary depending on rider weight, terrain, surface conditions, vehicle condition, and other operating factors.

Rider Capacity & Seating

The Mini XRX+ is designed for young riders approximately 4–10 years old, with an adjustable seating system intended to accommodate growing children.

• Dual high-back seats
• 5-point harness
• Adjustable sliding seat
• Adjustable pedals
• 30–35-inch seat-to-pedal range
• Approximately 300 lb maximum load

Because the kart is equipped with seating for two riders, always follow the manufacturer’s specific requirements regarding passenger age, combined weight, and seating configuration.

Fuel & Engine

The Mini XRX+ uses a 163cc 4-stroke gasoline engine with a 1.2-gallon fuel tank.

• 163cc displacement
• 7HP @ 3,600 RPM
• Air-cooled
• 4-stroke
• Electric start
• Pull-start backup
• 1.2-gallon fuel capacity

Use only the fuel and engine oil specified by the manufacturer and follow the recommended maintenance schedule.

Safety & Parent Control

The Mini XRX+ incorporates several features intended to support supervised youth riding.

• Adjustable throttle limiters
• Remote kill switch
• 5-point safety harness
• Hydraulic rear disc brake
• Dual high-back seats
• LED headlight
• Horn
• Full suspension
• Heavy-duty frame

Parents or responsible adults should supervise young riders and establish appropriate speed limits and riding areas before operation.

Safety & Operating Guidance

• Recommended for children ages 4–10, subject to manufacturer requirements.
• Always wear a properly fitted helmet and appropriate protective riding gear.
• Use the 5-point harness correctly before every ride.
• Adult supervision is strongly recommended for all young riders.
• Begin with the lowest appropriate speed setting and increase gradually as the rider develops experience.
• Test the remote kill switch before allowing the rider to operate the kart.
• Inspect the brakes, steering, tires, suspension, chain, harness, and frame before each ride.
• Do not exceed the approximately 300 lb maximum load.
• Follow the manufacturer’s requirements for two-person seating and combined rider weight.
• Avoid steep terrain, obstacles, or surfaces beyond the kart’s capabilities.
• Keep hands, feet, clothing, and other objects away from moving components.
• Refuel only with the engine stopped and sufficiently cooled, away from ignition sources.
• Operate only in appropriate private or designated recreational riding areas.

California / CARB Notice

The Mini XRX+ is NOT CARB-compliant. According to the supplied specification, it is intended for private-property use only in California.

Before purchasing or operating the vehicle, verify current local requirements and restrictions applicable to your location.

Maintenance

Regular maintenance is important for safe and reliable operation.

Recommended maintenance includes:

• Check engine oil regularly
• Service the engine according to the manufacturer’s schedule
• Inspect and maintain the chain
• Check brake operation and hydraulic components
• Inspect tires and maintain proper pressure
• Check suspension components
• Lubricate applicable suspension points
• Inspect steering and fasteners
• Check the battery and starting system
• Inspect the harness, seats, and frame
• Verify the remote kill switch and throttle limiter operation

Why Choose the TrailMaster Mini XRX+?

The TrailMaster Mini XRX+ combines youth-focused adjustability with the performance and features of a gas-powered off-road go-kart. Its 163cc 7HP engine, automatic transmission with reverse, adjustable speed control, remote kill switch, full suspension, dual seating, 5-point harness, hydraulic disc brake, and rugged construction make it a versatile platform for supervised recreational riding as children gain confidence and experience.
