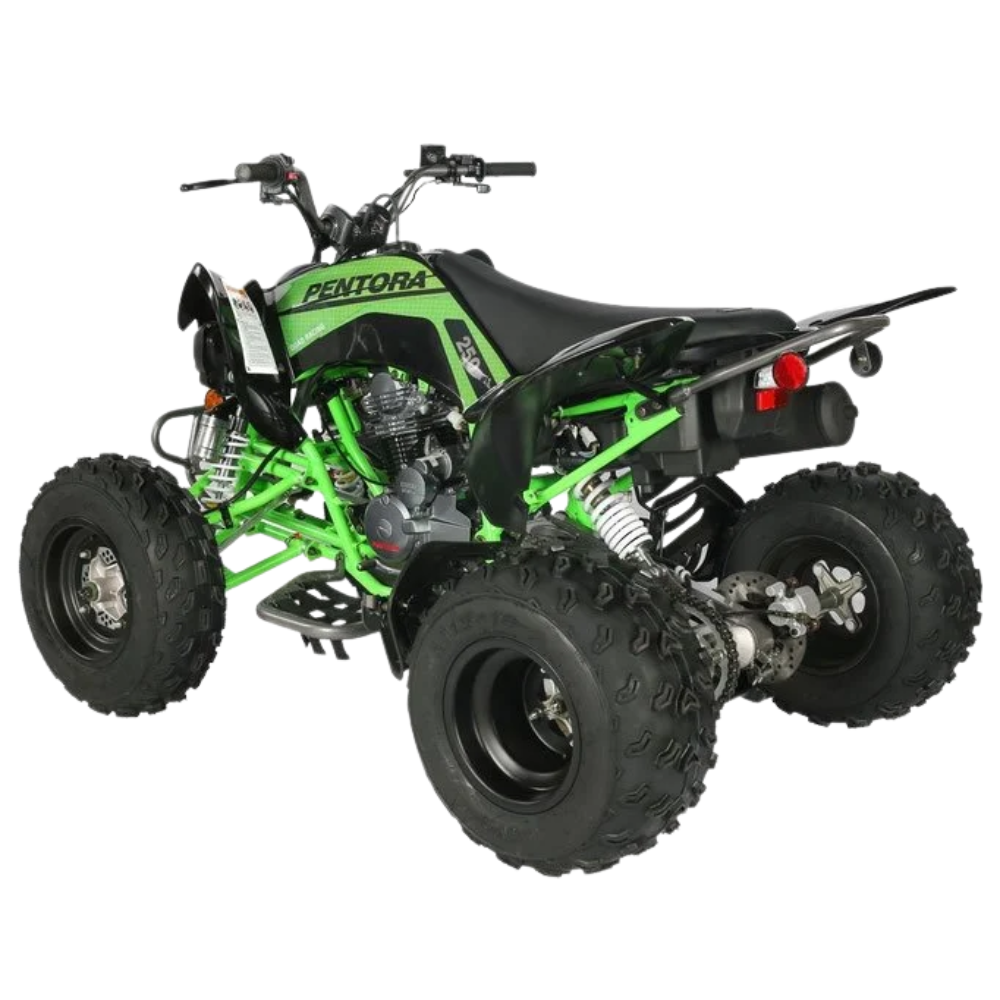

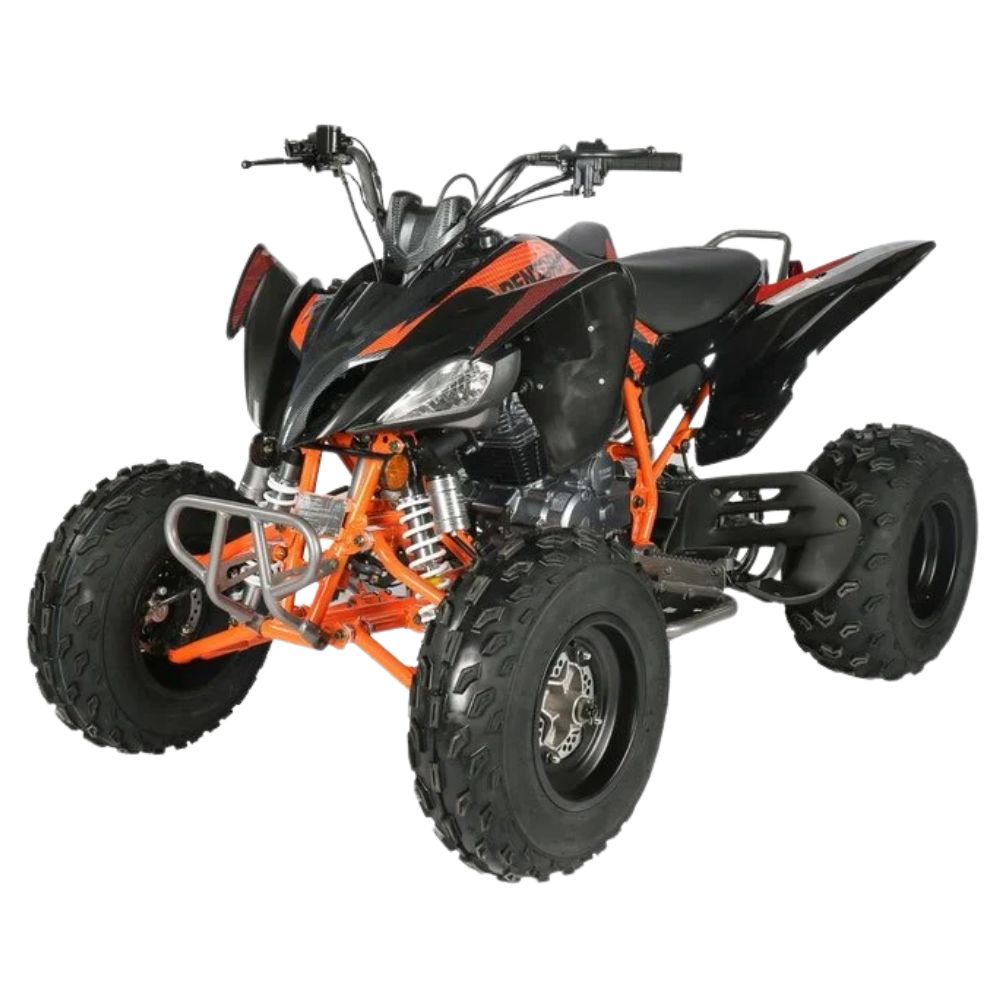

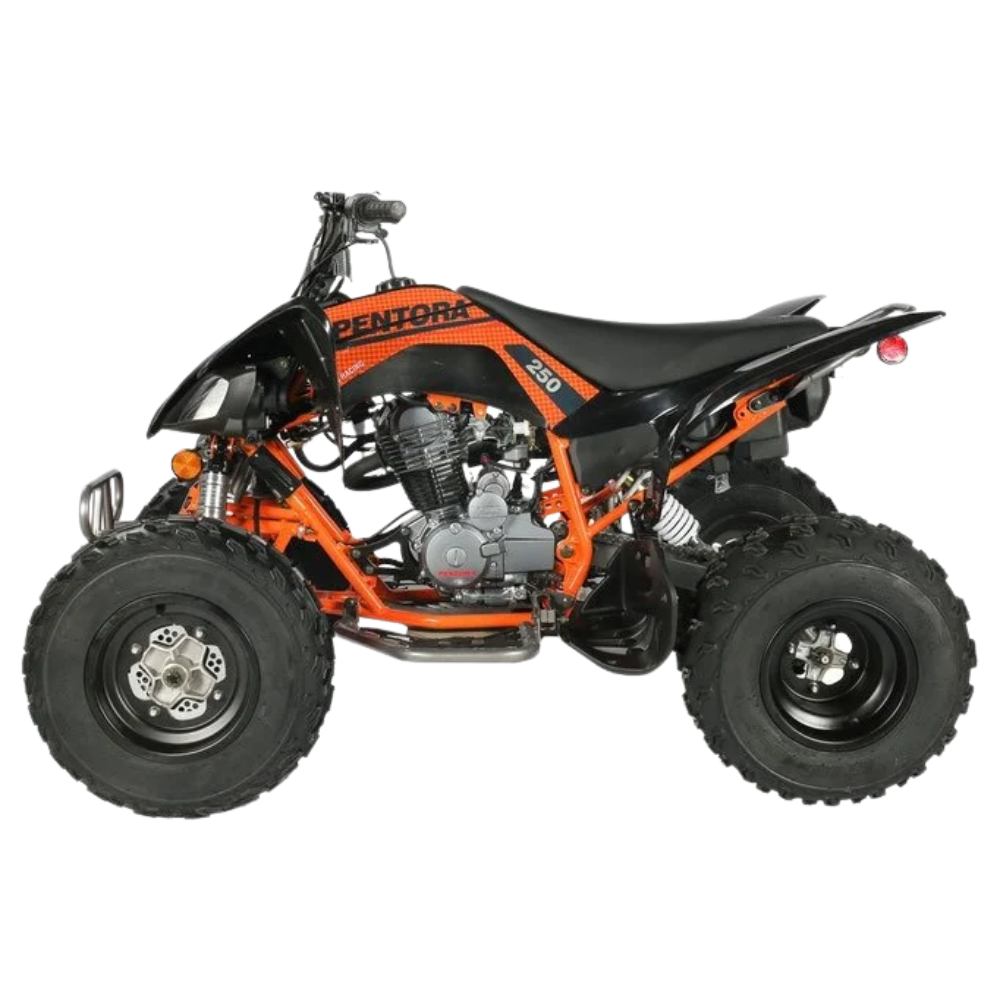

Built around a Loncin LC166FMM single-cylinder 4-stroke engine, this sport-oriented ATV combines a manual transmission, electric start, hydraulic disc brakes, oil-damped suspension, and large all-terrain tires. With a listed maximum speed of 70 km/h (approximately 43.5 mph) and a rated load of 100 kg (220 lbs.), it is designed for recreational off-road riding and capable trail use.

The ATV features a compact chassis, 135 ± 15 mm minimum ground clearance, front and rear hydraulic disc brakes, and an approximately 21° climbing capability. Its 9-liter fuel tank and 12V/7Ah battery support practical operation for recreational riding.

Key Features

Loncin 223cc 4-Stroke Engine

The ATV is powered by a Loncin LC166FMM engine featuring a single-cylinder, air-cooled, 4-stroke configuration with two valves.

• Engine model: LC166FMM
• Engine brand: Loncin
• 223cc displacement
• Single-cylinder configuration
• Air-cooled
• 4-stroke, 2-valve design
• Bore × stroke: 65.5 × 66.2 mm
• Compression ratio: 9.0:1
• Maximum power: 12 kW ± 5% @ 7,500 rpm
• Maximum torque: 17 N·m ± 5% @ 6,000 rpm
• Minimum no-load speed: 1,500 rpm ± 10%
• Minimum fuel consumption rate: 354 g/kW·h
• Recommended fuel: RQ90 or higher

Manual Transmission & Chain Drive

The manual drivetrain provides direct rider control over power delivery and gear selection.

• Manual clutch
• Manual transmission
• Chain final drive
• Electric starting system
• CDI ignition
• PZ30 carburetor

Hydraulic Disc Brakes

Hydraulic disc brakes are fitted at both the front and rear to provide controlled braking performance.

• Front hydraulic disc brake
• Rear hydraulic disc brake
• Front hand-brake operation
• Rear foot-brake operation

Oil-Damped Suspension

The front and rear suspension systems use oil-damped components designed to absorb impacts over uneven terrain.

• Front oil-damped suspension
• Rear oil-damped suspension
• Front suspension length: 350 mm
• Rear suspension length: 390 mm
• Minimum ground clearance: 135 ± 15 mm

Sport ATV Tires & Wheels

The ATV uses different front and rear wheel/tire dimensions for its off-road configuration.

• Front rim: 10 × 5.5 AT
• Rear rim: 9 × 8.0 AT
• Front tire: AT20 × 7.0-10
• Rear tire: AT19 × 10-9

Electric Start & 12V Electrical System

Electric starting provides convenient engine operation, supported by a 12V battery system.

• Electric start
• CDI ignition
• 12V / 7Ah battery
• Front light: 12V 18/18W

Off-Road Capability

The supplied performance specifications indicate a maximum climbing capability of approximately 21°, along with a listed parking performance of ≥18°.

• Maximum speed: 70 km/h
• Climbing performance: 21°
• Parking performance: ≥18°
• Turning angle: <45°
• Minimum turning circle diameter: 5,900 ± 500 mm

Specifications

Engine

Transmission & Brakes

Suspension & Tires

Dimensions

Weight & Capacity

Performance

Emissions & Noise

Packaging Information

Ideal Applications

This ATV is suited for:

• Recreational off-road riding
• ATV trails
• Private-property riding
• Outdoor recreation
• Sport-oriented trail use
• Off-road terrain exploration

Rider Safety & Guidance

This ATV’s manual transmission, approximately 70 km/h maximum listed speed, and 21° climbing specification make appropriate rider training and protective equipment important. Always wear a properly fitted helmet and suitable protective riding gear, follow applicable local ATV regulations, and operate the vehicle within your experience level and the conditions of the terrain.

Why Choose This 250-Class ATV?

This ATV combines a Loncin 223cc air-cooled 4-stroke engine, manual transmission, electric start, chain drive, hydraulic disc brakes, oil-damped suspension, and all-terrain tires in a compact sport-oriented package.

With a listed 70 km/h maximum speed, 21° climbing capability, 9-liter fuel tank, 100 kg rated load, and front and rear hydraulic disc brakes, it provides a practical platform for recreational off-road riding and trail use.
