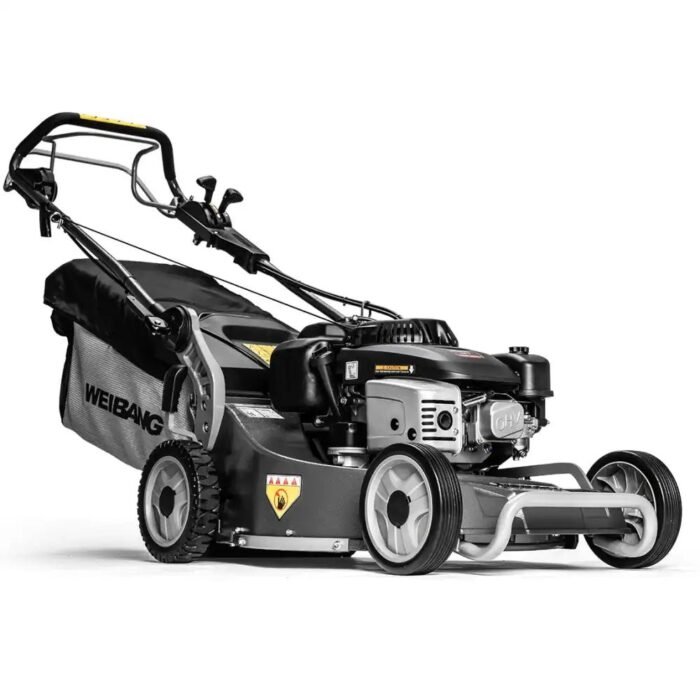

Weibang Virtue 53 ASDX BBC LV Shaft Drive Lawnmower

Features:

• Blade Brake Clutch (BBC): This model features the WEIBANG PRO Blade Brake Clutch system. The BBC system allows the user to disengage the cutting blade while the engine remains running. This is a crucial convenience feature for commercial users, as it means the operator can stop the blades when emptying the large 70L grass collector or when crossing gravel paths without having to stop and restart the engine.
• Heavy-Duty Shaft Drive System: The drive system is a key differentiator from typical mowers. In a traditional lawnmower, the gearbox is driven by a belt coming from the engine. In contrast, this machine uses a solid steel drive shaft for direct power transfer from the engine to the gearbox. The benefits of this system are substantial:
  • – Direct Power Transfer ensures no loss of performance.
  • – Maximum Reliability means less downtime and higher productivity.
  • – Minimal Maintenance is required, as there are no belts to replace or grass to clean from under a belt cover.
• The system is powered by either a 224cc Low Vibration VCT Engine.
• Vibration Control Technology (VCT): Operator comfort is a major focus for this professional machine. The integrated VCT engine dramatically reduces handle vibration levels, helping users avoid fatigue during long working days. The technology symbol is VCT V™.
• Versatile Cutting Options: The machine offers versatile cutting options from its robust 53cm (21″) aluminium deck, including collection and rear discharge. Clippings are directed into a large, 70L collector with a quick-attach design and airflow fabric. The operator can select the mode using a central lever with 11 cutting height positions (25mm to 76mm).
• Other durable features include quick-release adjustable handles and a heavy-duty front bumper.

Technical Specification:

• Type – 4 Wheeled Rotary
• Cutting Width – 53cm / 21inch
• Cutter Deck Material – Aluminium
• Suitable Area – up to 3000m²
• Drive – 3 Speed
• Drive Speed – 3 / 3.5 / 4.6 km/h
• Engine Model – WEIBANG XCV225S
• Engine Displacement (cc) – 224
• Engine Rated Power (kW/rpm) – 4.1 / 3100
• Fuel Tank Capacity (l) – 4.0
• Blade Protection – BBC
• Collector Capacity (l) – 70 – Inc. Airflow Fabric
• Rear Discharge – Yes
• Mulching – No
• Side Discharge – No
• Height Adjustment Type – Central Spring Assisted
• Height Adjustment Positions – 11
• Cutting Heights (mm) – 25 – 76
• Quick Release Handles – Adjustable Ratchet
• Service Position – Yes
• Storage / Transport Position – Yes
• Front Bumper – Yes
• Deck Protection – Inner & Outer
• Wheel Material (rim/tyre) – Aluminium / Rubber
• Wheel Size (mm) – F 203 / R 229
• Weight (kg)* – 63kg *Total Weight Including Accessories
• Dimensions (L x W x H mm) – 1650 x 585 x 1060
• Storage Dimensions (L x W x H mm) – 1050 x 585 x 470
• Vibration Level** (m/s²) – 4.6 **Uncertainty Factor 1.5 m/s²
• Noise Level (dB(A)) – 96
• Warranty (domestic/commercial) – 5 Years / 3 Years (T&Cs Apply)
