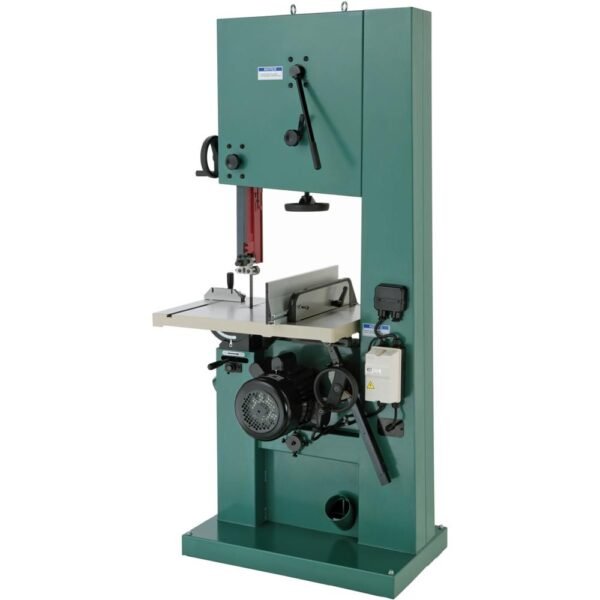

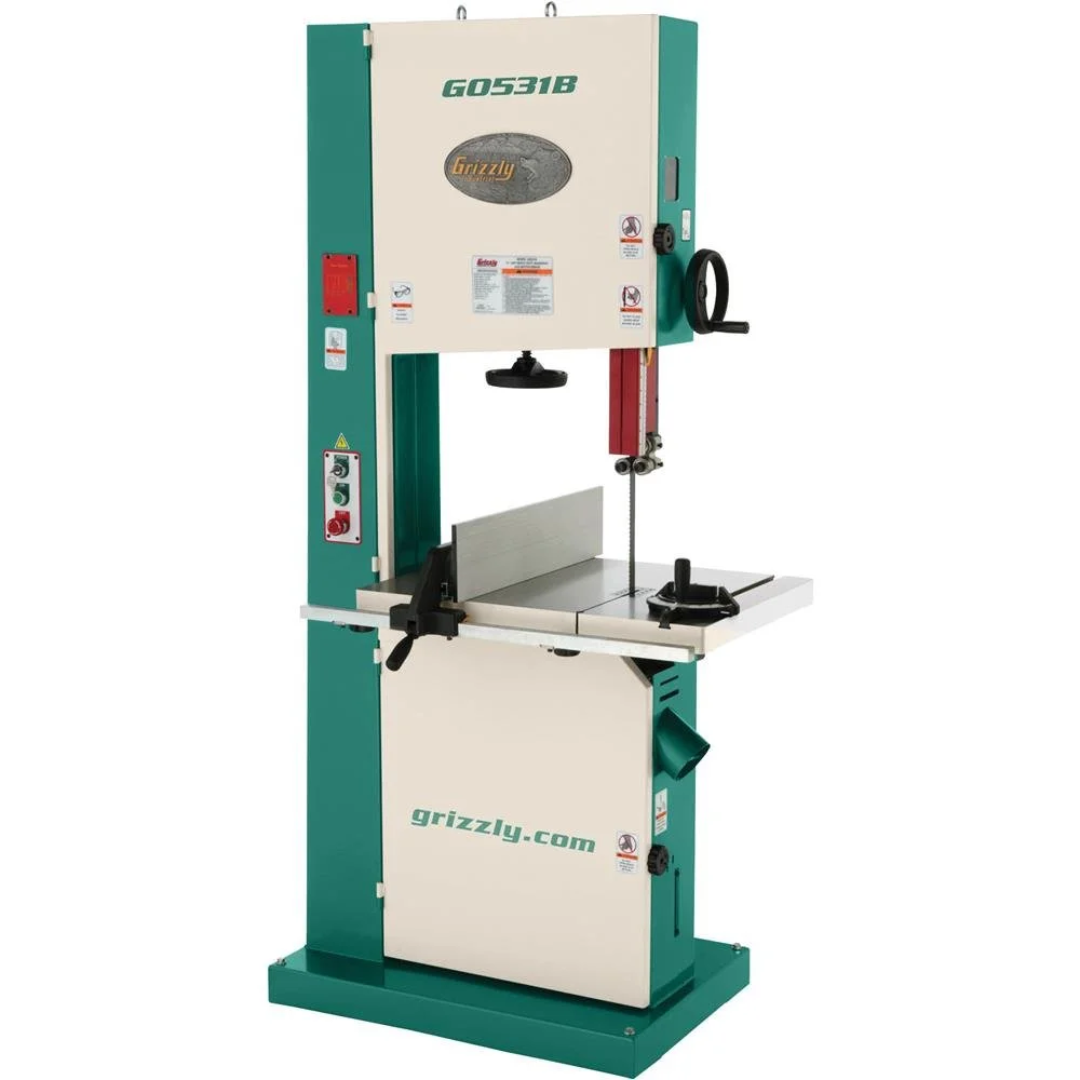

Grizzly G0531B 21 in. Industrial Bandsaw – 5 HP

Heavy-Duty Industrial Bandsaw with 5 HP TEFC Motor, 20 in. Throat & 14-1/2 in. Resaw Capacity

Built for demanding production environments, the Grizzly G0531B 21 in. Industrial Bandsaw combines a powerful 5 HP totally enclosed, fan-cooled (TEFC) motor with a massive cast-iron work table and heavy-duty structural components. Designed for all-day industrial operation, this bandsaw provides the capacity and stability needed for large workpieces and demanding resaw applications.

The extra-large 29-1/2 in. x 20-3/4 in. cast-iron table provides extensive workspace and supports workpieces up to 14 in. x 20 in. The rack-and-pinion table tilt system makes positioning the heavy table significantly easier while providing precise adjustment and reliable support.

Key Features

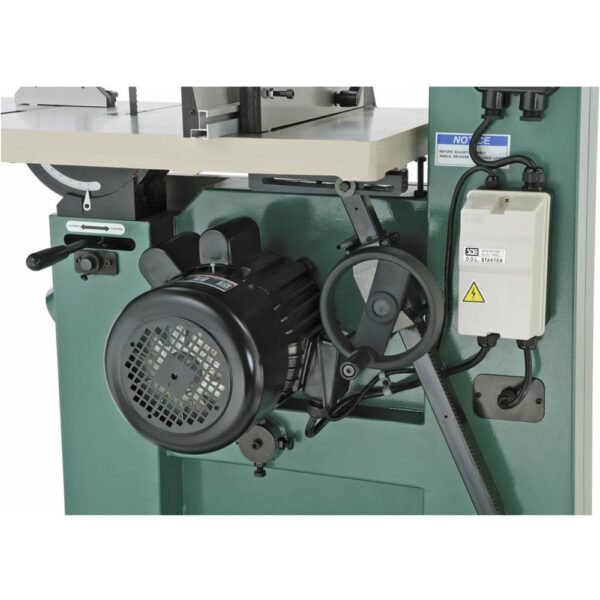

Industrial 5 HP TEFC Motor

The totally enclosed, fan-cooled motor is designed for demanding industrial environments and extended operation.

• Motor: 5 HP
• Voltage: 230V
• Phase: Single phase
• Current draw: 22A
• TEFC construction
• Designed for all-day operation

Large Cutting Capacity

The G0531B provides substantial throat and resaw capacity for large workpieces and production woodworking.

• Maximum throat: 20 in.
• Resaw capacity: 14-1/2 in.
• Blade speed: 4,600 FPM
• Blade length range: 164 in. to 165-1/2 in.

Extra-Large Cast-Iron Table

The oversized cast-iron table provides a broad, stable working surface for large workpieces.

• Table size: 29-1/2 in. x 20-3/4 in.
• Table thickness: 1-1/8 in.
• Floor-to-table height: 35-1/2 in.
• Table tilt: 5° left to 45° right

Rack-and-Pinion Table Tilt

The micro-adjusting rack-and-pinion tilt system makes it easier to position the large cast-iron table without manually lifting and holding it during adjustment. It provides controlled, precise table positioning for bevel and angled cuts.

Heavy-Duty Cast-Iron Trunnion

The robust cast-iron trunnion provides solid support beneath the table and helps resist flexing and twisting when heavy workpieces are positioned on the table.

The rack post also provides additional support and stability toward the rear of the table, particularly around the blade slot.

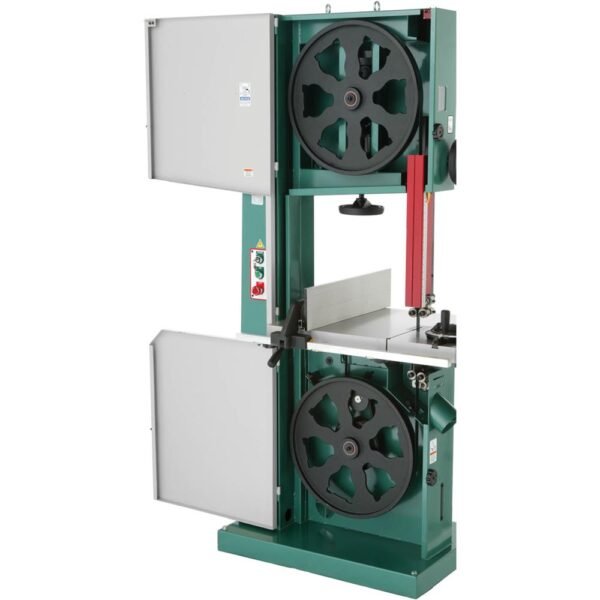

Computer-Balanced Cast-Iron Wheels

Heavy-duty computer-balanced cast-iron wheels with rubber tires are designed to provide stable operation and smooth blade movement.

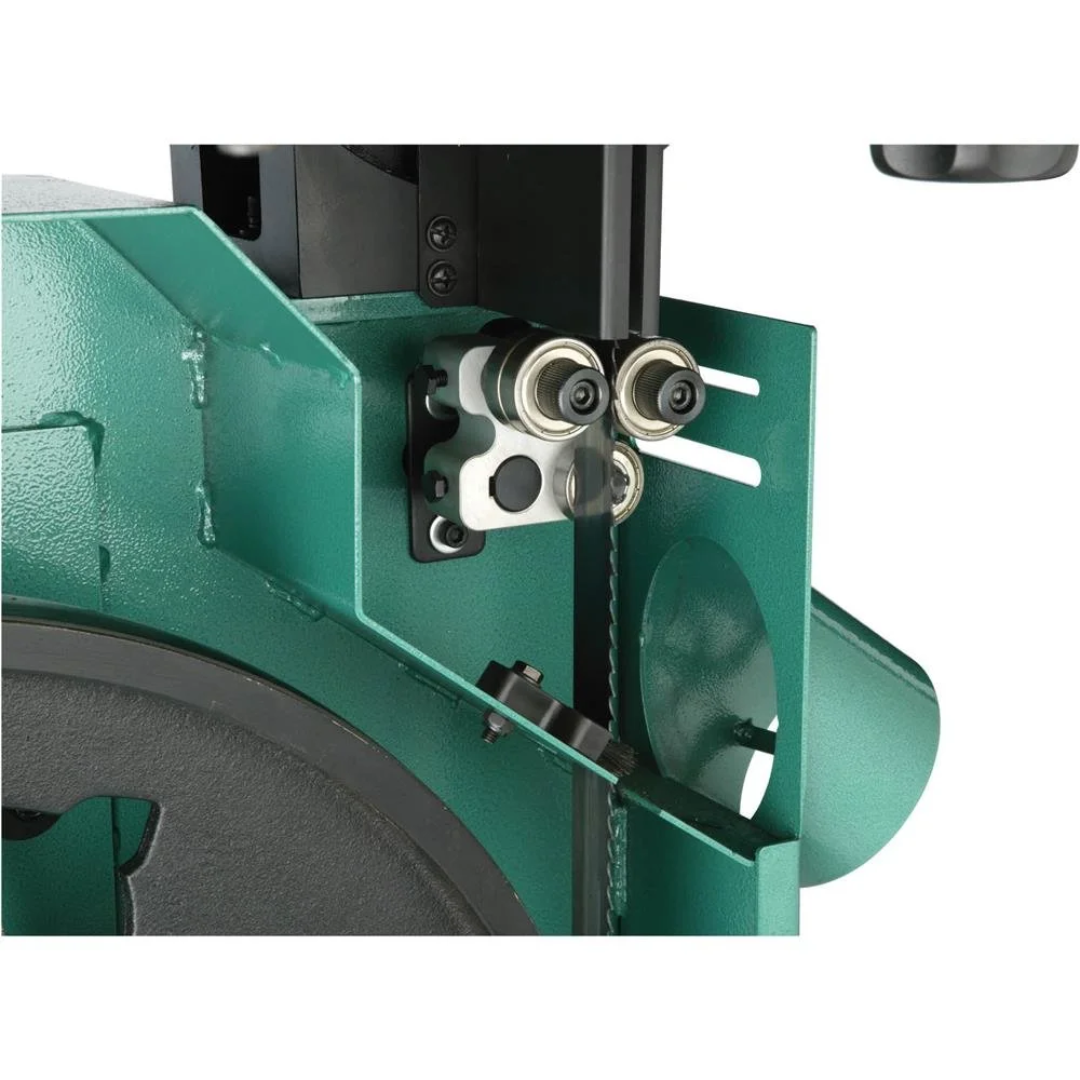

Industrial Blade Guide System

Ball-bearing blade guides provide controlled blade support, while the rack-and-pinion upper guide adjustment allows precise height positioning.

• Ball-bearing blade guides
• Rack-and-pinion upper guide adjustment
• Height adjustment scale
• Blade tracking window
• Quick-release blade tensioning
• Blade tension indicator

Heavy-Duty Fence System

The included cast-iron fence features an extruded-aluminum resaw fence for additional support and versatility during resawing operations.

Fast Motor Stop

The motor is designed to stop in under 3 seconds after the power switch is turned off, providing a convenient shutdown feature for an industrial machine.

Key-Lock Power Switch

The key-lock power switch helps prevent unauthorized operation of the bandsaw.

Specifications

Motor & Electrical

Electrical Note: The G0531B is an industrial machine and does not include a power plug or wiring. The recommended T28429 30A 250V NEMA L6-30 single-phase twist-lock plug is available separately.

Cutting Performance

Work Table

Dimensions & Weight

Blade & Adjustment Features

• Quick-release blade tensioning
• Blade tension indicator
• Blade tracking window
• Ball-bearing blade guides
• Rack-and-pinion upper guide adjustment
• Height adjustment scale
• 4,600 FPM blade speed
• 164 in. – 165-1/2 in. blade length range

Safety & Convenience

The G0531B incorporates several features intended to improve control and ease of operation in a production environment.

• Key-lock power switch
• Motor stops in under 3 seconds after shutdown
• Quick-release blade tensioning
• Blade tension indicator
• Blade tracking window
• Rack-and-pinion guide adjustment
• Rack-and-pinion table tilt

Ideal Applications

The Grizzly G0531B 21 in. Industrial Bandsaw is designed for demanding applications such as:

• Industrial woodworking
• Production woodworking
• Large workpiece cutting
• Heavy-duty resawing
• Hardwood processing
• Lumber preparation
• Furniture manufacturing
• Cabinet and millwork production
• Professional woodworking shops

Important Electrical Information

This industrial bandsaw does not include a power plug or wiring. The machine operates on 230V single-phase power at 22A.

The supplied specifications recommend the T28429 30 Amp 250V NEMA L6-30 single-phase twist-lock plug, which must be purchased separately.

Electrical installation should be completed according to applicable electrical requirements and the manufacturer’s instructions.

Why Choose the Grizzly G0531B?

The Grizzly G0531B is engineered around the demands of industrial production, combining a 5 HP TEFC motor, 20 in. throat capacity, 14-1/2 in. resaw capacity, and a massive cast-iron work table. Its rack-and-pinion table tilt, heavy-duty cast-iron trunnion, computer-balanced wheels, ball-bearing blade guides, and industrial fence system provide the structural support and adjustment capability required for large and demanding woodworking applications.
