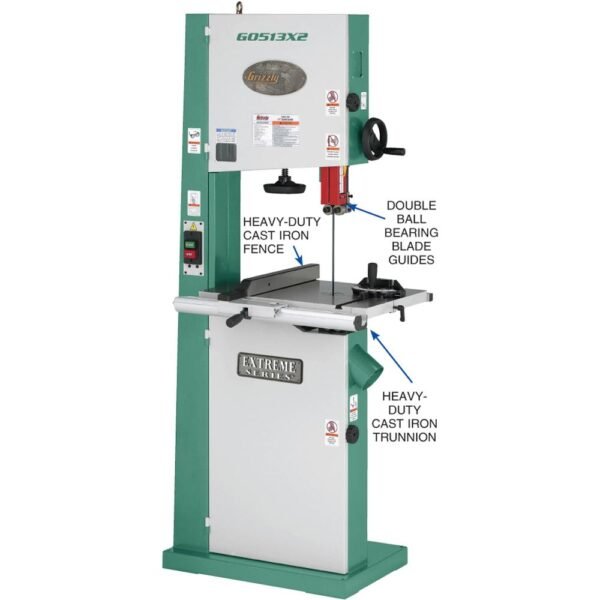

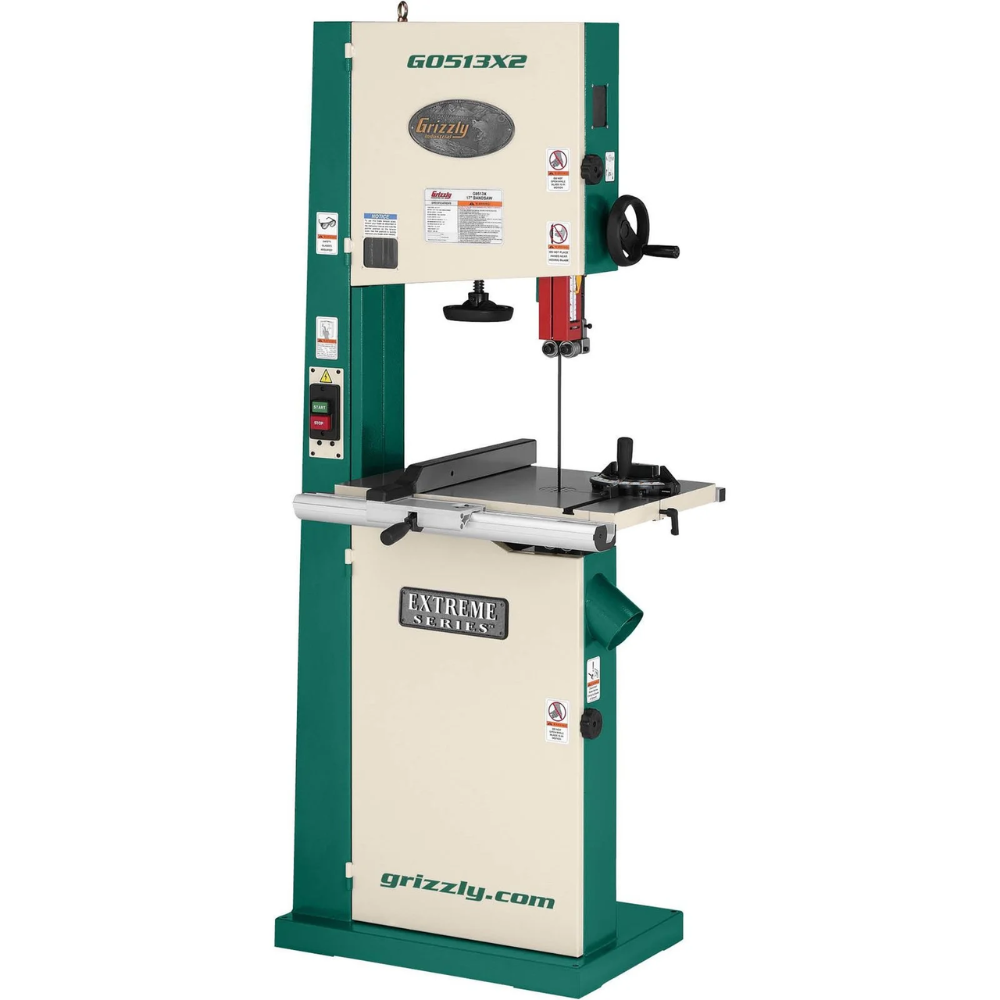

From top to bottom, the Grizzly G0513X2 17 in. Bandsaw is built for serious woodworking performance. Its combination of a powerful 2 HP motor, heavy-duty cast-iron components, computer-balanced cast-iron wheels, and fully enclosed ball-bearing blade guides provides the power, stability, and precision needed for demanding cutting and resawing applications.

With a 16-1/4 in. throat capacity and 12 in. resaw capacity, the G0513X2 offers ample working room for large workpieces. Its large precision-ground cast-iron table tilts from 5° left to 45° right, while the cast-iron fence, extruded-aluminum rail, and resaw fence attachment provide additional control for accurate cuts.

Key Features

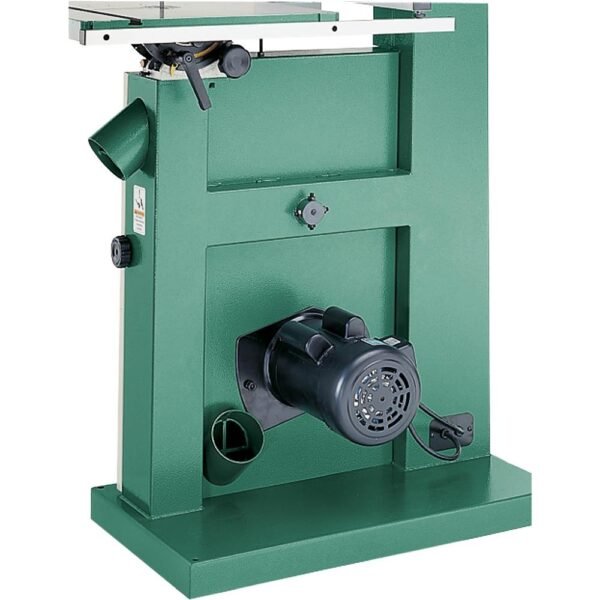

Powerful 2 HP Motor

The 2 HP single-phase motor provides substantial cutting power for hardwoods and demanding resawing operations.

• Motor: 2 HP
• 110V/220V operation
• Prewired for 220V
• Single phase
• 19A at 110V / 9.5A at 220V

Large Cutting Capacity

The G0513X2 provides generous capacity for both general woodworking and larger resawing projects.

• Maximum throat: 16-1/4 in.
• Resaw capacity: 12 in.
• Blade speeds: 1,700 and 3,500 FPM
• Blade length: 131-1/2 in.
• Blade width range: 1/8 in. to 1 in.

Heavy-Duty Cast-Iron Construction

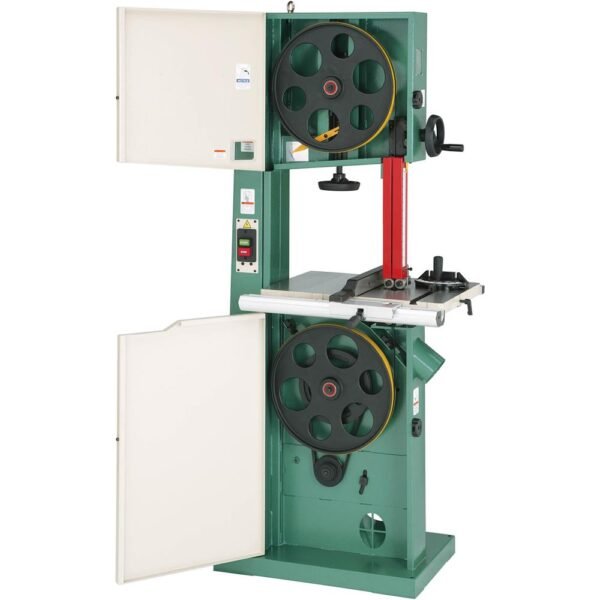

A stout steel frame houses computer-balanced cast-iron wheels designed to help minimize vibration during demanding cutting and resaw operations. Heavy-duty cast-iron trunnions further contribute to the machine’s rigid construction.

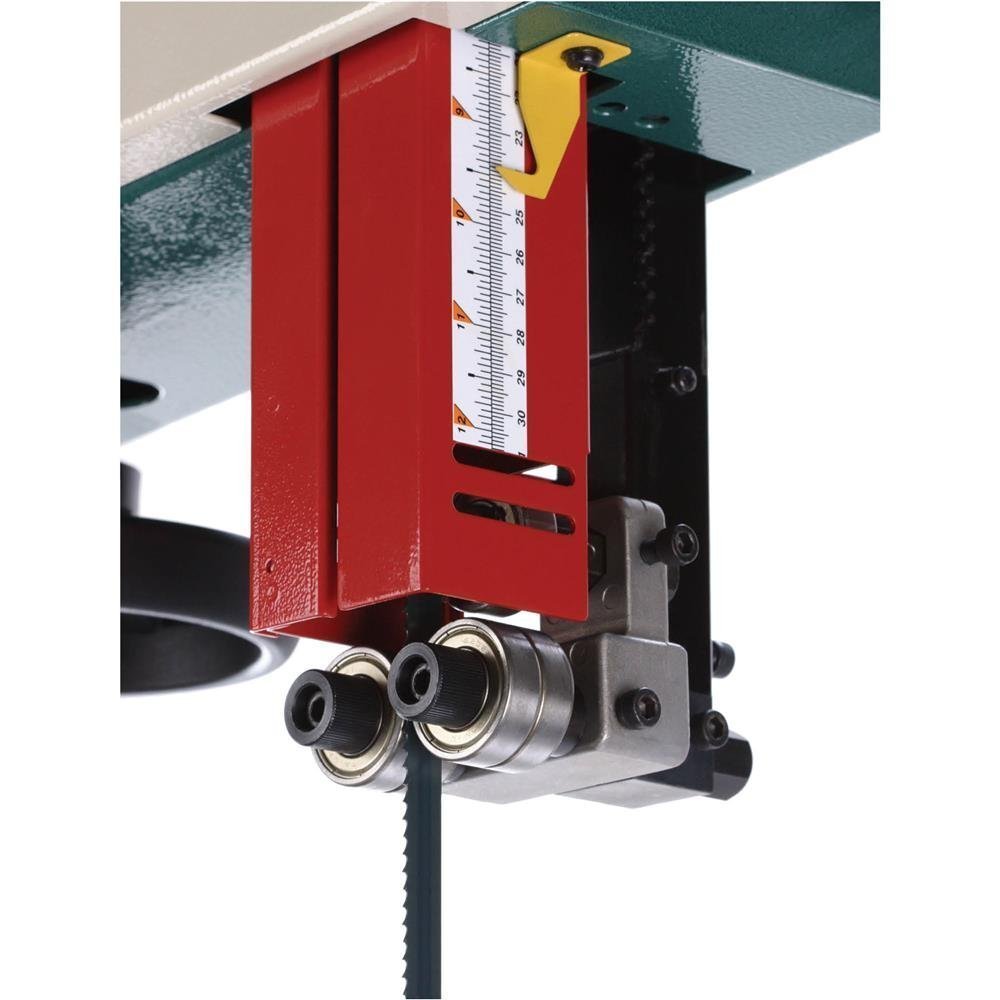

Precision Blade Guides

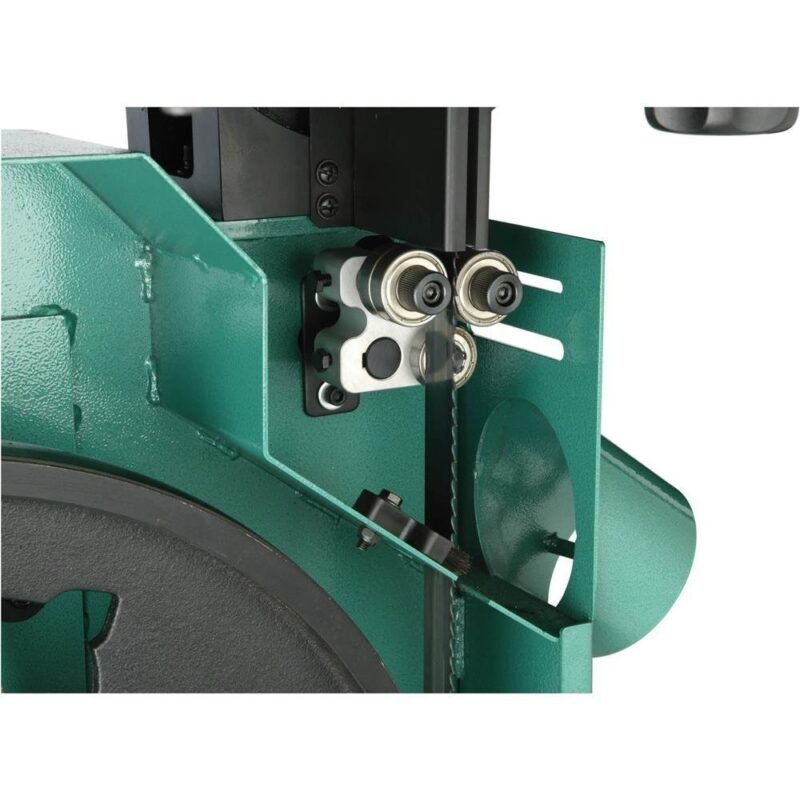

Fully enclosed double ball-bearing blade guides provide controlled blade support and are designed for accurate cutting performance.

• Double ball-bearing blade guides
• Fully enclosed design
• Quick-change blade release/tensioner
• Blade tension indicator
• Blade tracking window
• Blade height scale

Large Precision-Ground Table

The 23-5/8 in. x 17-1/4 in. cast-iron table provides a substantial work surface and can be angled for bevel cutting.

• Precision-ground cast-iron surface
• 5° left tilt
• 45° right tilt
• Floor-to-table height: 37-1/2 in.

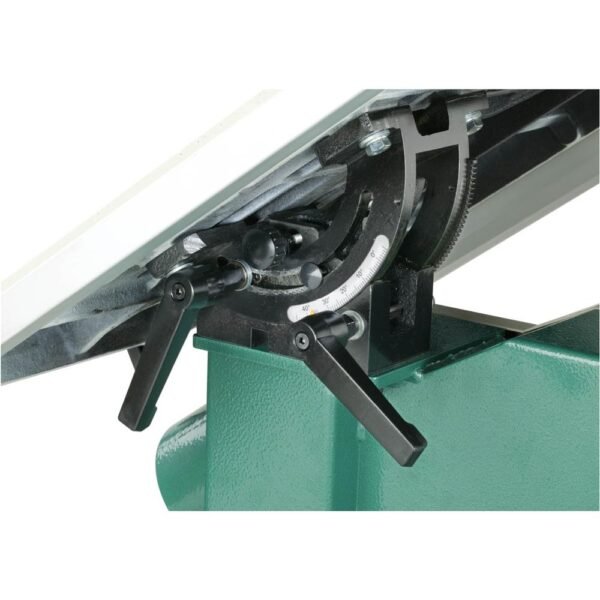

• Micro-adjusting geared table mechanism
• Heavy-duty cast-iron trunnions

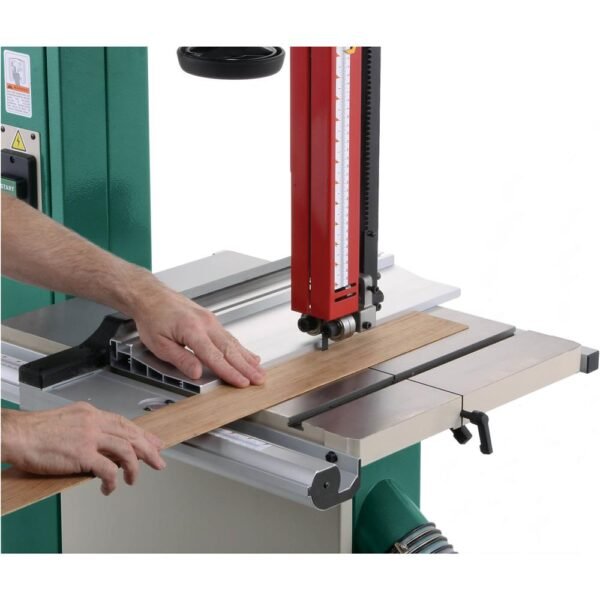

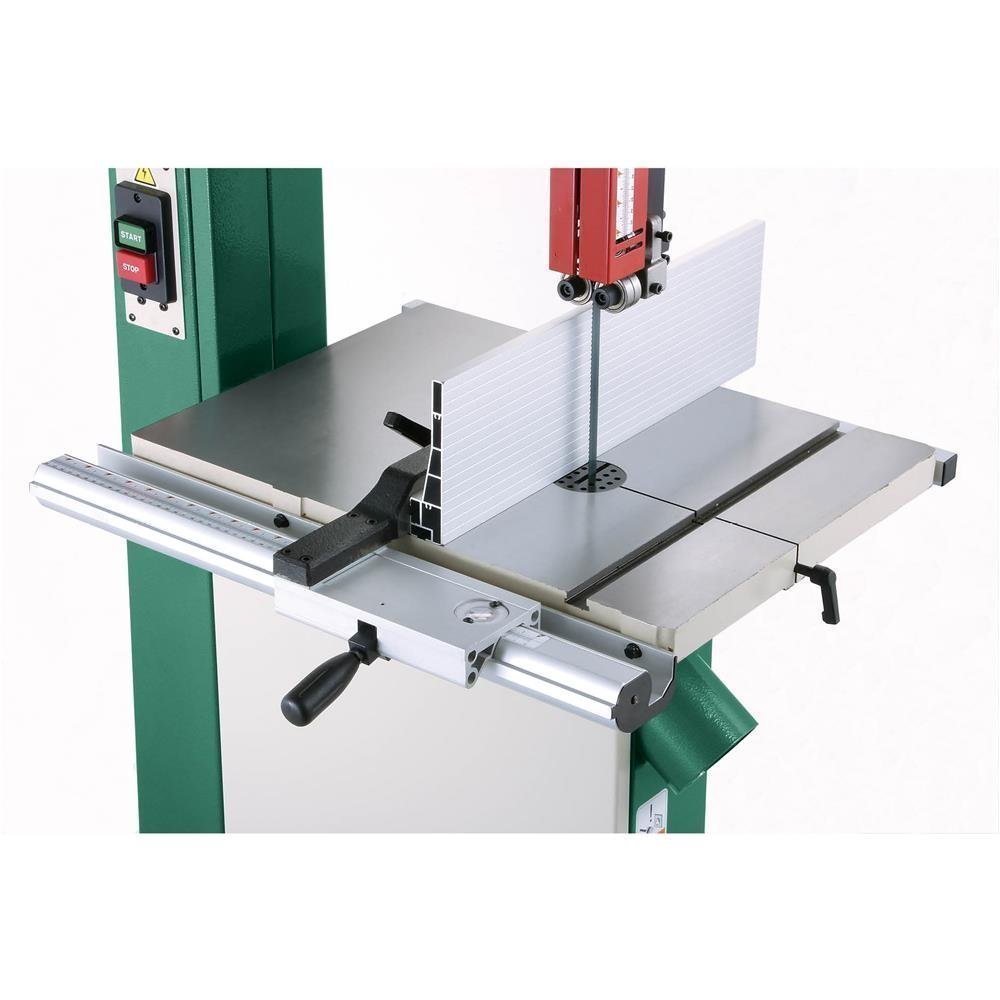

Deluxe Fence System

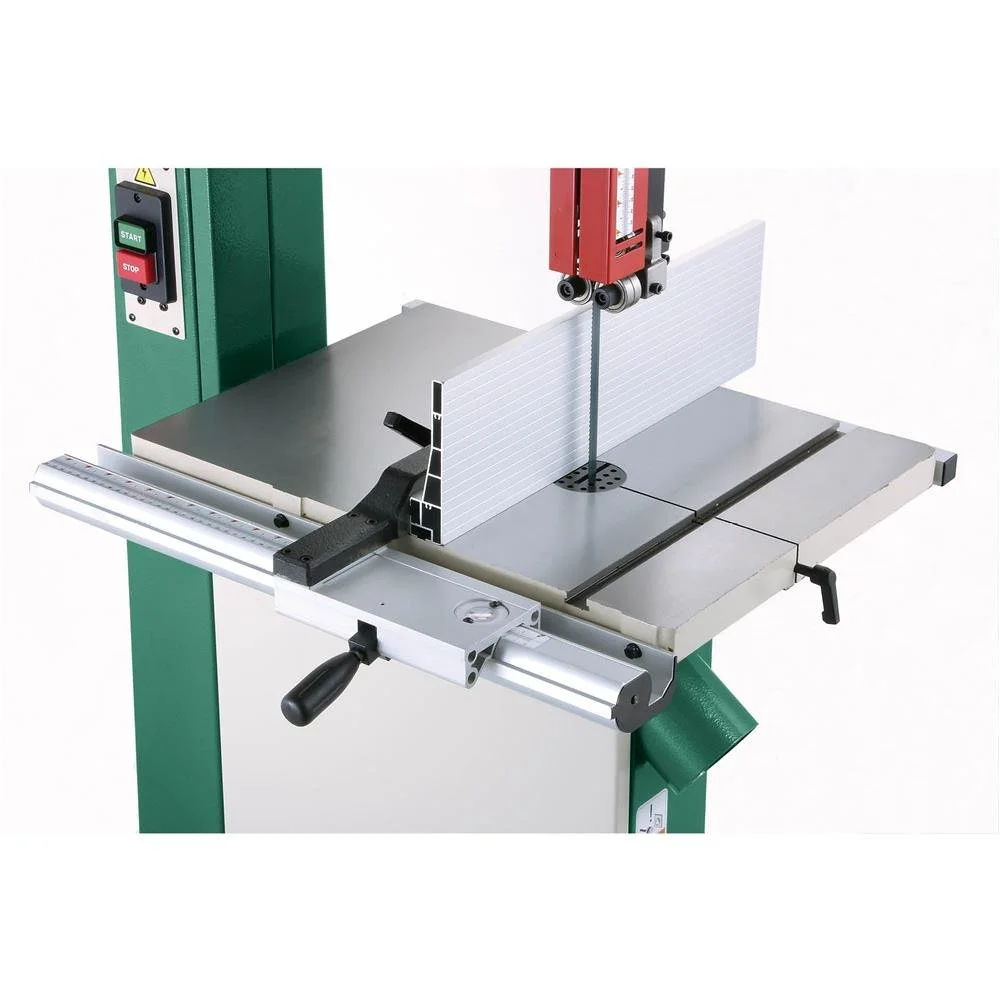

The included cast-iron fence features an extruded-aluminum rail and a resaw fence attachment for greater versatility during straight and resaw cuts.

• Cast-iron fence
• Extruded-aluminum rail
• Resaw fence attachment
• Magnifying window over fence scale

Dual Blade Speeds

Two selectable blade speeds allow the machine to accommodate different woodworking requirements.

• 1,700 FPM
• 3,500 FPM

Convenient Blade Adjustment

The G0513X2 incorporates several features designed to simplify blade installation, tensioning, tracking, and height adjustment.

• Quick-change blade release/tensioner
• Blade tension indicator
• Blade tracking window
• Blade height scale
• Easy-to-read adjustment features

Included Miter Gauge

A miter gauge is included for controlled crosscutting and angled work.

Included 1/2 in. Blade

The bandsaw includes a 1/2 in., 6-TPI hook blade, allowing the machine to be put to work after setup.

Specifications

Motor & Electrical

Electrical Note: The machine is prewired for operation on a 220V power supply circuit with a verified ground. If 110V operation is preferred, the voltage can be converted according to the instructions in the owner’s manual.

Cutting Capacity

Work Table

Dimensions & Weight

Included Features & Accessories

• 1/2 in., 6-TPI hook blade
• Deluxe cast-iron fence
• Extruded-aluminum fence rail
• Resaw fence attachment
• Miter gauge
• Fully enclosed ball-bearing blade guides
• Quick-change blade release/tensioner
• Blade tension indicator
• Blade tracking window
• Blade height scale
• Magnifying fence-scale window
• Precision-ground cast-iron table
• Micro-adjusting geared table
• Cast-iron table trunnions

Construction & Durability

The G0513X2 is engineered around a rigid steel frame and heavy cast-iron components. Computer-balanced cast-iron wheels are designed to minimize vibration, particularly during resawing, while the heavy-duty cast-iron trunnions provide a solid foundation for the work table.

The machine is manufactured in an ISO 9001-certified factory and is CSA certified.

Owner’s Manual & Maintenance

The included manual is prepared by a U.S.-based Technical Documentation Department and provides detailed instructions for assembly, operation, maintenance, and adjustment. Its easy-to-read format is designed to help users properly set up and maintain the bandsaw.

Ideal Applications

The Grizzly G0513X2 is well suited for:

• General woodworking
• Hardwood cutting
• Large workpiece cutting
• Resawing lumber
• Veneer preparation
• Straight and curved cuts
• Bevel cutting
• Furniture and cabinet work
• Workshop and professional woodworking applications

Warranty

Manufacturer Warranty: 1-Year Limited Warranty

Important Electrical Note

The G0513X2 does not include a power plug. The recommended plug types are:

• 110V: L5-30
• 220V: 6-15

The machine should be connected to an appropriate power supply circuit with a verified ground and operated according to the electrical requirements in the owner’s manual.

Why Choose the Grizzly G0513X2?

The Grizzly G0513X2 combines substantial cutting capacity with heavy-duty cast-iron construction and a powerful 2 HP motor. Its 16-1/4 in. throat, 12 in. resaw capacity, dual blade speeds, precision-ground table, enclosed ball-bearing guides, and versatile fence system make it a capable choice for demanding woodworking and resawing applications. The rigid steel frame and computer-balanced cast-iron wheels further support stable, controlled operation.
